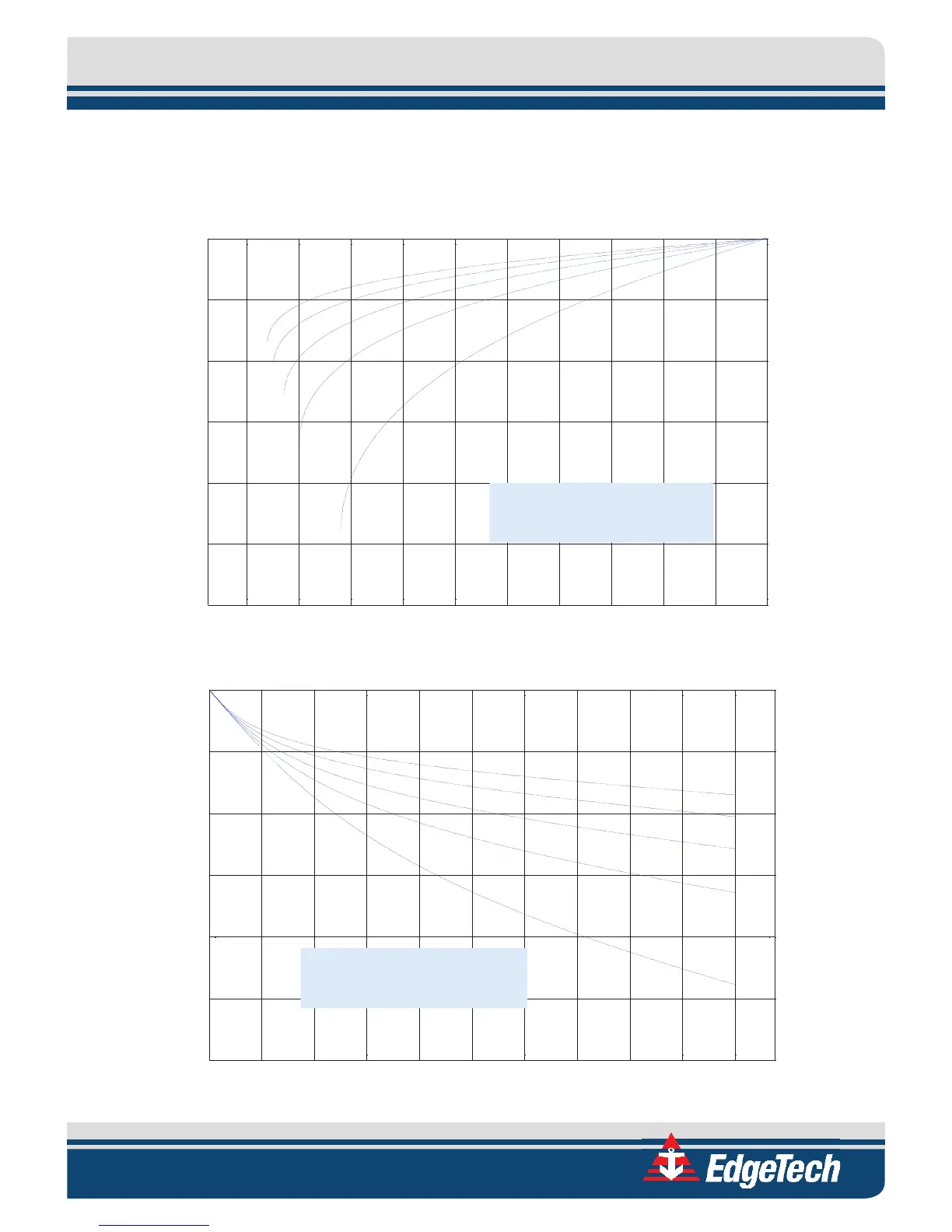

Config. 15: 4125 + 15 lb. Keel Wt. + Depressor Wing, 23080 Cable -
200m
-200 -180 -160 -140 -120 -100 -80 -60
-40 -20 0
-120
-100
-80
-60
-40
-20
0
Tow Cable Shape & Tow Fish Position
Position Aft of Tow Vessel (m)
Depth (m)
2 kts
6 kts
5 kts
4 kts
3 kts
Kevlar Tow Cable - p/n 23080,
Length - 200m
Tow Fish - 4125 Telemetry + 15 lbf Wt
+ Depressor
0 20 40 60 80 100 120 140 160 180 200
-120
-100
-80
-60
-40
-20
0
Tow Cable Length vs Depth
Cable Length (m)
Depth (m)
2 kts
3 kts
4 kts
5 kts
6 kts
Kevlar Tow Cable - p/n 23080,
Length - 200m
Tow Fish - 4125 Telemetry + 15 lbf Wt
+ Depressor
