Edgetech 4125 SIDE SCAN - Page 127

C-45
C
C.2.27
Config. 27: 4125 + Depressor Wing, A304874 Cable - 200m Long
-200 -180 -160 -140 -120 -100 -80 -60 -40 -20 0
-140
-120
-100
-80
-60
-40
-20
0

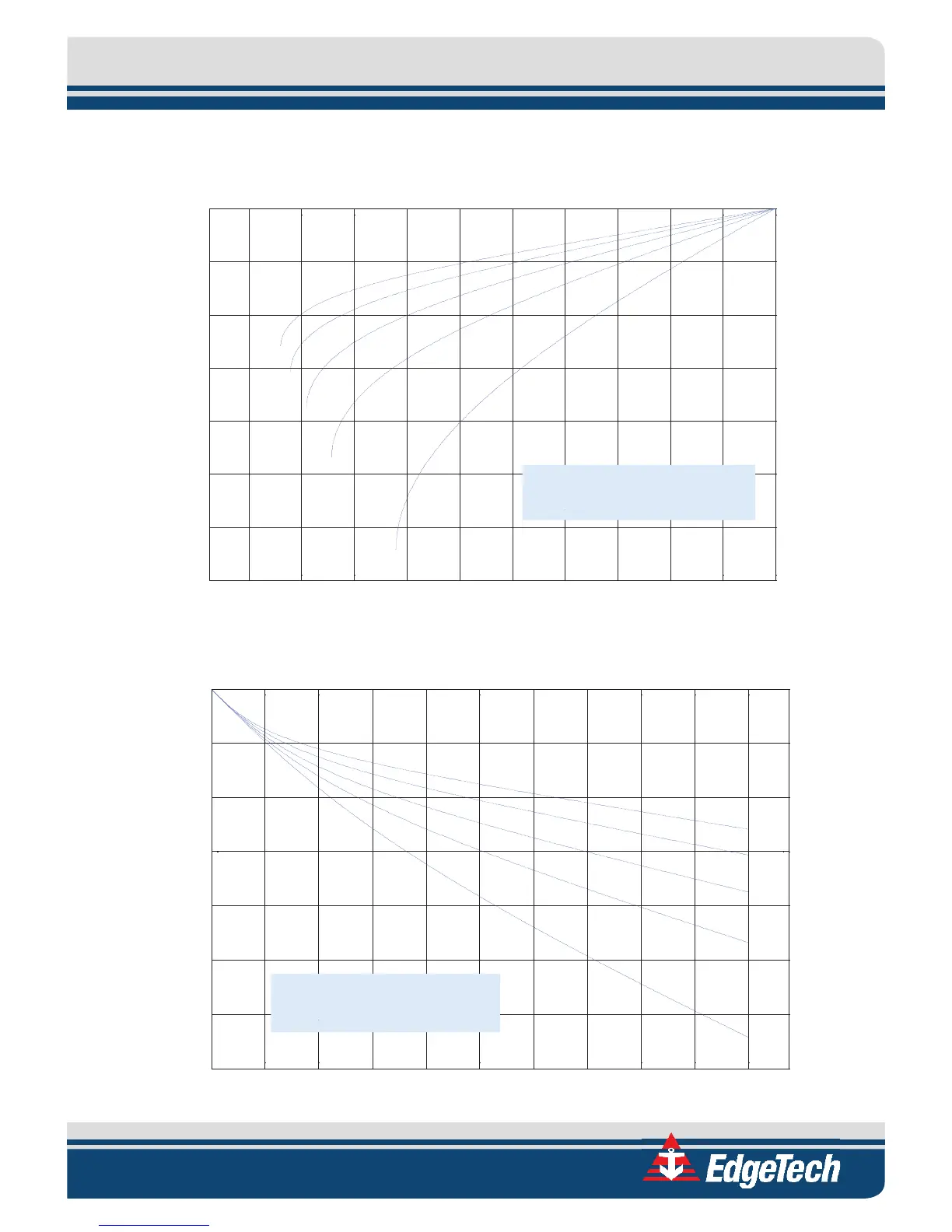

Tow Cable Shape & Tow Fish Position
Position Aft of Tow Vessel (m)
Depth (m)
2 kts
3 kts
4 kts
5 kts
6 kts
Tow Cable - p/n A304874,
Length - 200m
Tow Fish - 4125 Telemetry + Depressor
0 20 40 60 80 100 120 140 160 180 200
-140
-120
-100
-80
-60
-40
-20
0
Tow Cable Length vs Depth
Cable Length (m)
Depth (m)
Tow Cable - p/n A304874,
Length - 200m
Tow Fish - 4125 Telemetry + Depressor
6 kts
5 kts
4 kts
3 kts
2 kts
