Positioning the pellet fire
1 If possible position the fire in a room that is centrally
located in the home and direct the fire so that it blows hot
air into the living area first then forces the air out into the
rest of the house.
Avoid positioning the fire close to your TV or sitting area
so as not to be distracted by any fan noise. Unlike a
conventional wood fire you do not need to be close to
a pellet fire; they act more like central heating systems
pushing warm air throughout the house.
2 Check clearances to combustible materials, refer to chart
and drawings on page 9.
3 Ensure a power outlet is within 1.5 metres.
4 Check the vent pipe will clear structural beams, trusses or
studs.
5 Check that curtains cannot come in contact with the pellet
fire.
combustibles.
If the vent pipe is to be installed through the ceiling, use
the Metro Ceiling Vent Kit. Insert the condensation tee into
the 80mm outlet at the rear of the pellet fire. Assemble
and fit the vent system to the pellet fire as per instructions
supplied with the vent kit.
If the vent is to exit through the rear wall use the Metro
Through Wall Vent Kit, the condensation tee is located
outside.
panels (Iris Plus only) position the pellet fire in the desired
9 Once you are satisfied you have the pellet fire in its final
8mm holes provided at the centre of the pellet fire base.

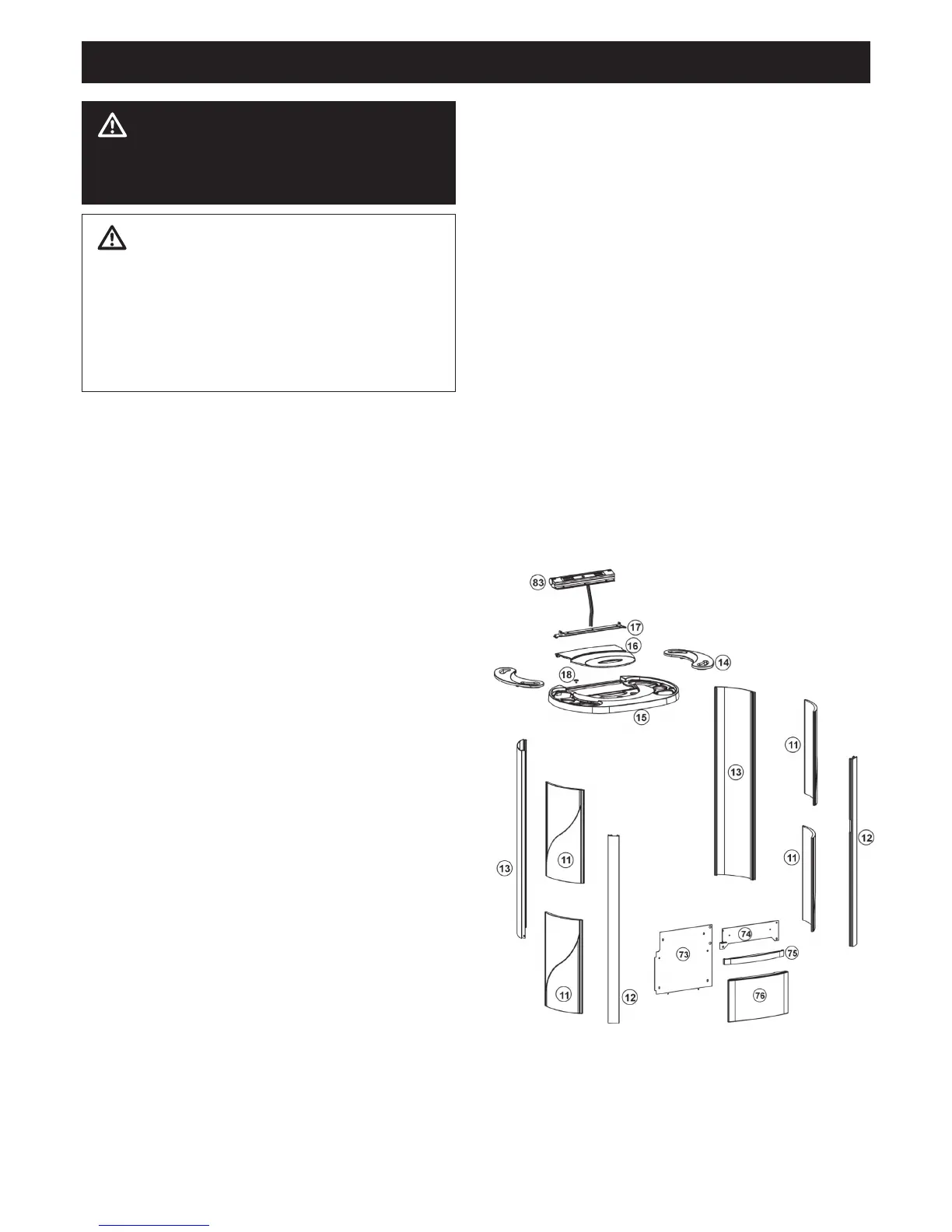

Then proceed as follows in the order shown (Iris Plus only):
the 2 rear panel screws;
enough to insert the two side tiles (11) into the aluminium
bars (12-13); Take care not to damage the data cable on
the rear display;
tiles (11) into the aluminium bars (10-13);
previously removed screws;
If combustion air is drawn from outside the home, ensure that
a suitable grill and wind protector is fitted as wind gusts will
upset the combustion sensors, the Metro Direct Vent Kits are
suitable for this.
Check for compatibility with other devices
extractor fans or any other devices that could reduce the
pressure in the room.
Assembly and Installation of your Pellet Fire (Iris Plus & Little models)
• ALLVENTPIPEJOINTSMUSTBERIVETEDAND
SEALEDWITHHIGHTEMPERATURESILICONE.
DONOTUSEFIRECEMENT!
WARNING!Important Information
• MIXINGOFAPPLIANCEORFLUESYSTEM
COMPONENTSFROMDIFFERENTSOURCES
ORMODIFYINGTHEDIMENSIONAL
SPECIFICATIONOFCOMPONENTSMAY
RESULTINHAZARDOUSCONDITIONS.
WHERESUCHACTIONISCONSIDERED,THE
MANUFACTURERSHOULDBECONSULTEDIN
THEFIRSTINSTANCE.
