page 7
A: Stainless steel vent
B: Air intake (minimum internal section 50mm diameter)
Although EdilKamin pellet fires have been tested and
approved for 100mm side wall and 200mm rear wall
clearance. We recommend sufficient space be provided
(minimum 200mm) on each side of the pellet fire to service the
unit. If this is not possible, provision must be made available to
remove the unit for servicing.

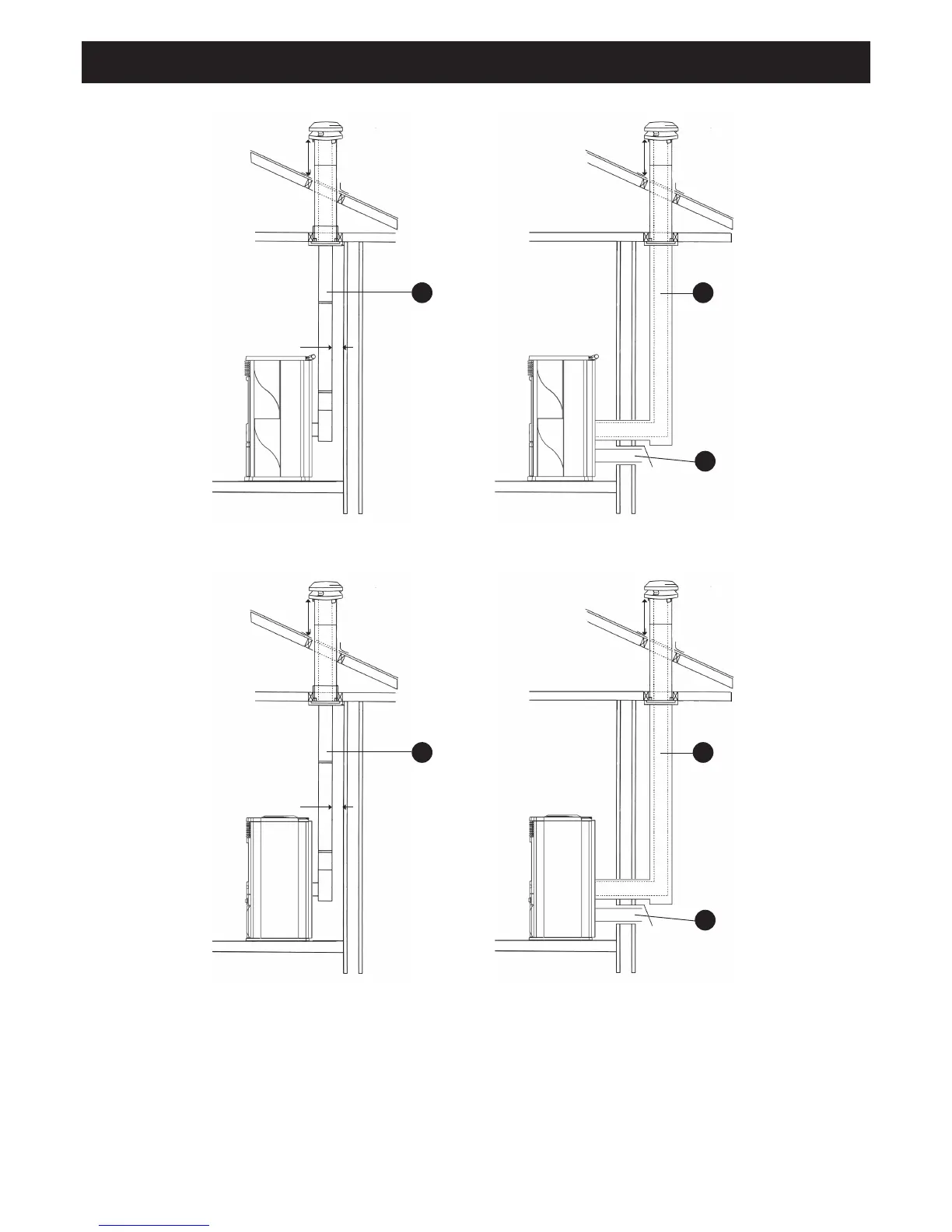

Pellet Fire Vent System (Iris Plus & Little models)
IRIS PLUS - FIGURE 2
LITTLE - FIGURE 2
IRIS PLUS - FIGURE 1
LITTLE - FIGURE 1
600mm
minimum
a
B
a
a
B
a
600mm
minimum
600mm
minimum
600mm
minimum
