7
2‐1NetworkCardInstallation
Please follow the following instructions to install your new wireless
network card:

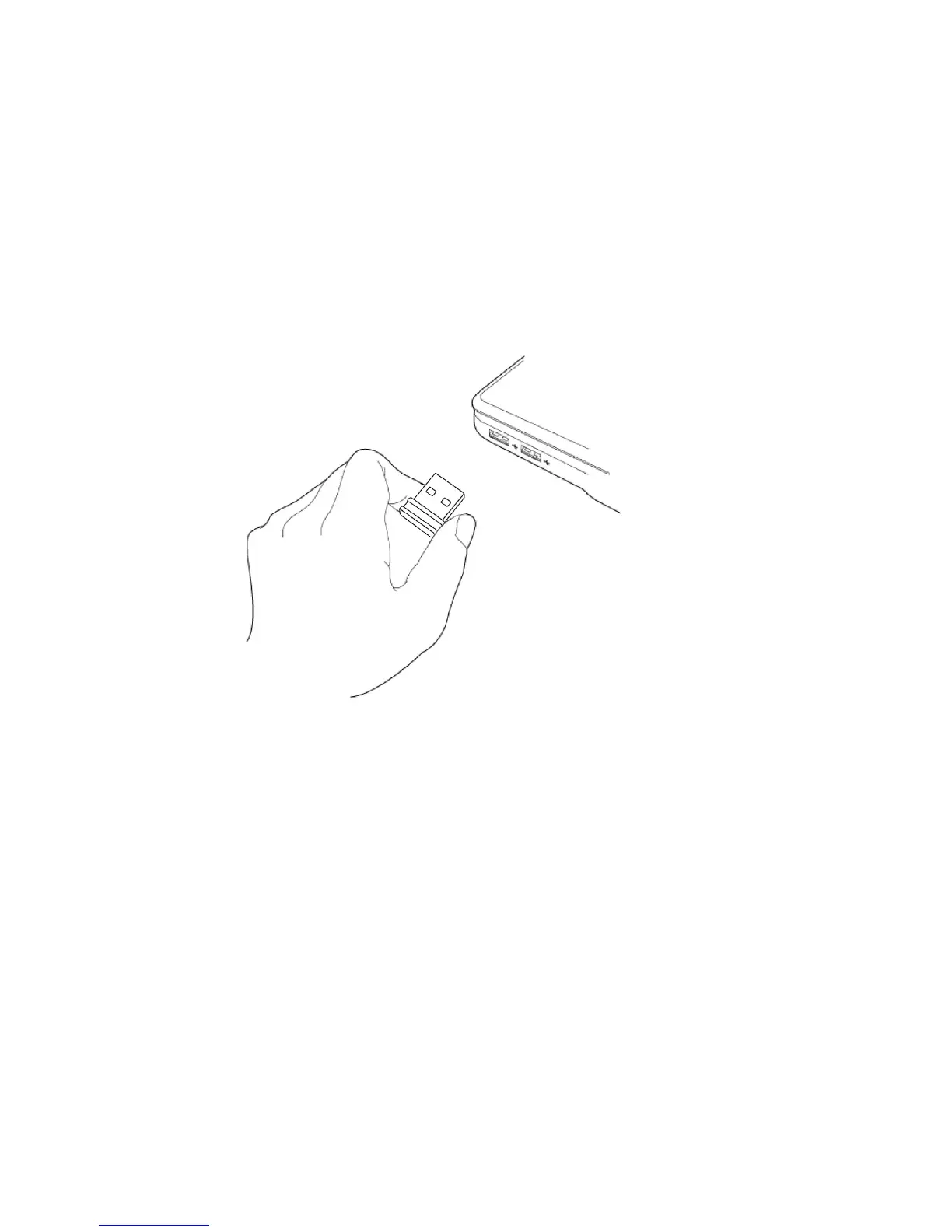

1. Insert the USB wireless network card into an empty USB 2.0 port of
your computer when computer is switched on. Never use force to
insert the card, if you feel it’s stuck, flip the card over and try again.

Other manuals for Edimax EW-7811UN

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Edimax EW-7811UN and is the answer not in the manual?

Edimax EW-7811UN Specifications

General IconGeneral
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Ethernet LANNo
Frequency range2.4 - 2.4835 GHz
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
Security algorithms128-bit WEP, 64-bit WEP, WPA2
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate150 Mbit/s
WLAN data transfer rates supported1, 2, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150 Mbit/s
InterfaceWLAN
Connectivity technologyWireless
Chipset-
CertificationCE, FCC, WiFi
Product colorBlack, Gold
LED indicatorsActivity, Link
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth7.1 mm
Width14.9 mm
Height18.5 mm
