Edimax EW-7811UN User Manual

29

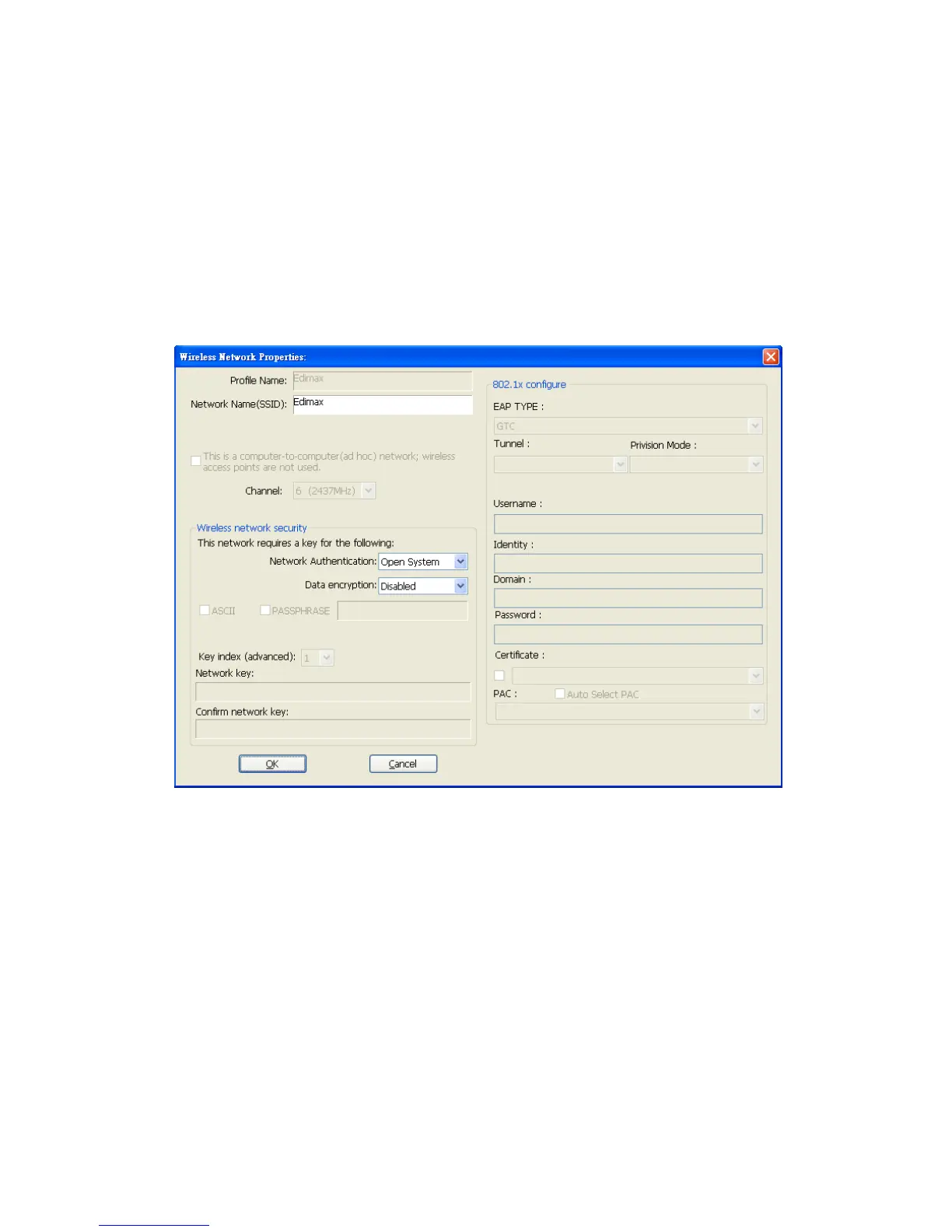

2‐3‐3Editanexistingprofile
If you have added a profile before, and you wish to change the content of
the profile, you can use this function. Please select a profile from the list
first, then click ‘Edit’ button. You’ll be provided with the contents of
selected profile, and you can edit them. Click ‘OK’ to save changes, or
click ‘Cancel’ to discard changes.

Edimax EW-7811UN Specifications

General

Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Ethernet LAN	No
Frequency range	2.4 - 2.4835 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
WLAN data transfer rates supported	1, 2, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150 Mbit/s
Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Certification	CE, FCC, WiFi
Product color	Black, Gold
LED indicators	Activity, Link
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	7.1 mm
Width	14.9 mm
Height	18.5 mm
