Edimax EW-7811UN User Manual

24
2‐3ConnectionProfileManagement
If you need to connect to different wireless access points at different time,
like of access point of your home, office, cybercafe, or public wireless
service, you can store the connection parameters (encryption, passphrase,
security etc, etc.) as a profile for every access point, so you don’t have to
input these parameters every time when you want to connect to a specific
wireless access point.

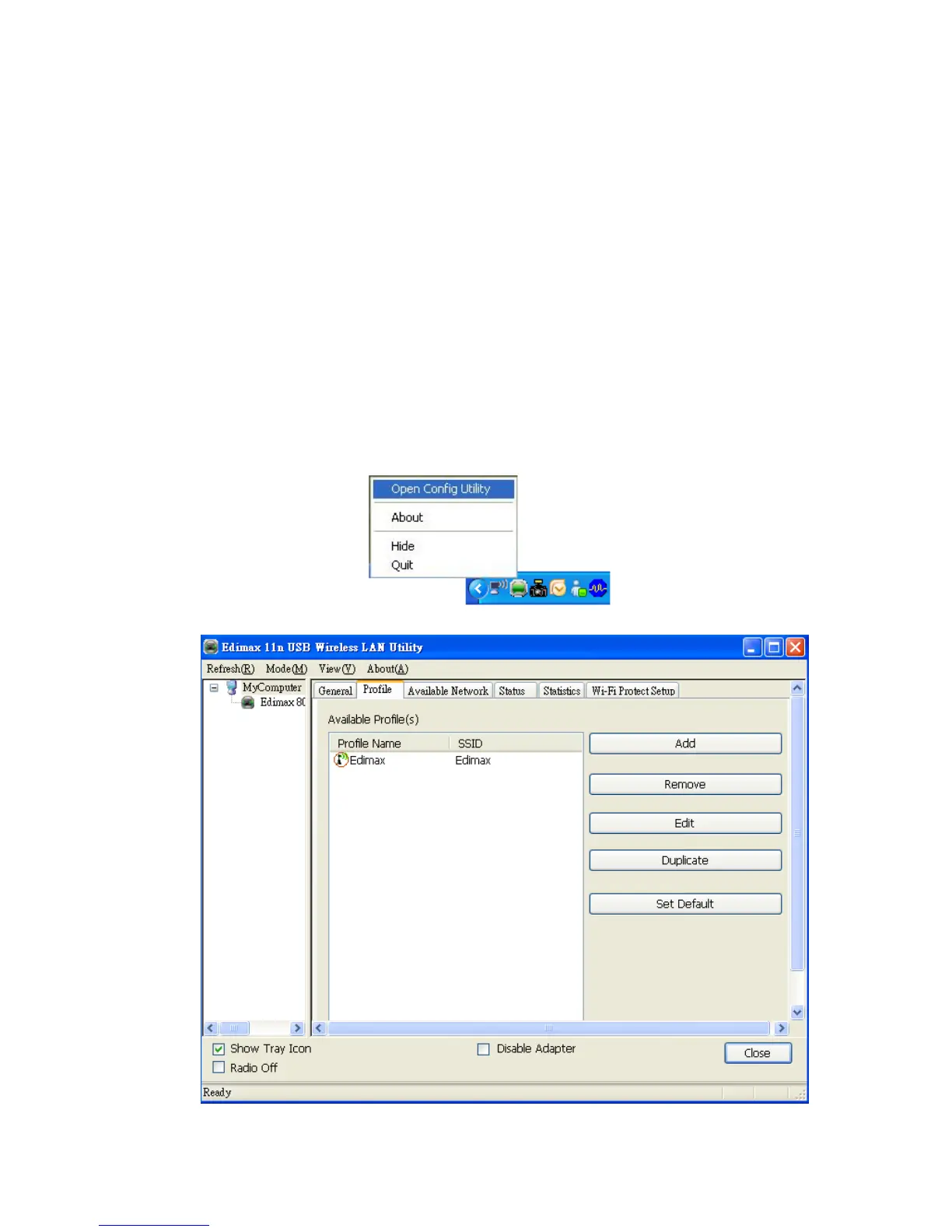

To manage profiles, right-click the Edimax configuration utility icon
located at lower-right corner of computer desktop, then click ‘Open
Config Utility’.
Click the ‘Profile’ menu.

Edimax EW-7811UN Specifications

General

Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Ethernet LAN	No
Frequency range	2.4 - 2.4835 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
WLAN data transfer rates supported	1, 2, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150 Mbit/s
Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Certification	CE, FCC, WiFi
Product color	Black, Gold
LED indicators	Activity, Link
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	7.1 mm
Width	14.9 mm
Height	18.5 mm
