Edimax EW-7811UN User Manual

53

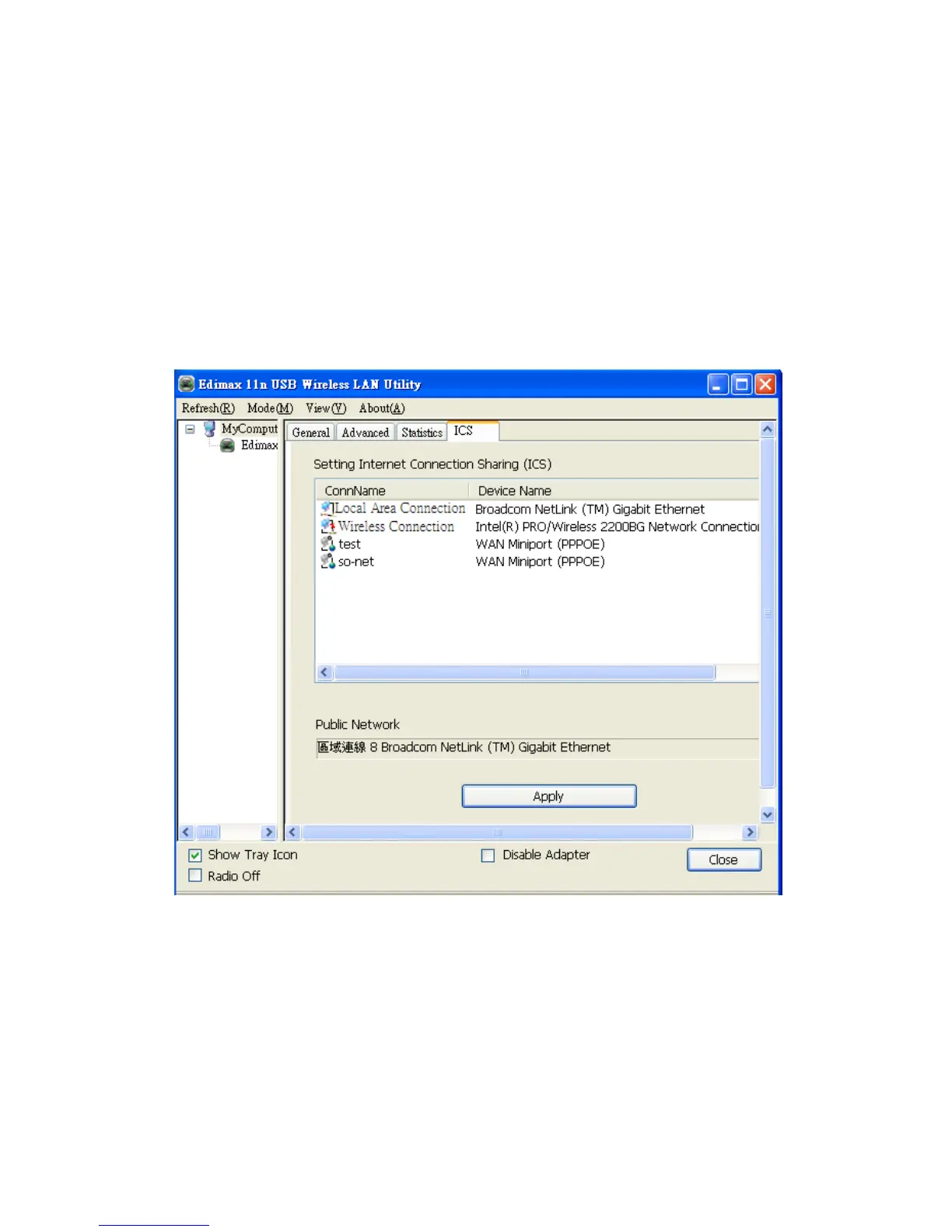

3‐4InternetConnectionSharing(ICS)
In this page, you can assign a network card on your computer as the path
for all wireless clients to get connected to Internet.
If you have only one network card (except this software access point),
you don’t have to select network card here; if you have more than one
network card, select the one you wish to be used as Internet gateway.
Click ‘Apply’ to save changes (‘Apply’ is grayed out when no changes
are made in this page).

Edimax EW-7811UN Specifications

General

Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Ethernet LAN	No
Frequency range	2.4 - 2.4835 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
WLAN data transfer rates supported	1, 2, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150 Mbit/s
Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Certification	CE, FCC, WiFi
Product color	Black, Gold
LED indicators	Activity, Link
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	7.1 mm
Width	14.9 mm
Height	18.5 mm
