Edimax EW-7811UN User Manual

13
2‐2ConnecttoWirelessAccessPoint
To use wireless network, you have to connect to a wireless access point
first. You can either use Edimax utility (comes with network card driver),
or Windows Zero Config utility (comes with Windows operating system).
2‐2‐1UsingEdimaxUtility
Please follow the following instructions to use Edimax configuration
utility to connect to wireless access point.

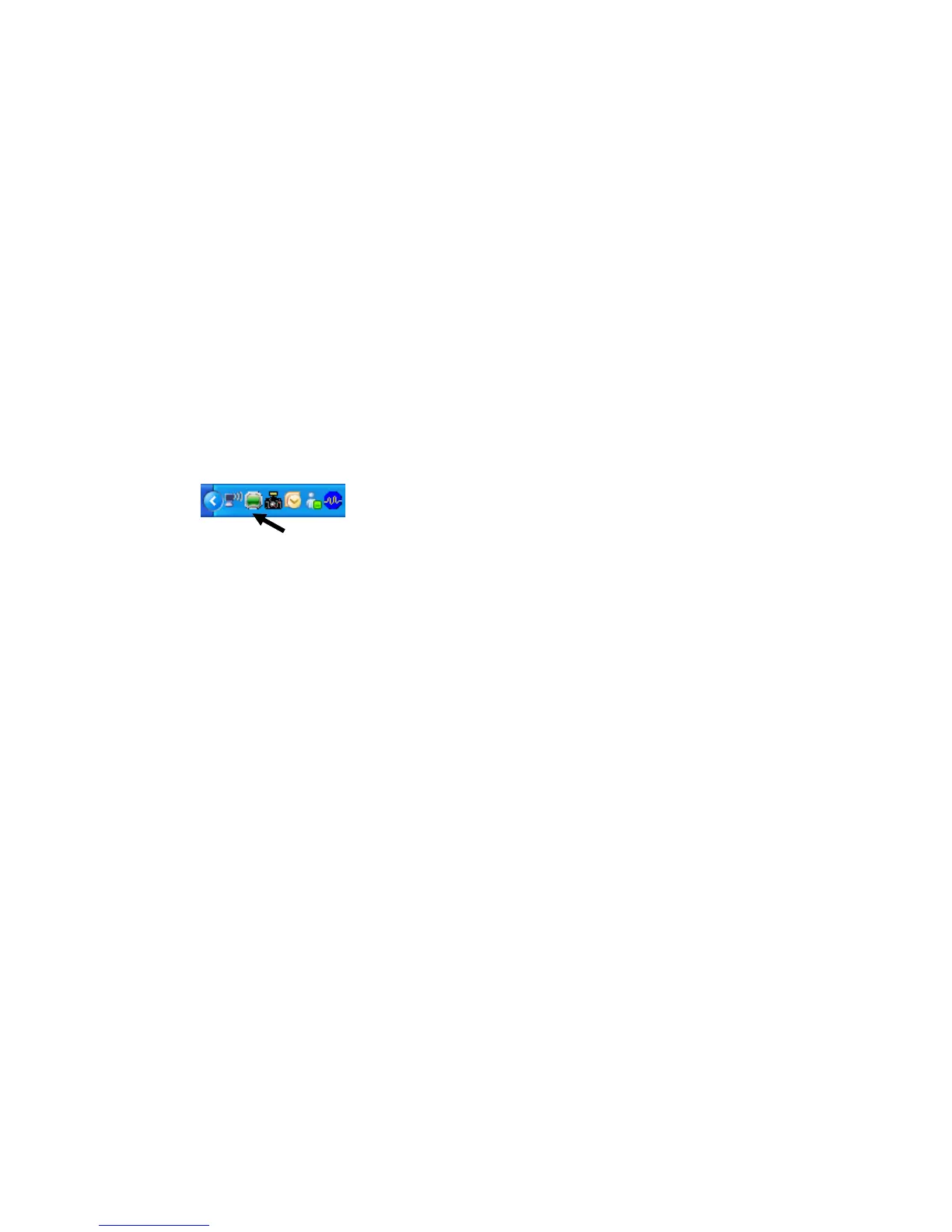

1. Left-click the Edimax configuration utility icon located at lower-right
corner of computer desktop, and configuration menu will appear:
HERE!

Edimax EW-7811UN Specifications

General

Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Ethernet LAN	No
Frequency range	2.4 - 2.4835 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
WLAN data transfer rates supported	1, 2, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150 Mbit/s
Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Certification	CE, FCC, WiFi
Product color	Black, Gold
LED indicators	Activity, Link
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	7.1 mm
Width	14.9 mm
Height	18.5 mm
