Edision HDMI Modulator single DVB-T - Rear Panel Connections; RF Input;Output Terminals; LTE Switch, USB, and HDMI Ports; DC Power Input

3

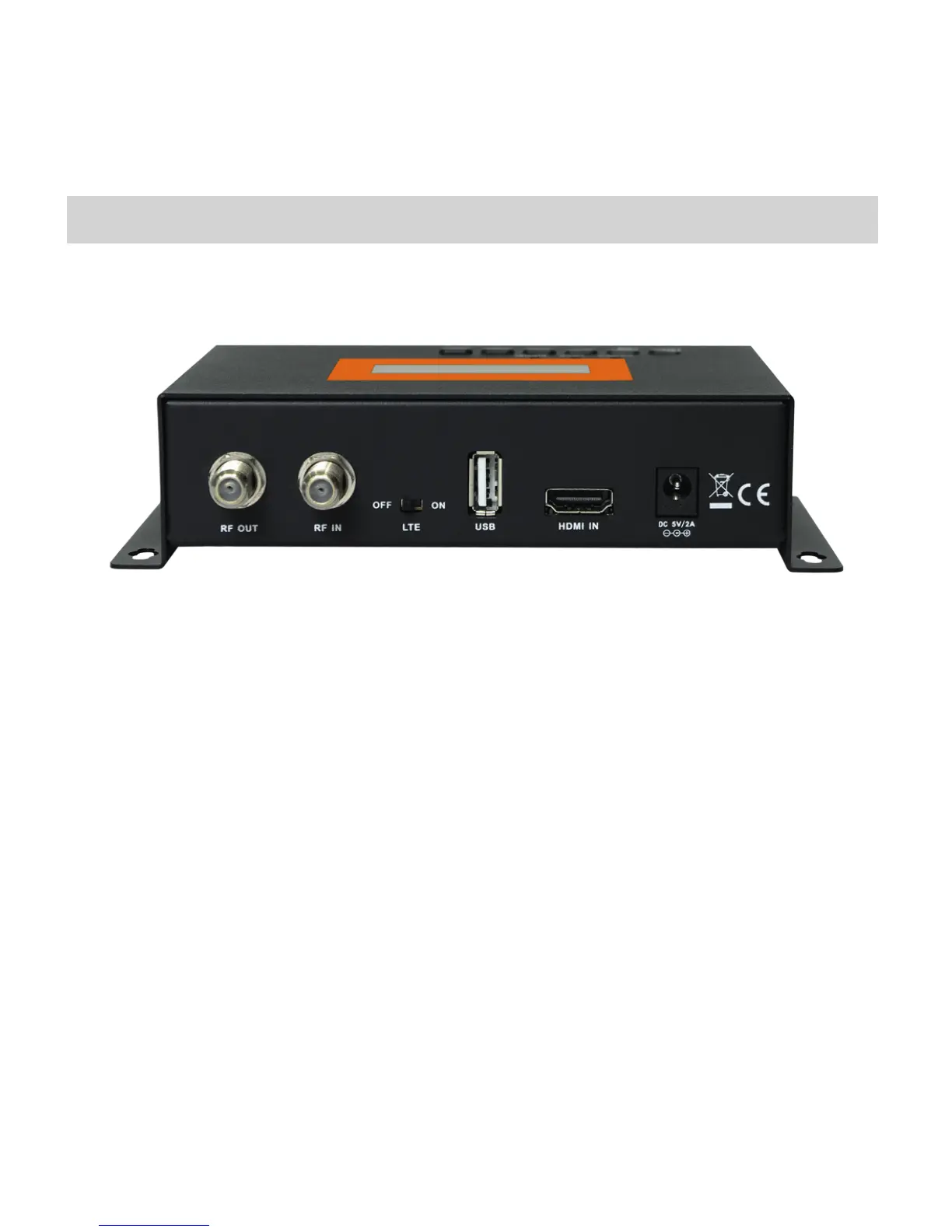

1. Rear Panel
1.RF OUT: RF output terminal. For mix with RF IN signal.
2.RF IN : connection of IN signal.
3.LTE switch: To switch 4G LTE signal Filter ON/OFF. “ON” > LTE signal is
filtered.“OFF”>LTEsignalNOTfiltered.
4.USB : USB 2.0 , connect to USB for software upgrade or configuration data
backup.
5.HDMI: HDMI Input signal.
6.DC 12V: For connection of an external 12V adapter.
