Edision HDMI Modulator Xtend - Main Menu

9

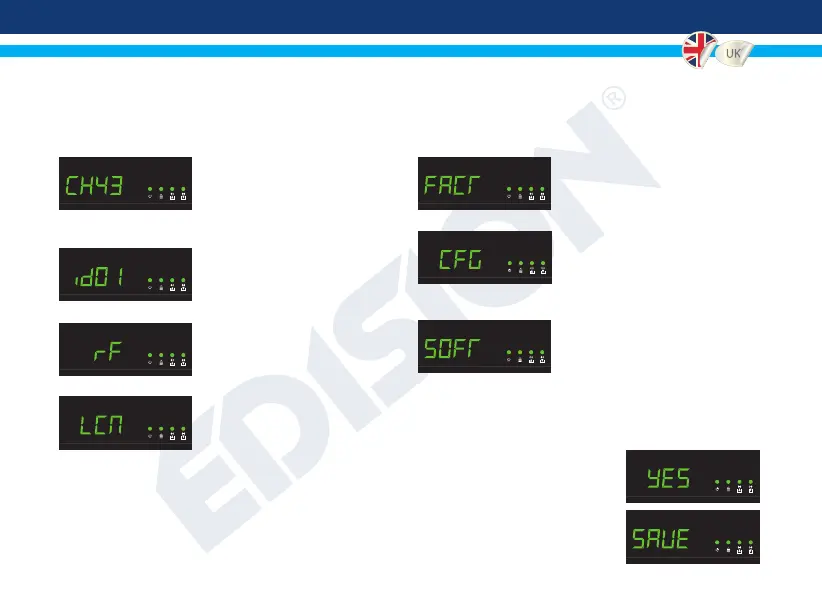

CH: Shows the current RF
channel output. Use the keys
Up & Down to select the desired
RF channel output.
ID: Shows the current ID. Use
the keys Up & Down to set the
desired ID.
RF: Shows the RF output level.
Use the keys Up & Down to
adjust to the desired RF level.
LCN: Shows the current LCN
type. Use the keys Up & Down
to set the desired LCN type.
FACT: Factory defaults. Press
key UP to restore factory
defaults.
CFG: Conguration extract.
Press key UP to extract the
current conguration to the USB
storage device.
SOFT: Shows the SW version.
Use the key UP to display the
current SW version.
►MAIN MENU
To enter the main menu options, press once the Menu/OK key and use the Left or Right
keys to navigate within the main menu.
To save the selected conguration press once the MENU/OK key and conrm
with YES or NO by pressing the LEFT and RIGHT keys and press MENU/OK
key once again. The conguration is being saved, please do not power off!
