Edision Piccollino - Device Description; Front Panel; Back Panel; Connecting and Switching On

Version of 26 April 2016
7

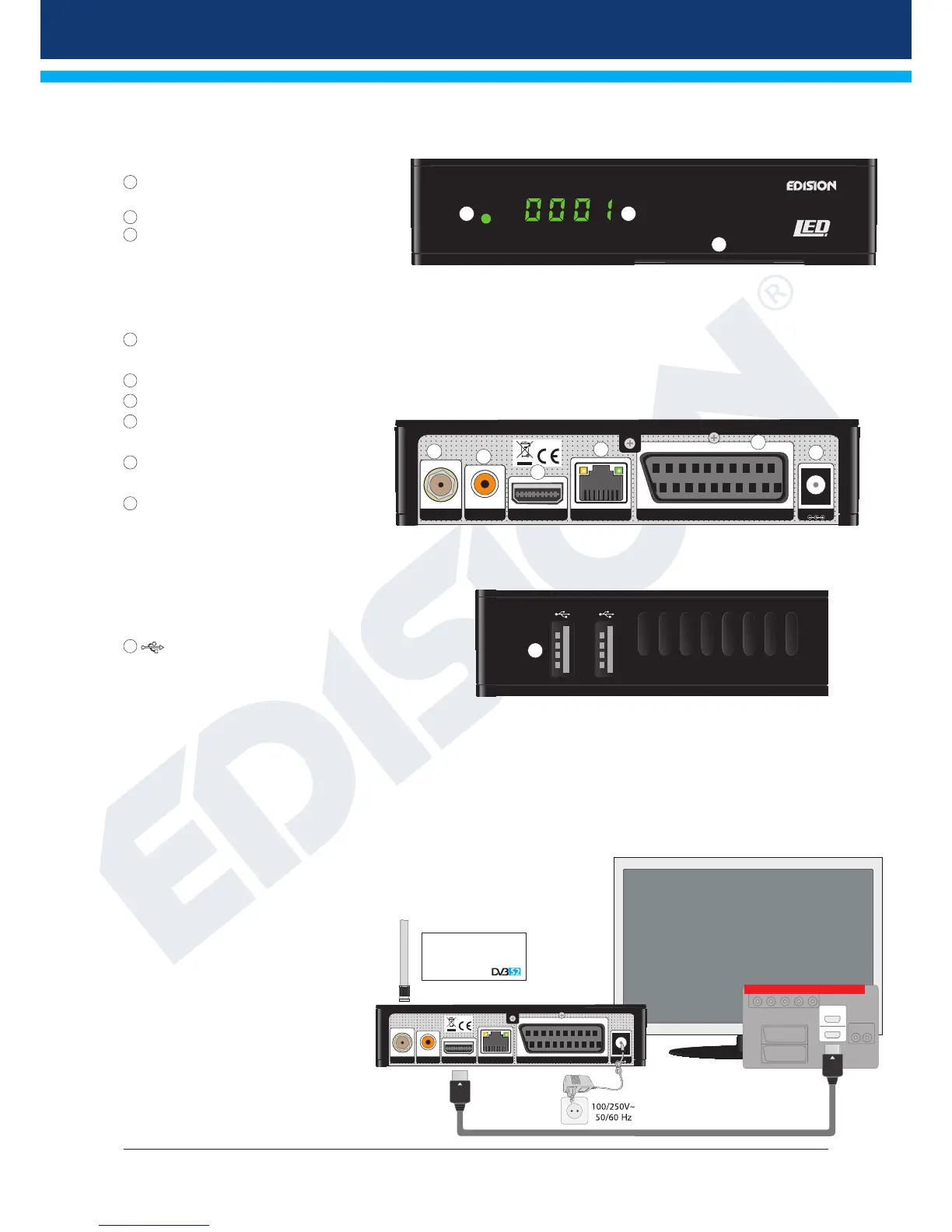

►Description
Front Panel
1
Infrared sensor for the reception
of remote control commands
2
Display LED, displays current information
3
Card reader
Back Panel
4
LNB IN: Connection for the coaxial cable
to the signal from the satellite system
5
S/PDIF: Audio interface for amplier/audio console
6
HDMI: Connection to an HDTV quality TV
7
ETHERNET: Ethernet port RJ45
10/100 Mbps
8
SCART: For connecting to a TV set,
using SCART cable [not for HD TV]
9
Connection for an adapter
(DC 12V/1,5A)
Side view
10
/ 2 x USB: Connection for USB storage devices
Connecting and switching on
Note: For interference-free satellite TV reception,
a specialist technician must calibrate your satellite TV
system with a digital TV level meter
• Connect the receiver using HDMI cable via the HDMI
output port to your TV's HDMI input port
• Now connect the receiver to the satellite
antenna cable via the LNB IN input.
• Insert the batteries into the remote
control. Notes on the remote control
can be found on the back of these
instructions.
• Connect the receiver
to the power supply.
• The receiver starts with the BOOT
process and is operational with
in a short time
piccollino
1 2
3
SCART
DC 12V/1,5 A
S/PDIF HDMI
LNB IN 13/18V
400mA MAX
ETHERNET
4
5
6
7
8
9
10
1
HDMI in
2
HD m i
kabel
HDMI
kabel
Antenna cable
SCART
DC 12V/1,5 A
S/PDIF HDMI
LNB IN 13/18V
400mA MAX
ETHERNET
Power socket
HDMI:
Output receiver
HDMI cable
TV set connection panel
Use an HDMI input!
LNB IN: Connecting
the cable to the satellite
signal
