Under the Terminal Cover
5-
• Figure 5-9 Terminal block diagram
.
TB4
TB3
TB2
TB1

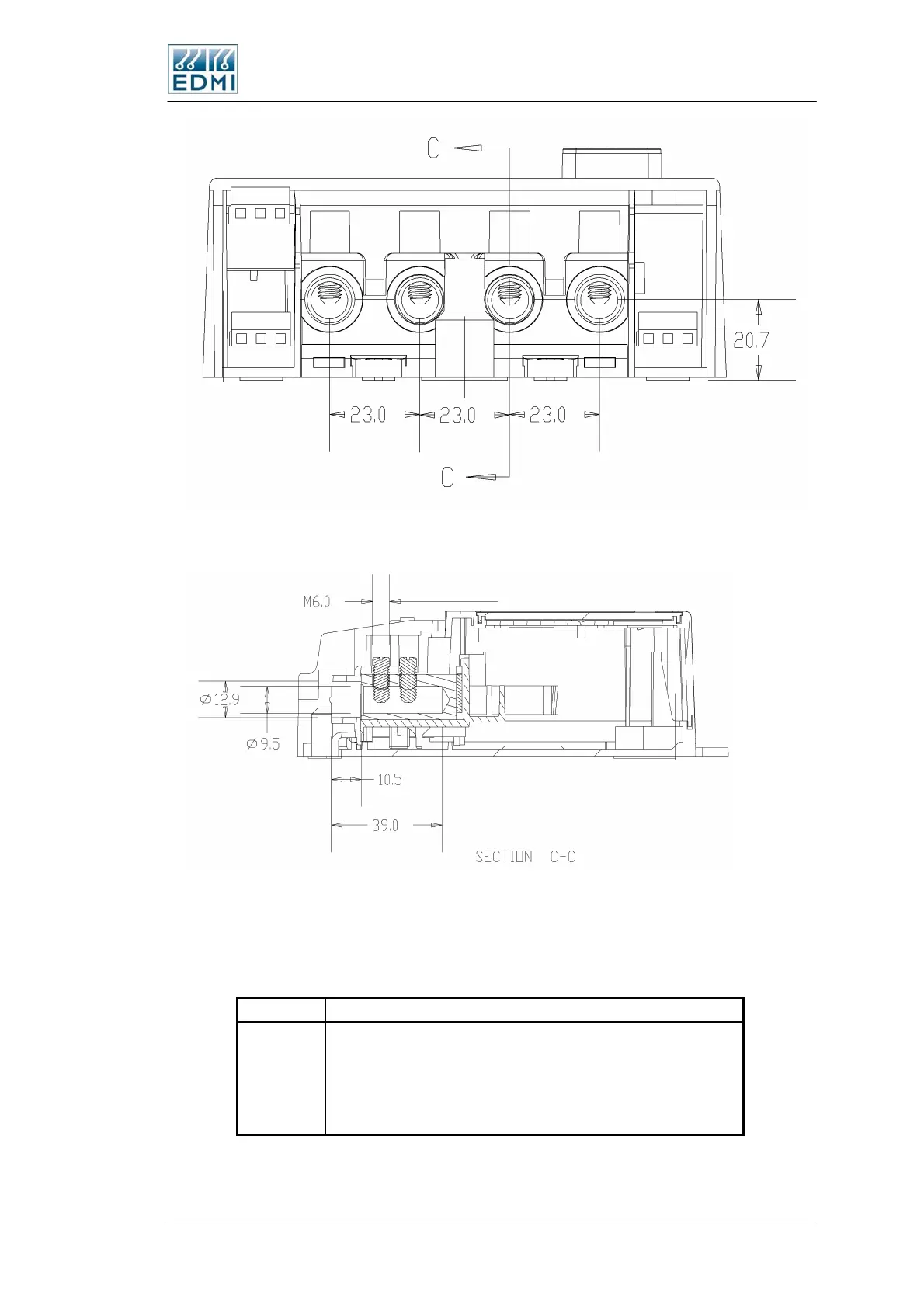

• Figure 5-10 TB1 terminal details
Table 5-2 to Table 5-7 list the terminal block connections for the various configurations.
All terminals numbered left to right.
Terminal Description
TB1 Voltage and current inputs.
TB1-1 Incoming Active
TB1-2 Incoming Neutral
TB1-3 Outgoing Neutral
TB1-4 Outgoing Active L1
• Table 5-2 Terminal block connections - Common
