© Edwards Limited 2020. All rights reserved. Page 17
Maintenance
D14643880 Issue L

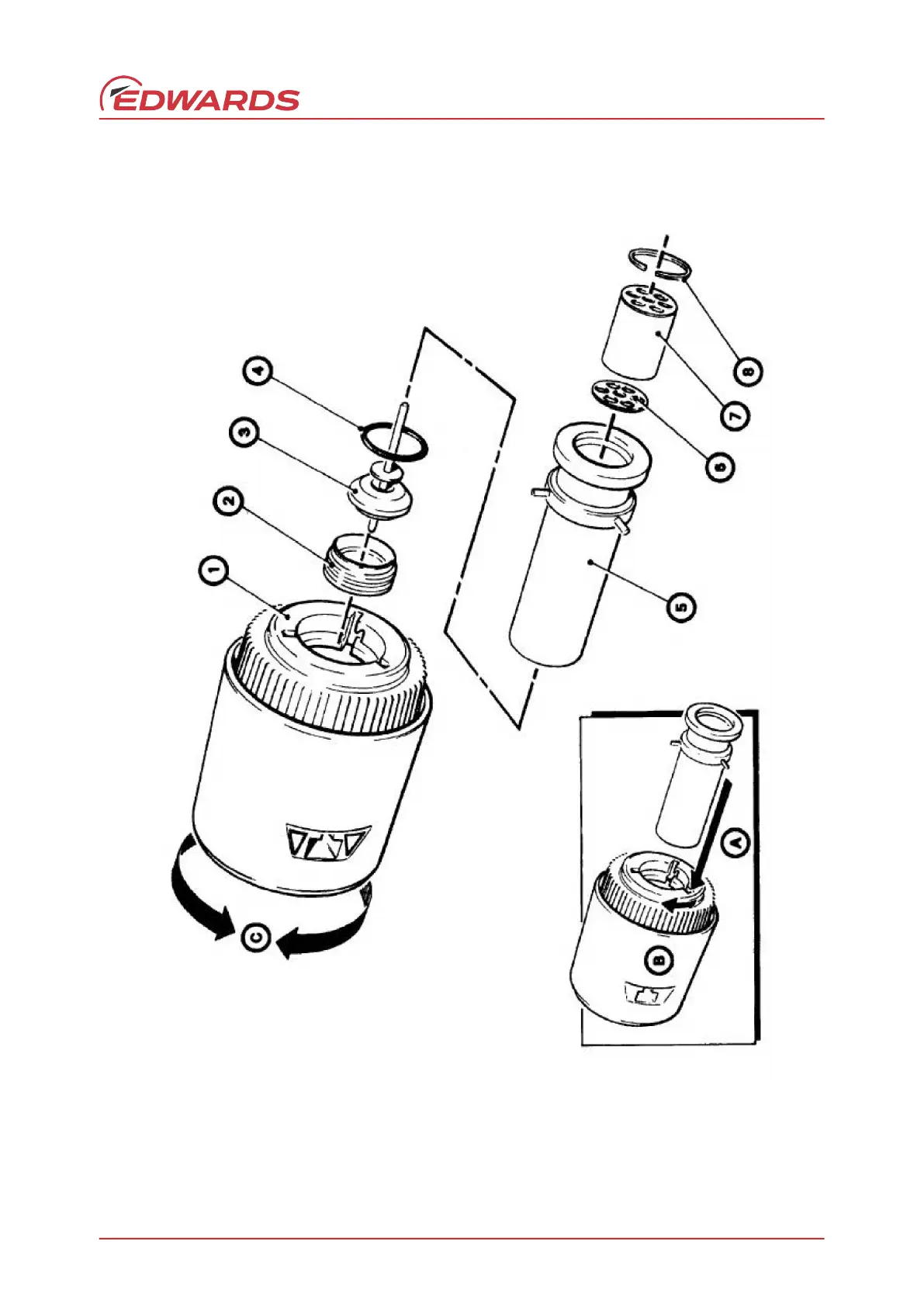

Figure 5 - Assembly of AIM gauge
1. Magnet housing
2. Collar
3. Anode assembly
4. Fluoro-elastomer O-ring
A. Bayonet fitting
B. Magnet housing
C. End cap
5. Body tube
6. Cathode plate
7. Cathode tube
8. Circlip
