Electronic interface FCC68/RJ45 Type 8-way

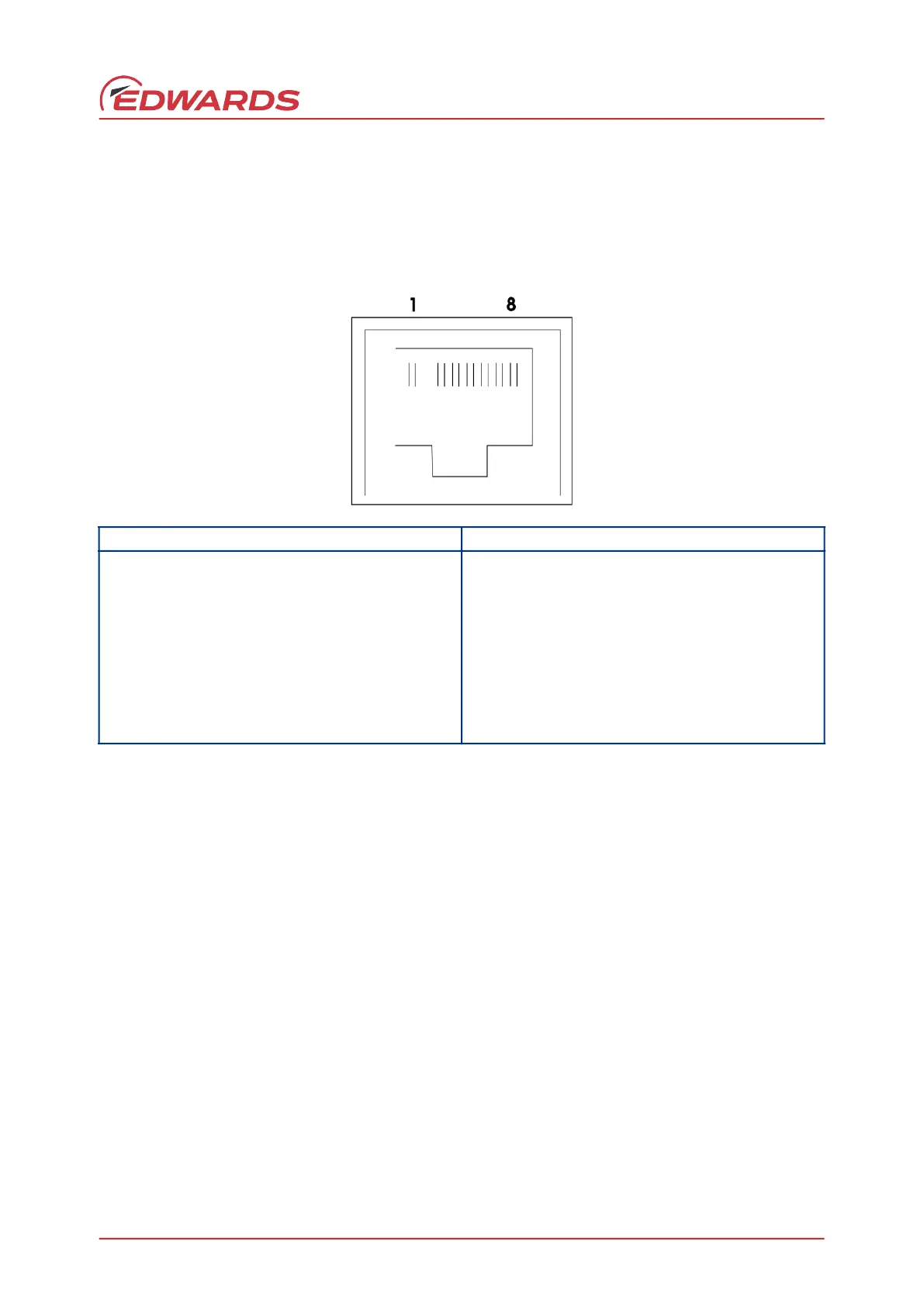

View of gauge socket (See also Figure A1 inset):
Pin allocation Function
1 Power supply positive voltage
2 Power supply common
3 Gauge output signal
4 Set-point trip level
5 Signal common
6 Set-point output
7 Gauge enable
8 No connection
