TECHNICAL DATA
A705-74-880 Issue K

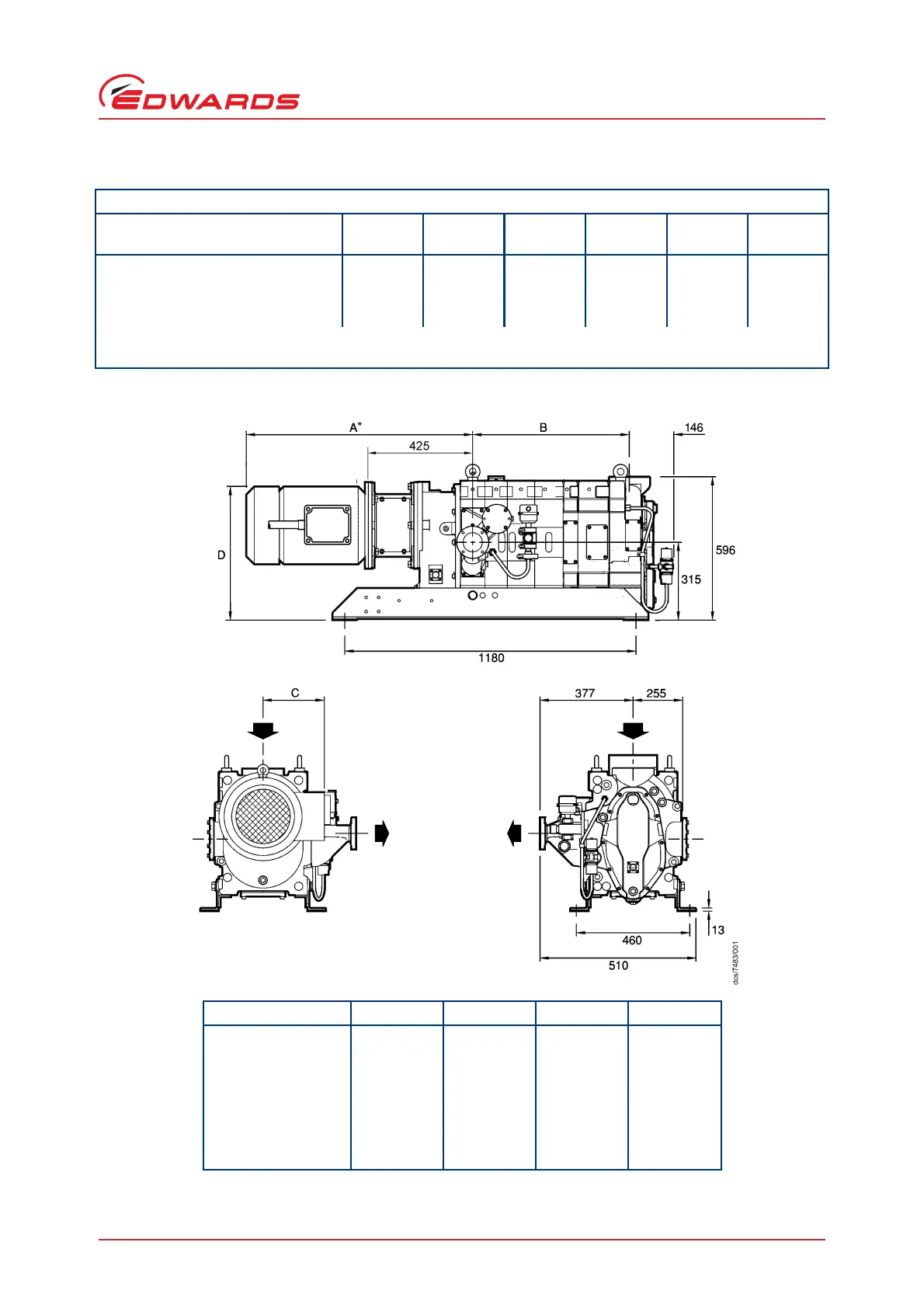

Figure 2 - GV Dry Vacuum Pump Dimensions (mm)
Max. gas ballast flow: l/min @ 6psig 150 150 150 150 150 150
Motor flange PCD 300 mm 12.5 inch 300 mm 12.5 inch 300 mm 12.5 inch
Motor spigot 250 mm 11 inch 250 mm 11 inch 250 mm 11 inch
* Pump installed with exhaust duct and standard silencer, running at ultimate. The noise figures above are
measured generally in accordance with BS EN ISO 4871:1997.
Pump A * B C D
GV260 50 Hz 911 461 270 549
GV260 60 Hz 956 461 276 549
GV410 50 Hz 911 544 250 549
GV410 60 Hz 899 544 276 569
GV600 50 Hz 977 634 250 569
GV600 60 Hz 1014 594 276 569
* Dependent on motor fitted i.e. Bareshaft pump supplied.
Table 2 - Te c h n i cal Da t a
Pump Type
DATA
GV260 50
Hz
GV260 60
Hz
GV410 50
Hz
GV410 60
Hz
GV600 50
Hz
GV600 60
Hz
