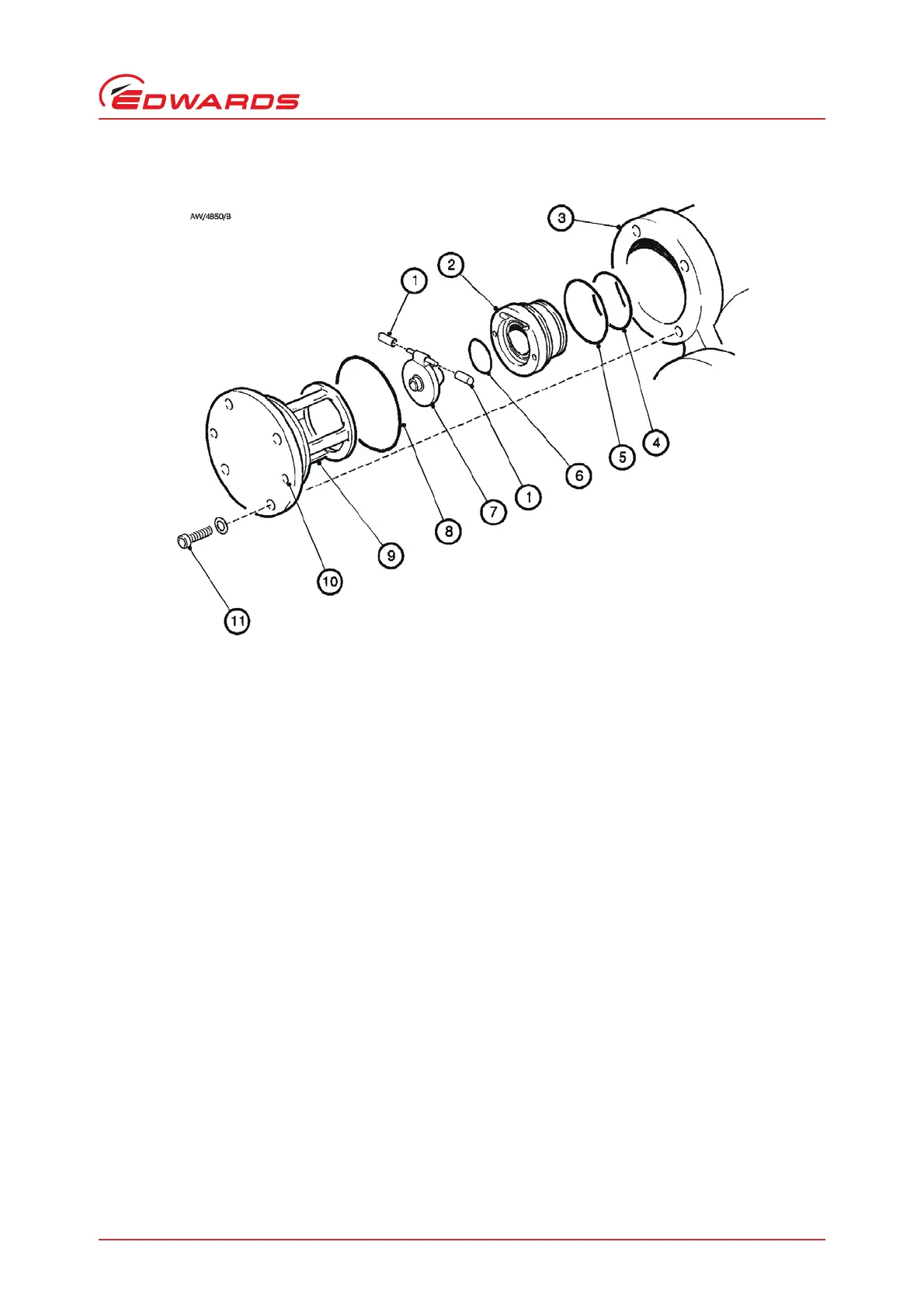

Figure 9 - Exploded View of the Interstage Pressure Relief Valve (GV410 and GV600 Pumps Only)
1. Hinge bush 7. Flap-valve
2. Valve body 8. O-ring
3. Exhaust manifold 9. Retainer
4. O-ring 10. Jacking hole
5. O-ring 11. Bolt (4 off)
6. Valve O-ring
