© Edwards Limited 2009. All rights reserved. Page 19
Edwards and the Edwards logo are trademarks of Edwards Limited.
INSTALLATION
A705-74-880 Issue K

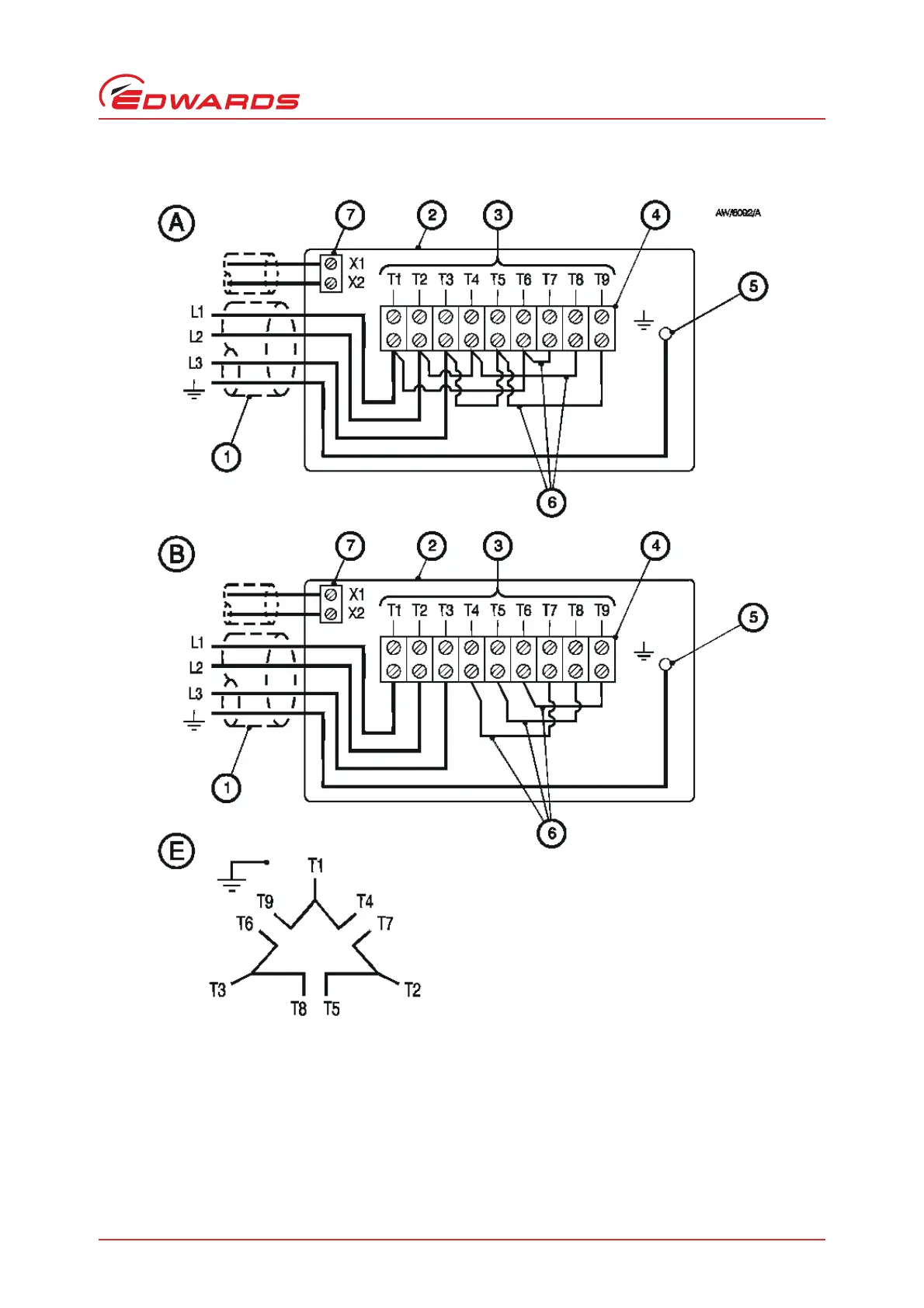

Figure 5 - Electrical Connections: 230/460 V, 60 Hz Electrical Supplies
A Wiring configuration:
230 V supply
B Wiring configuration:
460 V supply
E Schematic wiring diagram:
Delta
1. Electrical supply cable 5. Earth (ground) terminal
2. Terminal-box 6. Links
3. Motor wires 7. Motor thermistor wires
4. Terminal-block
