Edwards E2MO.7 - Inlet Catchpot; Inlet Dust Filter; Inlet Desiccant Trap; Figure 5 Accessories

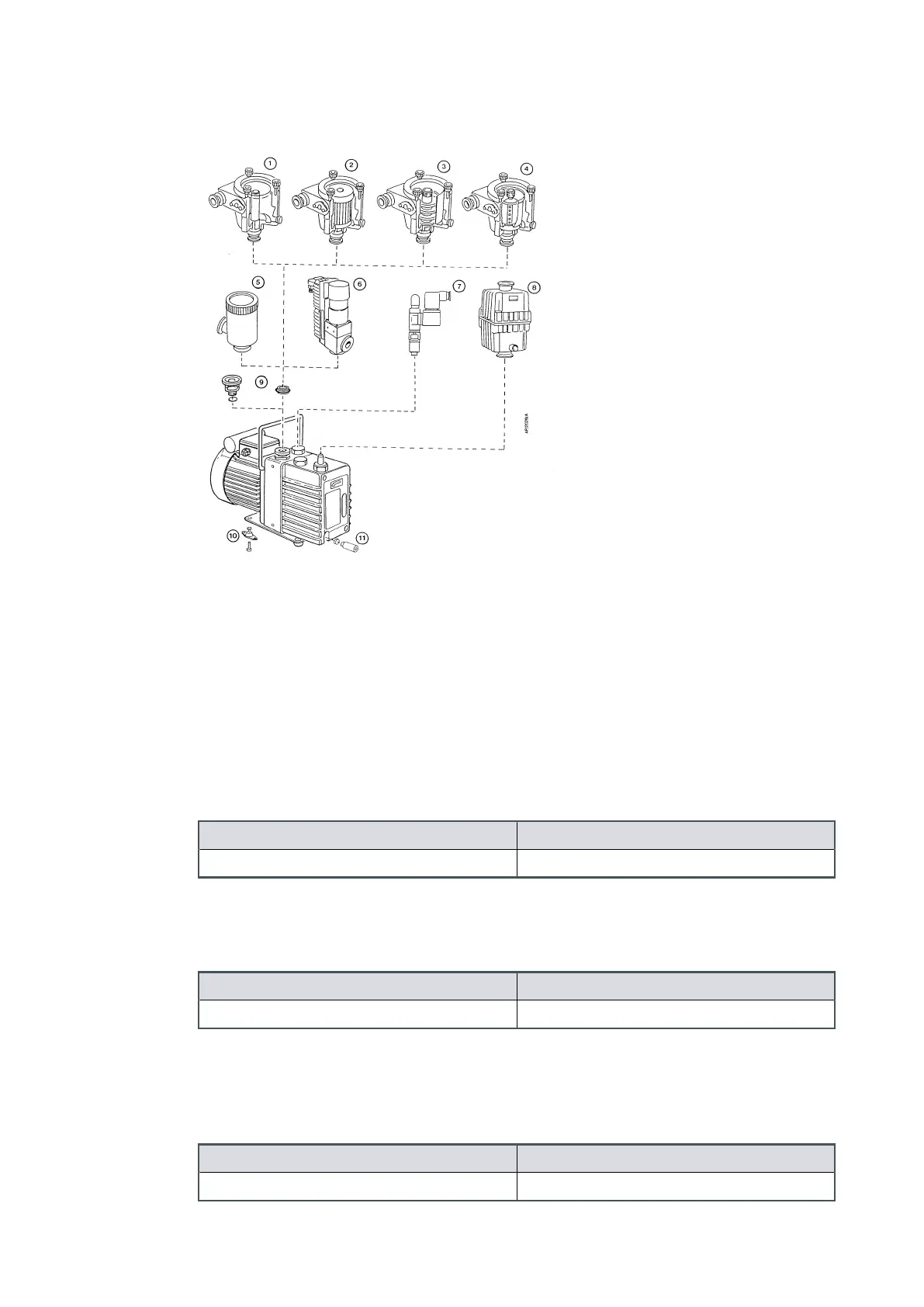

Figure 5 Accessories
1. Inlet catchpot 2. Inlet dust lter
3. Inlet desiccant trap 4. Inlet chemical trap
5. Foreline trap 6. Solenoid operated pipeline valve
7. Solenoid operated gas‑ballast valve 8. Outlet mist lter
9. Flange adaptor kit 10. Vibraon isolators
11. Oil drain extension
1. Inlet catchpot 2. Inlet dust lter
3. Inlet desiccant trap 4. Inlet chemical trap
5. Foreline trap 6. Solenoid operated pipeline valve
7. Solenoid operated gas‑ballast valve 8. Outlet mist lter
9. Flange adaptor kit 10. Vibraon isolators
11. Oil drain extension
10.2.1 Inlet catchpot
The inlet catchpot traps any liquid droplets and prevents their entry into the pump.
Product
Item number
IT020K Inlet catchpot* A44110000
10.2.2 Inlet dust lter
The inlet dust lter protects the pump against abrasive dust.
Product
Item number
ITF20K Inlet dust
lter*
A44215000
10.2.3 Inlet desiccant trap
Use a desiccant trap when pumping limited quanes of water vapour at high pumping
speeds to a low vapour pressure.
Product
Item number
ITD20K Inlet desiccant trap* A44510000
Page 37
A37132880_F - Spares and accessories
