Technical data
B722-01-880 Issue K

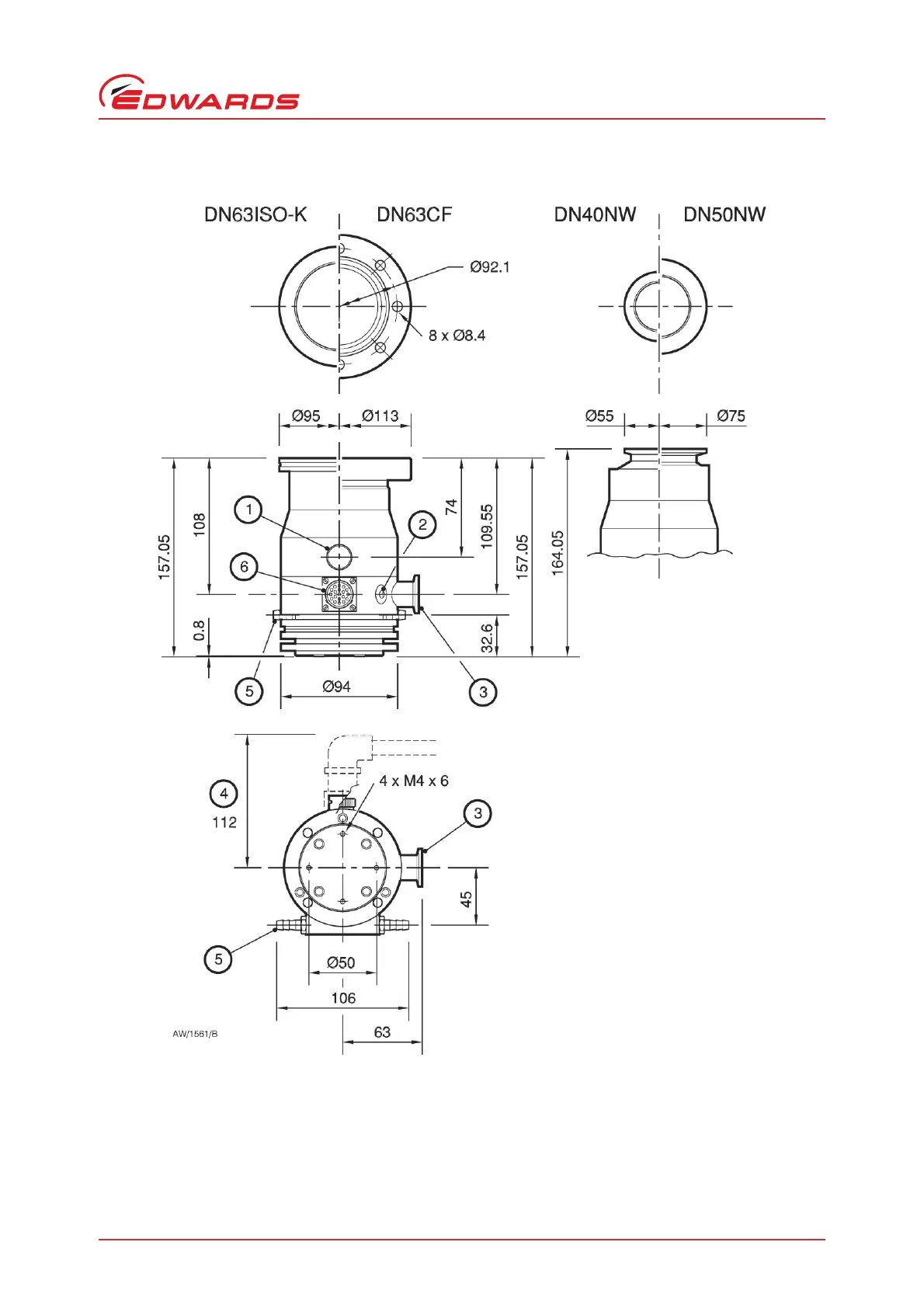

Figure 4 - EXT70 Turbomolecular Pump dimensions (mm)
1. Vent-valve
2. Earth (ground) screw
3. Backing-port
4. Allowance for right-angle cable connector
5. Cooling-water connectors
6. Electrical supply connector
