B722-01-880 Issue K
Page 14 © Edwards Limited 2007. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical data

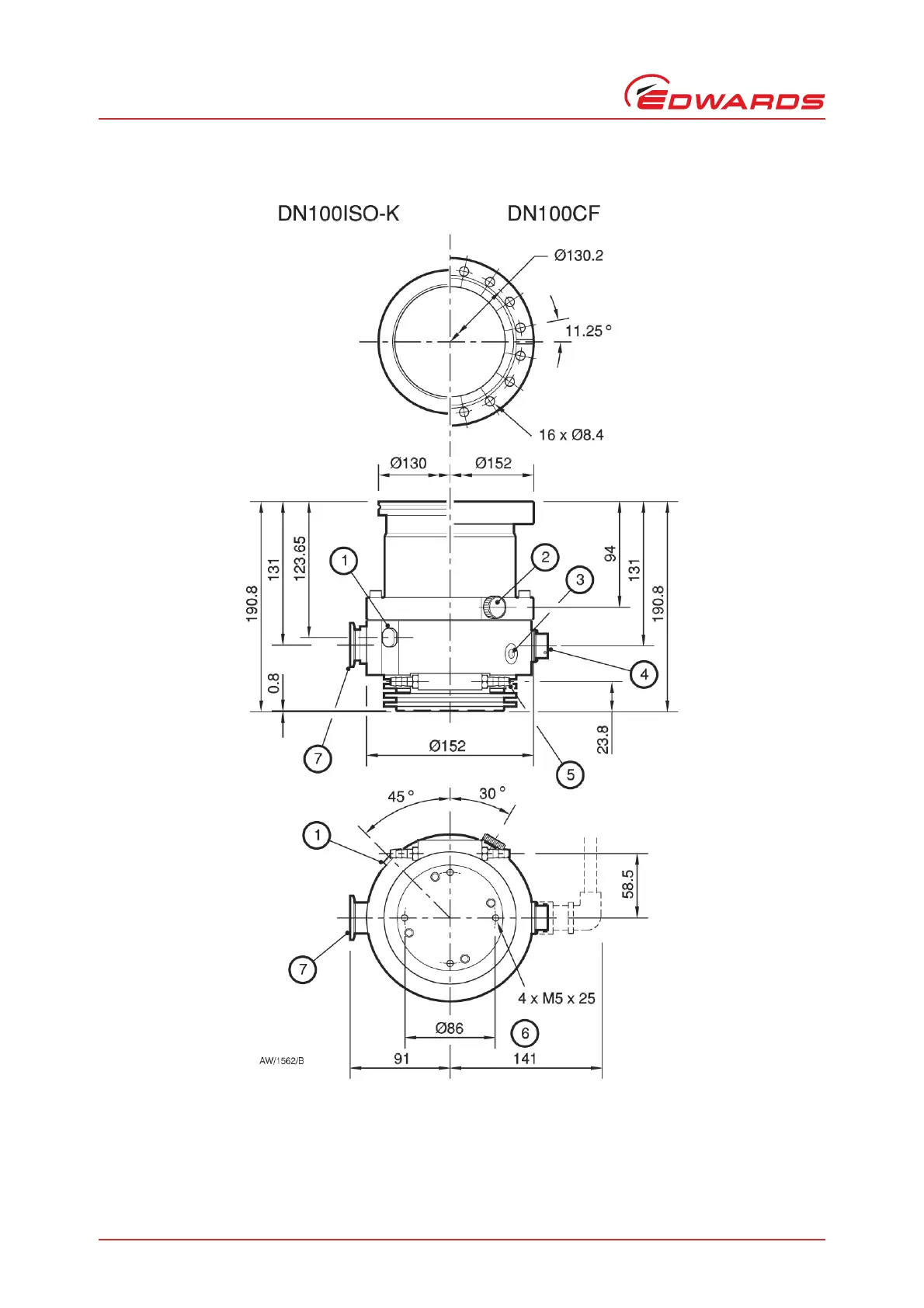

Figure 5 - EXT250 Turbomolecular Pump dimensions (mm)
1. Purge plug in purge-port
2. Vent-valve
3. Earth (ground) screw
4. Electrical supply connector
5. Cooling-water connectors
6. Allowance for right-angle cable connector
7. Backing-port
