Edwards nEXT User Manual

2. Introducon
This manual pro
vides installaon, operaon and maintenance instrucons for the
Vibraon Isolator which is an accessory for the nEXT pump.
If you use the vibraon isolator with any other item or isolators from dierent supplier,
the eciency of the equipment can not be guaranteed.
2.1 Overview
The Vibraon Isolator is used to reduce the transmission of the small amount of
vibraon generated by the pump to the vacuum system. You can install the Vibraon
Isolator to the inlet ange of the nEXT pump.
It consists of two anges and a damping mass between the anges. The anges and the
mass are separated by special O‑rings and rubber washers which manage the sealing
and also the damping.
The Vibraon isolator is designed for use only with the vercal oriented pumps.

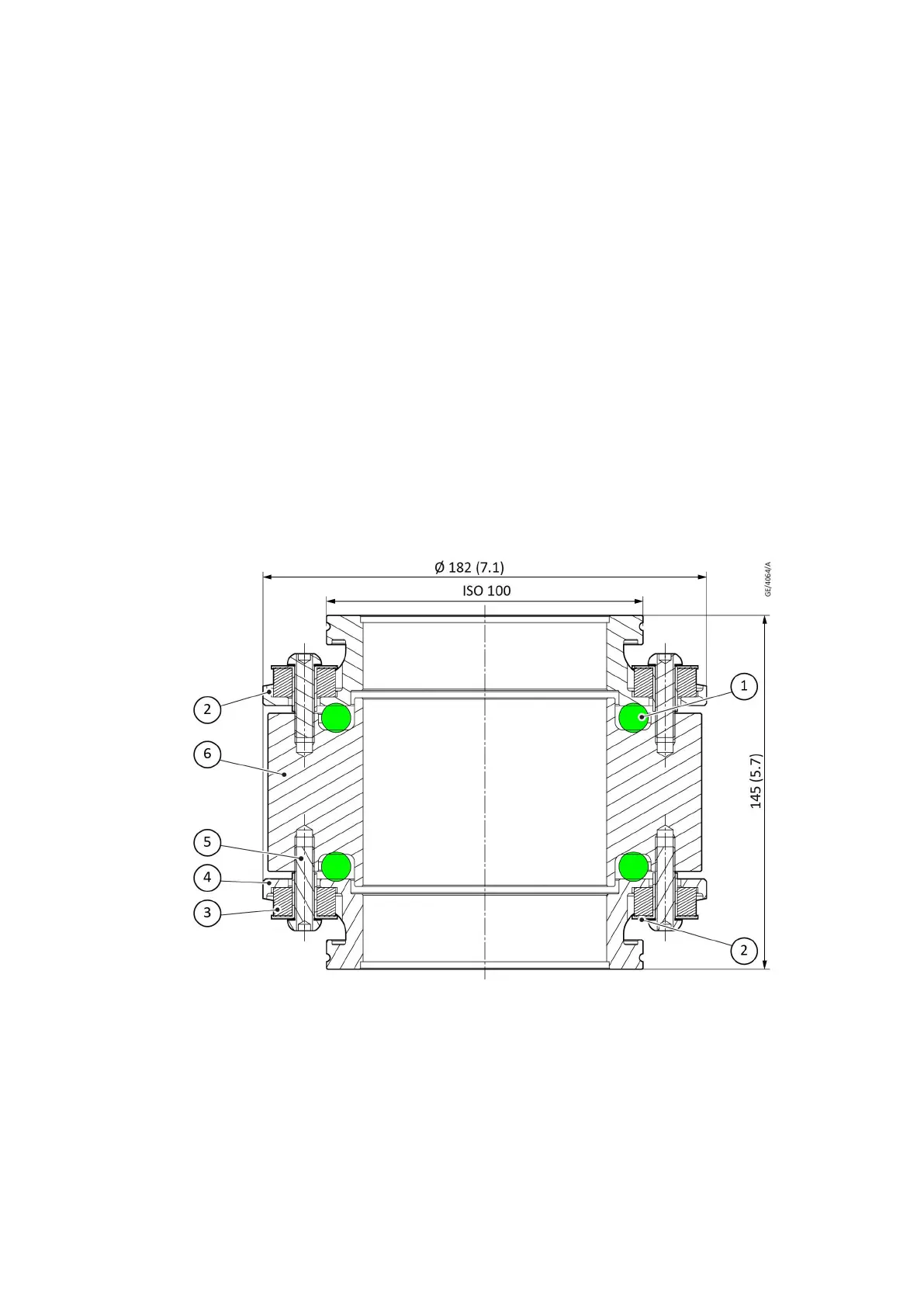

Figure 1 General view of the Vibraon Isolator
1. Damping and sealing O-ring 2. Spacer
3. Damping block 4. ISO100 Flange
5. Screw 6. Damping mass
1. Damping and sealing O-ring 2. Spacer
3. Damping block 4. ISO100 Flange
5. Screw 6. Damping mass
09/2021 - ©Edwards Limited
Page 7B80000860_A
B80000860_A - Introducon
