Edwards nEXT - Technical Data; Figure 2 Axial Transmission Function of Isolator

3. Technical data
Table 1 General technical data
Parameter
Value
Item number B58053400
Flange size DN100ISO-K
Inside diameter (mm) 100
Overall length (mm) 145
Weight (kg) 10.7
Maximum tensile load (kg) 8
Minimum number of claw clamps 4
Table 2 Operang and storage condions
Parameter Value Units
Ambient operang temper
ature range 12 to +35 * °C
Ambient storage temperature range -10 to +60 C
Maximum operang humidity
maximum 90
c
ondensing at 40 °C
% RH
Maximum operang altude No limit m
*Damping properes could be aect
ed by operang temperature

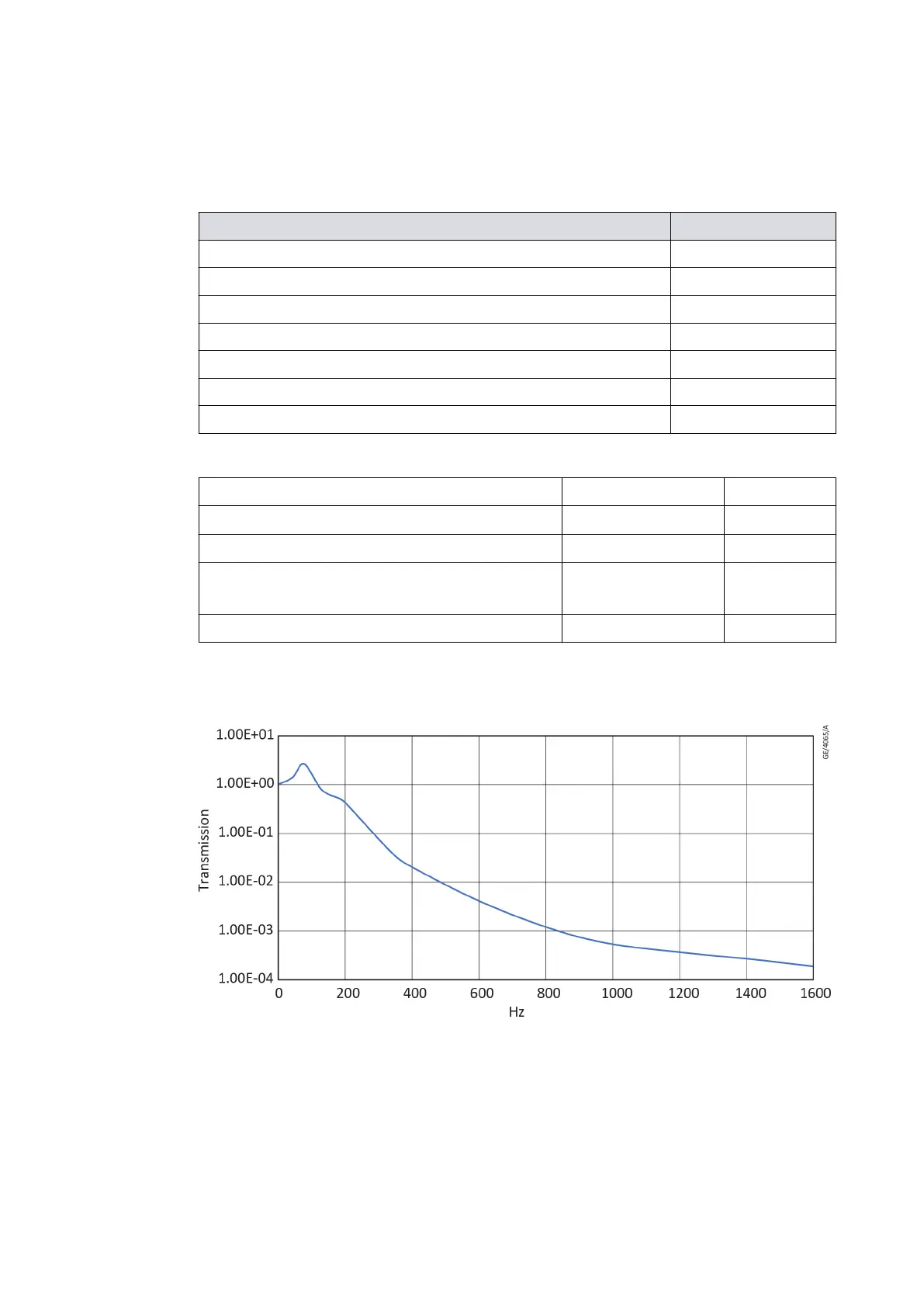

Figure 2 Axial transmission funcon of isolator
