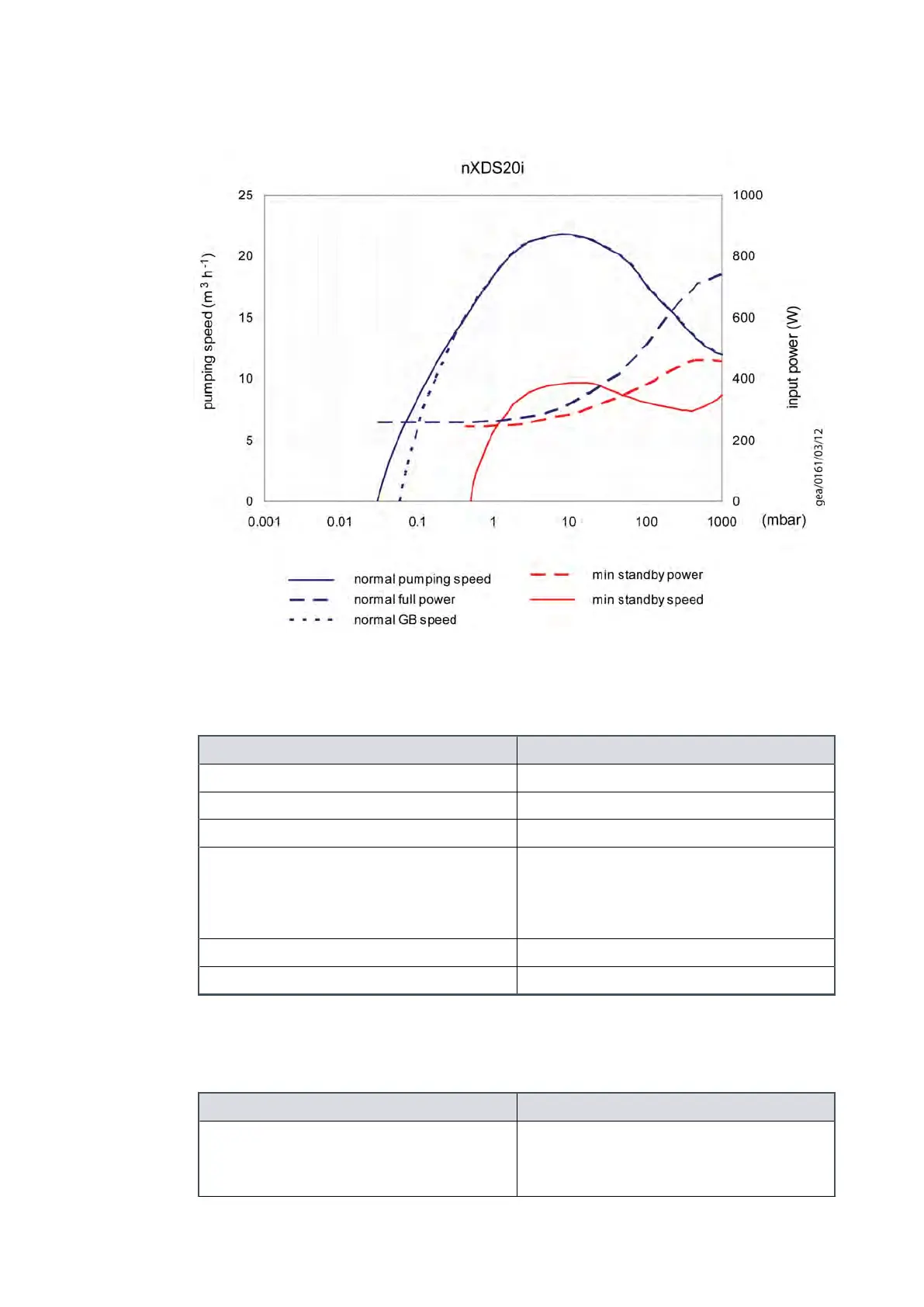

Figure 6 nXDS20i Performance char
acteriscs
3.3 Mechanical data
Table 6 General mechanical data
Parameter
nXDS
Overall dimensions (L x W x H) 432 x 282 x 302 mm
Maximum lt angle 10 degrees
Nominal rotaonal speed 1800 rpm (30 Hz)
Mass (maximum)
6i ‑ 26.2 kg
10i ‑ 25.8 kg
15i ‑ 25.2 kg
20i ‑ 25.6 kg
Inlet connecon NW25
Outlet connecon NW25
3.3.1 Sound and vibraon data
Table 7
Sound and vibraon data
Parameter
nXDS
Sound pressure, measured at ulma
te
vacuum 1 metre from the end of the
pump to ISO 3744
52.0 dB (A) ± 2.5
Declared dual number noise emission
values according with ISO 4871
Page 19
A73501880_G - Technical data
