Edwards nXDS6i User Manual

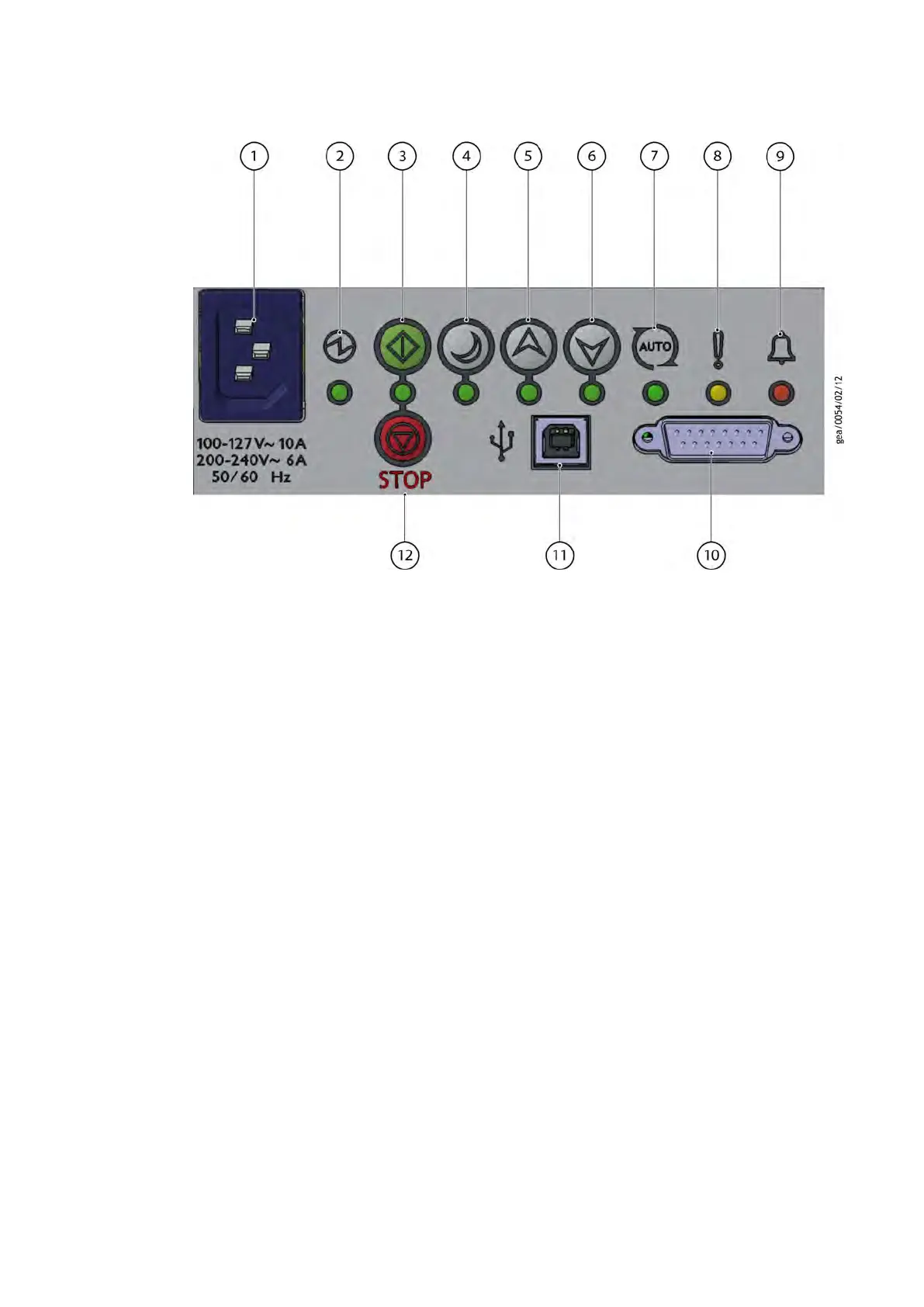

Figure 9 User interface panel
1. Mains power connector 2. Power connected indicator
3. Start buon with indic
ator 4. Standby buon with indicator
5. Increase standby speed buon with
indicator
6. Decrease standby speed buon with
indicator
7. Auto‑run enabled indicator 8. Service indicator
9. Alarm indicator 10. 15‑way D‑type connector
11. USB port (Service mode only) 12. Stop buon
1. Mains power connector 2. Power connected indicator
3. Start buon with indicator 4. Standby buon with indicator
5. Increase standby speed buon with
indicator
6. Decrease standby speed buon with
indicator
7. Auto‑run enabled indicator 8. Service indicator
9. Alarm indicator 10. 15‑way D‑type connector
11. USB port (Service mode only) 12. Stop buon
5.2.1 Start and stop
Use the buons (Figure: User interface panel on page 32, items 3 and 12) to start and
stop the pump. Note that the stop command does not isolate the pump from the
electrical supply.
5.2.2 Standby
Operaon at reduced speed will further improve p seal and bearing service life.
Vacuum performance will be reduced when operang at standby speed.
Press the Standby buon to select standby mode. The pump will inially run at factory
default standby speed (70% of full speed). The speed can be adjusted using the increase
and decrease standby speed buons. The maximum standby speed is 100% of the
default run speed and the minimum standby speed is 67% of the default run speed. A
single short push will change the speed by 1% of the default run speed, holding the
buon will change the speed by 1%/sec. Once adjusted, the pump will return to this new
user‑dened speed each me standby speed is selected.
The Standby buon must be pressed to return to normal run speed.
Page 32
A73501880_G - Operaon
