Edwards nXDS6i - Start-up, Vacuum, Vapours, and Shut Down

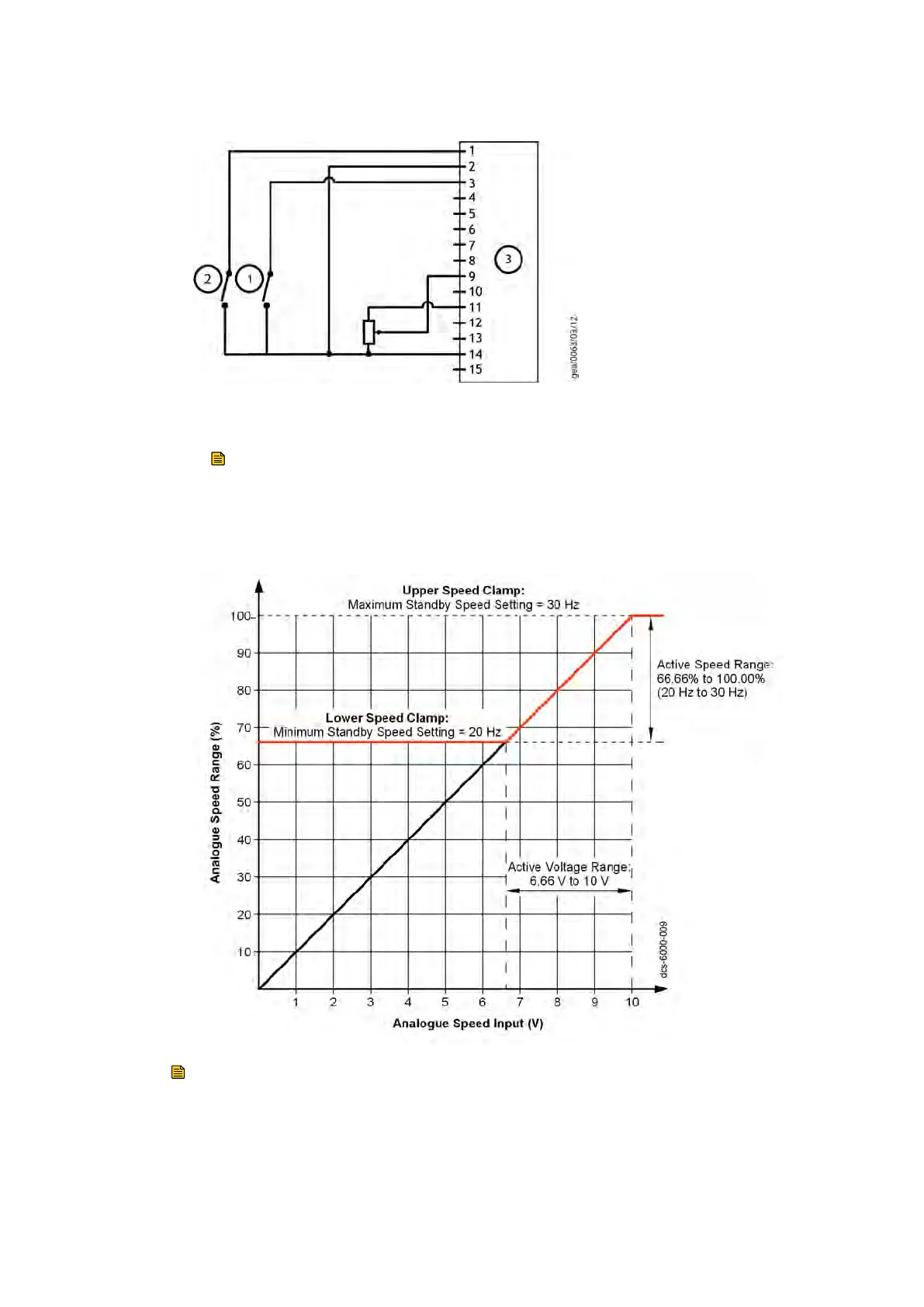

Figure 11 Logic interface c
onnecons - analogue speed control
1. Start switch 2. Analogue control switch
3. nXDS pump logic interface
Note:
0.1 V
º 1% of Default Run Speed.
1. Start switch 2. Analogue control switch
3. nXDS pump logic interface
Note:
0.1 V
º 1% of Default Run Speed.
Figure 12 Analogue speed control
Note:
V
oltages below 6.7 V will result in a clamped speed of 67% of full speed.
Page 34
A73501880_G - Oper
aon
