INSTALLATION OF THE STP CONTROL UNIT
3
3.1.3 SCU-1600/1601
ON
RESET UP
SELECT
DOWN
ENTER
START
STOP
ACCEL
BRAKE
POWER
TEMP CTRL
NORMAL
FAILURE REMOTE
STP CONTROL UNIT
X 8 S T P -L I NK
a) Front panel
b) Rear panel

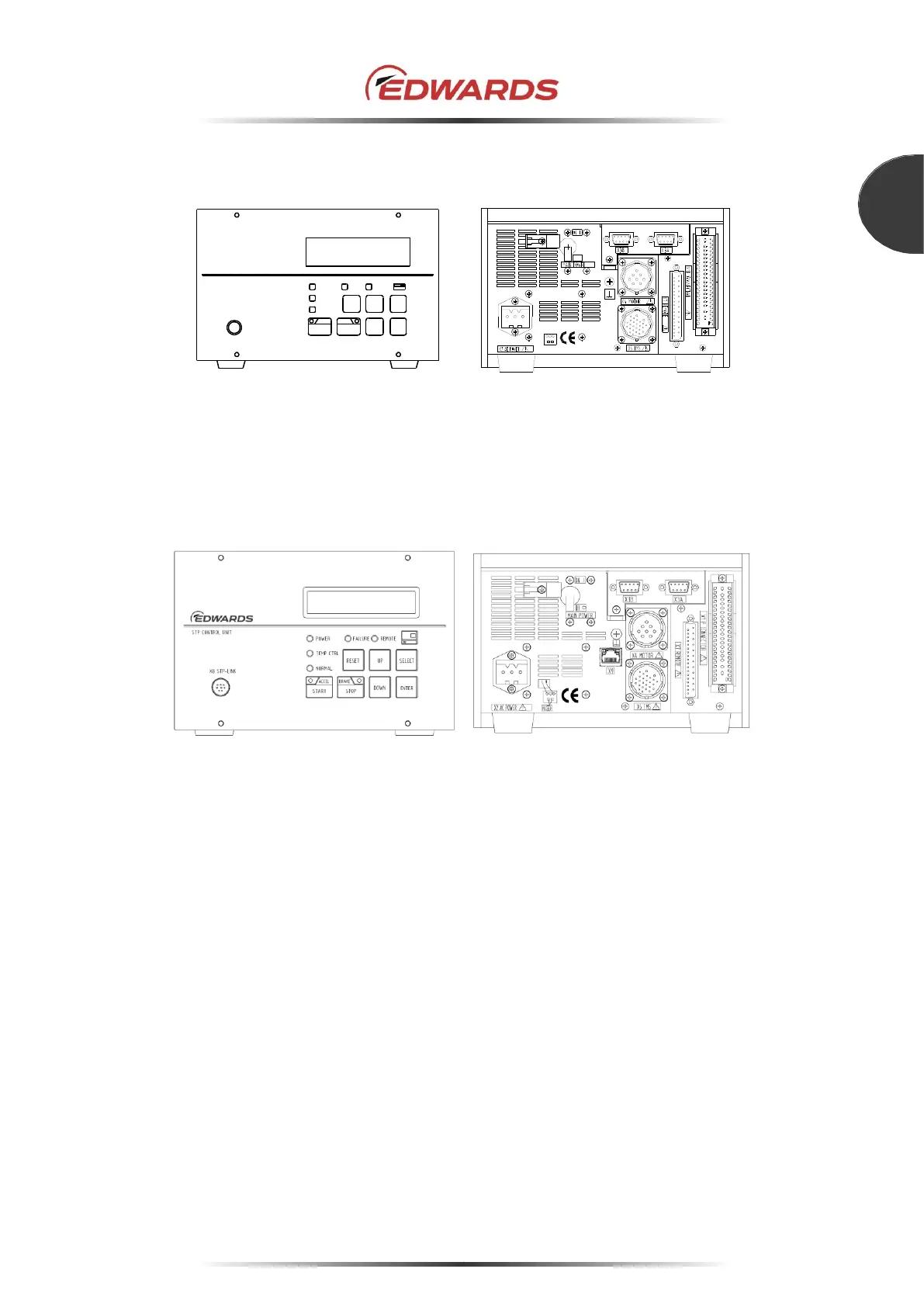

Figure 21 - SCU-1600/1601
a) Front panel
b) Rear panel
Figure 22 - SCU-1601
Note: Refer to the STP Control Unit Instruction Manual (C) for the functions of each switch and
connector.
