A732-01-880 Issue D
Page 6 © Edwards Limited 2018. All rights reserved.
Technical data
2.2.2 Performance characteristics

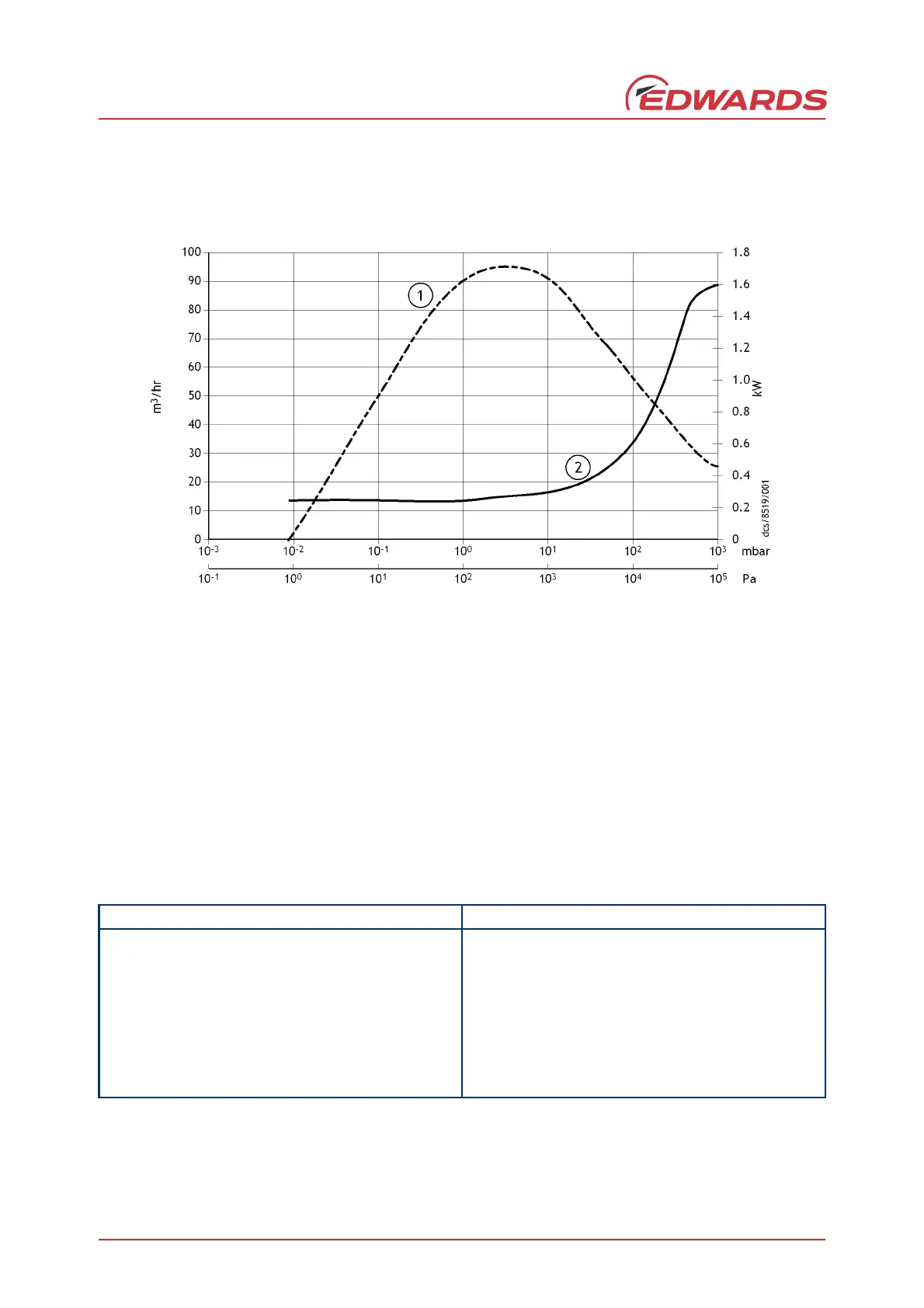

Figure 2 - Performance characteristics
Note: XDS100B is not suitable for prolonged operation at inlet pressures above 20 mbar. Under such conditions,
the inverter may reduce the motor speed.
The above performance curve shows the XDS100B Scroll Booster speed and power consumption when used in
conjunction with a XDS35i backing pump.
2.3 Mechanical data
2.3.1 General
Table 3 - General mechanical data
Parameter XDS100B
Overall dimensions (L x W x H) 476 x 333 x 396 mm
Maximum tilt angle 10 degrees
Nominal rotational speed 1750 rpm
Mass 48 kg
Inlet connection NW40
Outlet connection NW40
Degree of protection (IEC60529) IP44
