Optional Enclosure Legs
(C)
(C)
INSTALLATION INSTRUCTION:
1. Check the depth of the floor stand (”C” dimension) to verify it matches the enclosure
depth dimension.

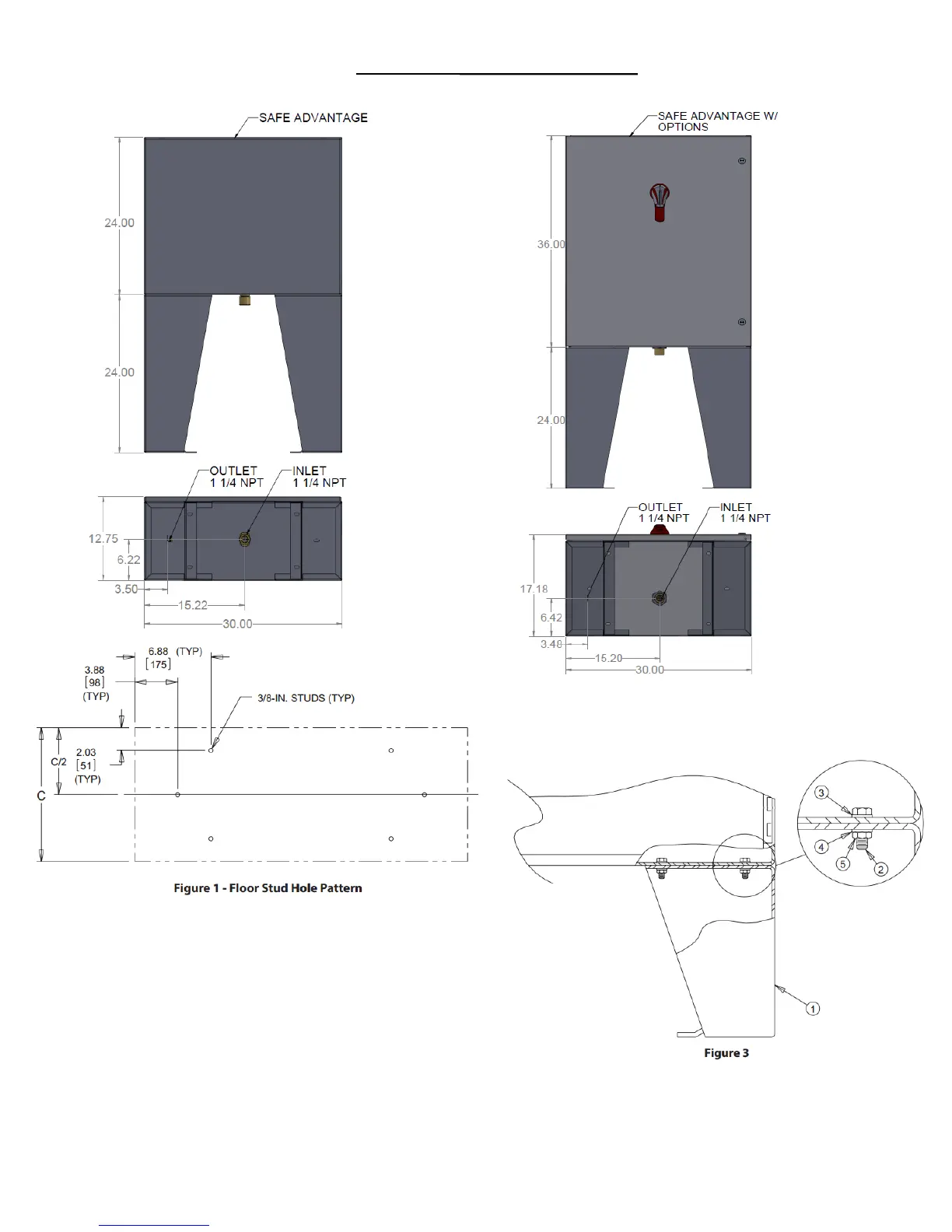

2. Anchor six 3/8-inch diameter studs (not provided with kit) securely in the floor as
shown in Figure 1.
3. Bolt the floor stand to the enclosure as shown in Figure 3 using the 3/8−16x.75 hex
head screws (Item2), washers (Items 3 and 4), and nuts (Item 5) provided. Firmly
tighten all fasteners.
4. Position the enclosure and attached floor stands over the anchored floor studs,
extending the studs through the base holes in the floor stands.
5. Secure the floor stands to the anchored floor studs with 3/8 inch nuts (Item 5) and
lockwashers (Items 3 and 4) or with 3/8 inch locknuts and washers (not provided with
kit). Firmly tighten all fasteners.
To Next Page
