EemaX EX190 TC - EEMAX Replacement Parts Diagram; Heater Core and Relay Part Numbers; Wire Connector Identification

10
If you have any problems or questions please contact EemaX @ 800-543-6163
L1 L2L1 L2
To 2
nd
module
ECO –
push to
reset
P/N
EX278
RELAY –
P/N EX255B – 208-240V
P/N EX253B – 277V
REPLACEMENT HEATER CORE ASSEMBLY
EX144 (T2, TC) – P/N EX770 – 7.5kW @ 240V
EX190 (T2, TC) – P/N EX630 – 9.5kW @ 240V
EX1608 (T2, TC) – P/N EX520 – 8.3kW @ 208V
EX160 (T2, TC) – P/N EX960 – 8kW @ 277V
EX200 (T2, TC) – P/N EX760 – 10kW @ 277V
CONTROL
BOARD
HEATER
CORE
7 - Wire
EX 100G
8 - Wire
EX 284

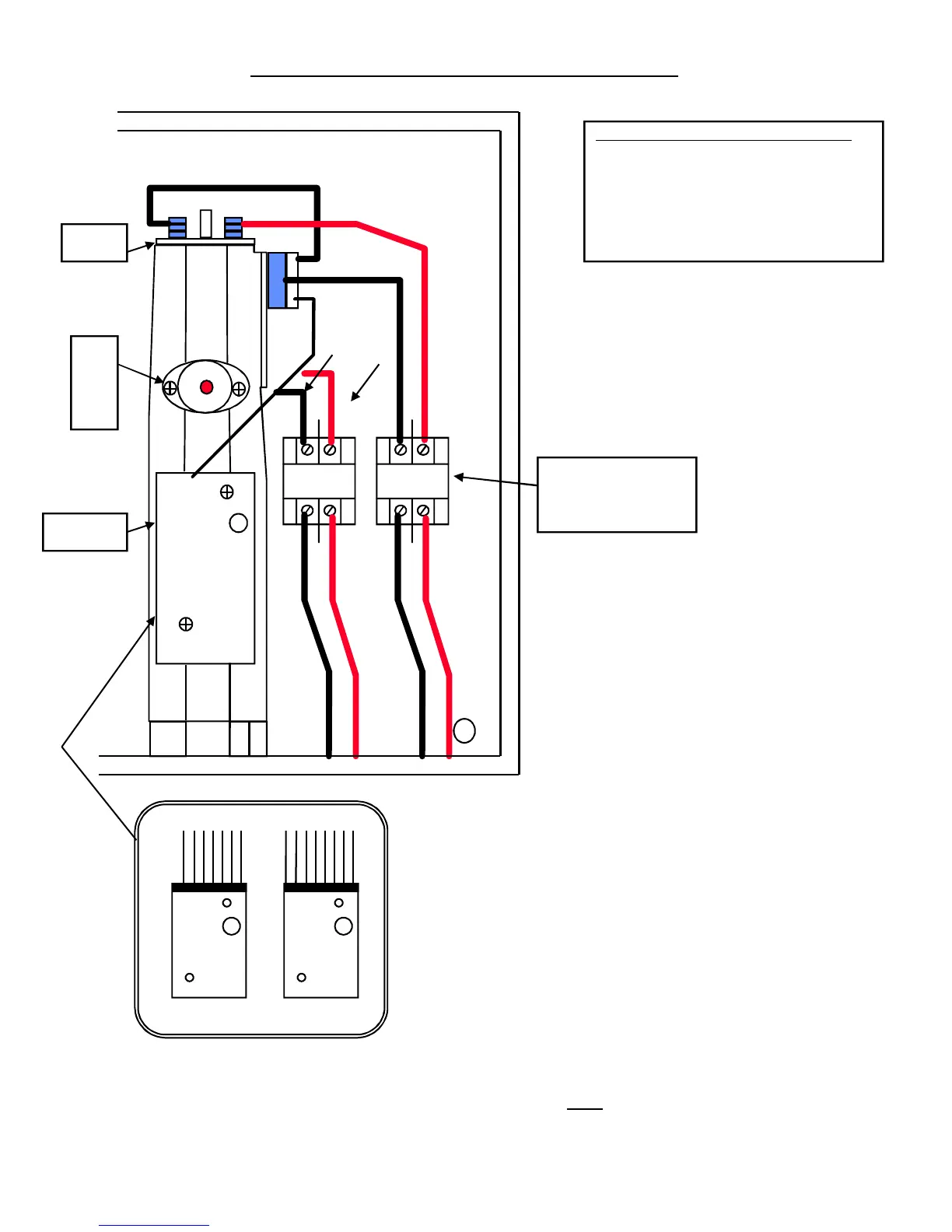

EEMAX REPLACEMENT PARTS DIAGRAM
