EFD 1000D - Page 10

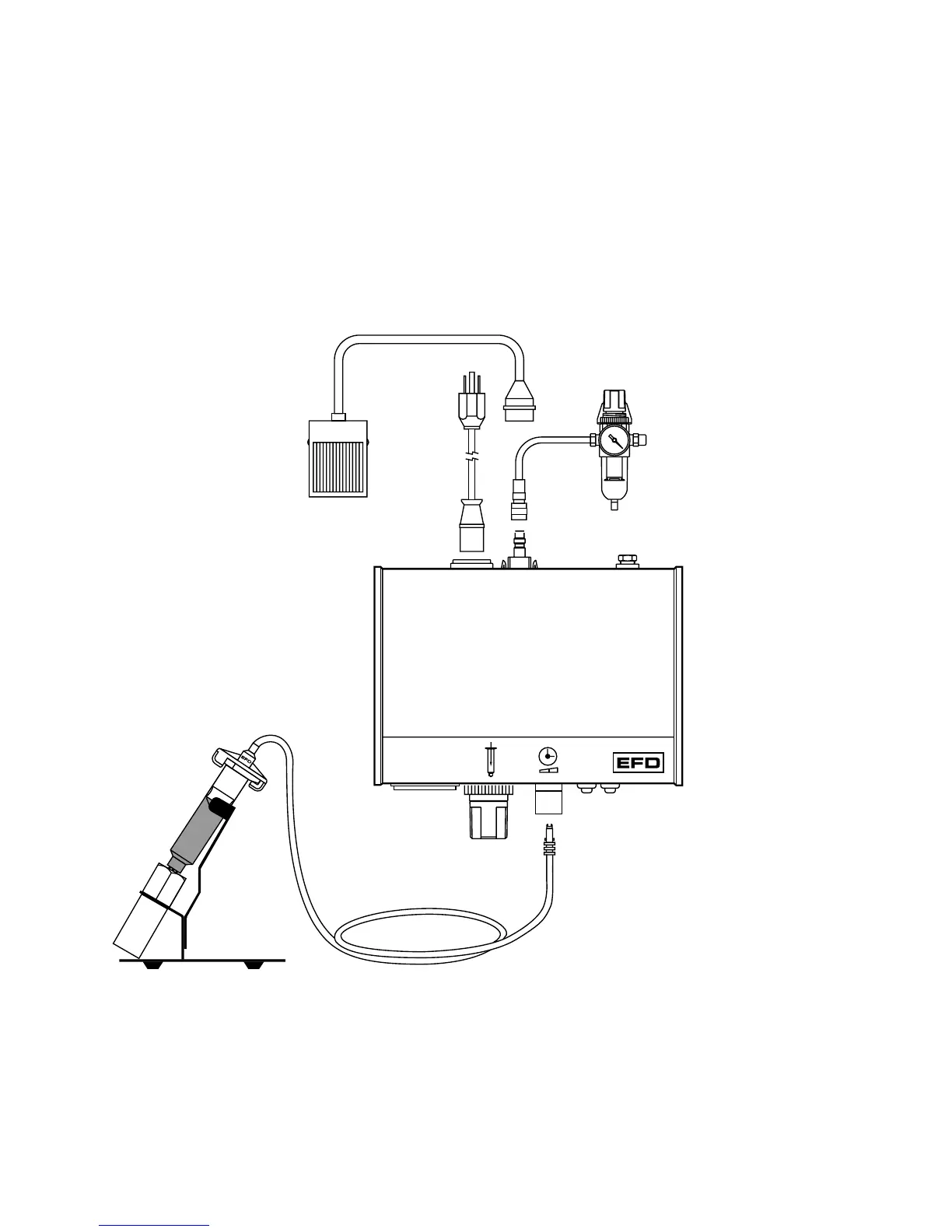

❶
Plant air, 125 psi maximum to
regulator. Output from regulator
should be a minimum of 80 psi,
maximum of 100 psi.
❷
❺
Check voltage label
on dispenser
❸
❻
Blue
test fluid
❹
Male quick-connect,
insert and twist to lock
Power
cord
Air input
hose
Foot pedal
assembly
Adapter
assembly
1000D
