Five-micron filter
regulator
1. Always use an EFD SmoothFlow
™
piston or LV Barrier
™
to make
barrel loading,
dispensing and handling cleaner, safer and more
accurate.
Caution (1000XL only): If you dispense pourable fluids and choose
not to use SmoothFlow
™
pistons, do not increase vacuum pressure
rapidly and do not tip the barrel. Vacuum may pull liquid into the air
hose; or when tipped, liquid may flow back into the dispenser.
2. Always use new barrels and tips. Carefully dispose of after use.
This procedure ensures maximum cleanliness, prevents con-
tamination and provides proper safety.
3. Do not completely fill the barrel. The optimum fill is a maximum
2/3 of the barrel capacity with the SmoothFlow
™
piston and 1/2 of
the barrel capacity when using the LV Barrier
™
.
4. Properly filtered, clean, dry plant air should be available where
the dispenser is to be set up. (Bottled nitrogen can be used.) Use
an EFD five-micron filter regulator #2000F755 where required.

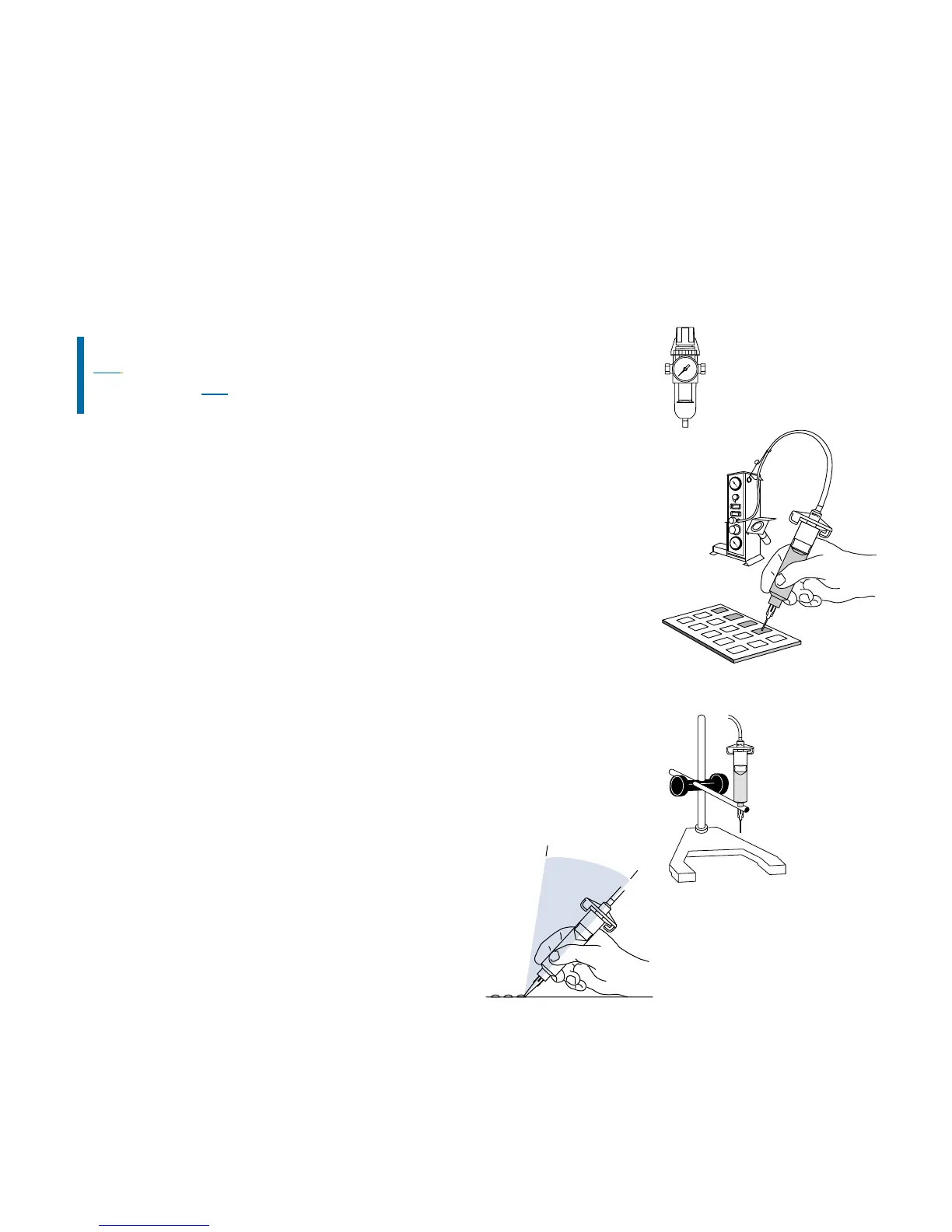

5. Use the EFD DispenStand
™
#DS1400 to help organize bench
space. Adapter hose support keeps air hose off the work area.
6. Depending on the type of work you are doing, it may be easier to
bring the work to the barrel. Mount the barrel on the EFD stand
#7300A.
7. To ensure smooth fluid flow and consistent deposits, always
have the tip at a 45° angle to the work surface.
Suggestions & Reminders
45°
80°
#DS1400
DispenStand
™
#7300A
Barrel stand
Tip should be at
a 45° angle to
work surface.
