EFD 1000D User Manual

Model 1000D
Model 1000XL

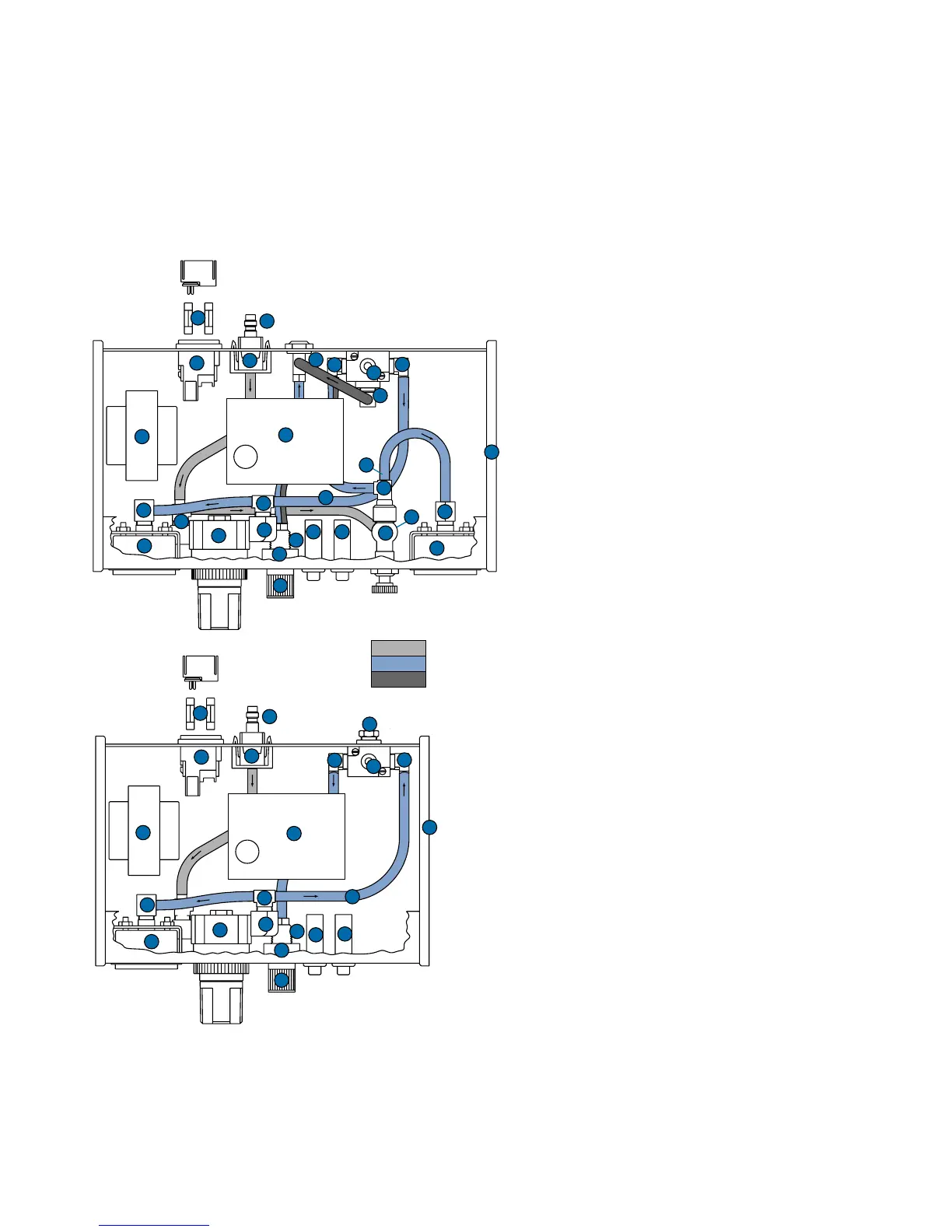

Schematic and Parts
1000D and 1000XL
Replacement Parts List
1. 2024-160 1/4" OD x .160" ID tubing
2. 2-2031-1000 Transformer assembly multi input
3. 2-2017A-24XL Foot pedal receptacle
4. 2169 Fitting 1/8 NPT x 1/8 NPT elbow brass
5. 2088 Fitting 1/8 NPT x 1/4 barb brass
6. 2-2006-24PR Programmable timer
7. 2001C 0 to 100 psi (0 to 7.0 bar) gauge
8. 2081A Male mini air-coupler panel mount
9. 2087 Fitting 1/8 NPT x 1/4 barb elbow brass
10. 2-2007-XL Potentiometer assembly
11. 2008A Time control knob
12. 2-2003-1000 24 VDC solenoid assembly
13. 2010-A24 Power switch 115 VAC
14. 2-2011-24 1000XL timer bypass switch assembly
15. 2019 Dispenser end panel
16. 2-2004B Quick-connect assembly
17. 2089 Fitting 1/8 NPT x 1/4 barb tee brass
18. 7111E Fuse .160A
19. 2014XL Input power receptacle
20. 2002SCR Replacement screen for regulator*
21. 2009-A24 Power cord American*
22. 2009-E24 Power cord European*
23. 2015A Foot pedal assembly*
24. 2033 Dispense indicator LED*
25. 1000INP-AKIT Air input hose*
26. 2-2002 1000D regulator assembly 0 to 100 psi
(0 to 7.0 bar)
27. 2-2002-XL 1000XL regulator assembly 0 to 100 psi
(0 to 7.0 bar)
28. 2001B 0 to 15 psi (0 to1.0 bar) gauge
29. 2178 Fitting 1/8 NPT x 1/4 barb elbow brass
30. 2-2170LV Vacuum transducer assembly
31. 2-2176-XL Barrel vacuum control assembly
32. 2036 Fitting 1/8 NPT x 1/4 barb brass
33. 2083 Gauge restrictor
34. 2084 Air restrictor
35. 7108 1000D muffler
* Not Shown
Input Air
Regulated Air
Vacuum
31
34
2
8
19
27
28
5
17
7
15
32
9
9
12
9
30
18
3
4
10
16
1413
1
29
33
11
29
6
14
13
17
19
2
26
8
7
5
15
9
12
35
6
9
18
4
10
16
3
1
11

EFD 1000D Specifications

General

Brand	EFD
Model	1000D
Category	Dispenser
Language	English
