EFD 1000D User Manual

ULTRA System
™

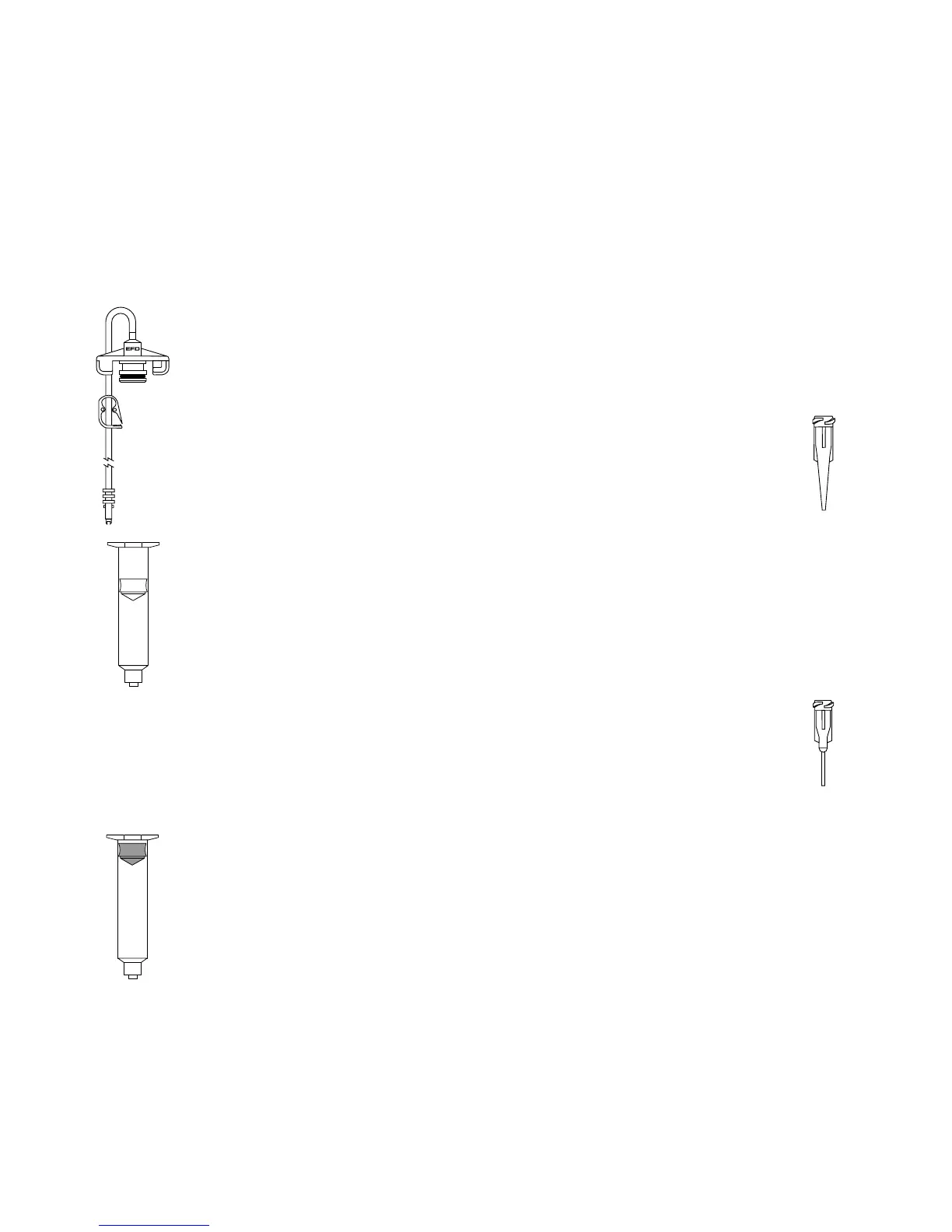

Dispensing Components
For complete selection and technical details, please refer to EFD Catalog and price list.
Smooth-flow tapered tips
Molded polyethylene with UV block. Packaged
(50) tips per see-through box with covers for easy
part identification.
gage ID tapered color
14 .063" 5114TT-B olive
16 .047" 5116TT-B grey
18 .033" 5118TT-B green
20 .023" 5120TT-B pink
22 .016" 5122TT-B blue
25 .010" 5125TT-B red
General-purpose precision tips
All EFD dispensing tips incorporate the unique
SafetyLok
™
color-coded polypropylene hubs.
Packaged (50) tips per see-through box for easy
part identification.
gage ID 1/2" length hub color
14 .061" 5114-B olive
15 .054" 5115-B amber
18 .033" 5118-B green
20 .024" 5120-B pink
21 .020" 5121-B purple
22 .016" 5122-B blue
23 .013" 5123-B orange
25 .010" 5125-B red
27 .008" 5127-B clear
30 .006" 5130-B lavender
Barrel adapter assemblies
Molded one-piece, yellow, SnapLok
™
adapter
head with Buna N O-ring, flexible 5/32" OD
hose, male quick-connect and safety clip.
size with 3-ft hose with 6-ft hose
3cc 1000Y5148 1000Y5148-6
5cc 1000Y5149 1000Y5149-6
10cc 1000Y5150 1000Y5150-6
30cc/55cc 1000Y5152 1000Y5152-6
ULTRA System
™
barrels/pistons
Industrial-grade ZeroDraft
™
barrels and white
SmoothFlow
™
pistons are molded silicone-free
by EFD. Each box contains the same quantity
of ZeroDraft
™
barrels and white SmoothFlow
™
pistons.
UV-block light-block sets/
size clear amber black box
3cc 5109CP-B 5109AP-B 5109UP-B 50
5cc 5110CP-B 5110AP-B 5110UP-B 40
10cc 5111CP-B 5111AP-B 5111UP-B 30
30cc 5112CP-B 5112AP-B 5112UP-B 20
55cc 5113CP-B 5113AP-B n/a 15
LV Barrier
™
ULTRA System
Designed specifically for dispensing low vis-
cosity fluids including solvents, cyanoacrylates
and anaerobics.
Each box contains the same
quantity of ZeroDraft
™
barrels and blue LV
Barriers
™
.
size clear sets/box
10cc 5111LV-B 3 0
