EFD 1000D - Page 6

❻
❶
❺

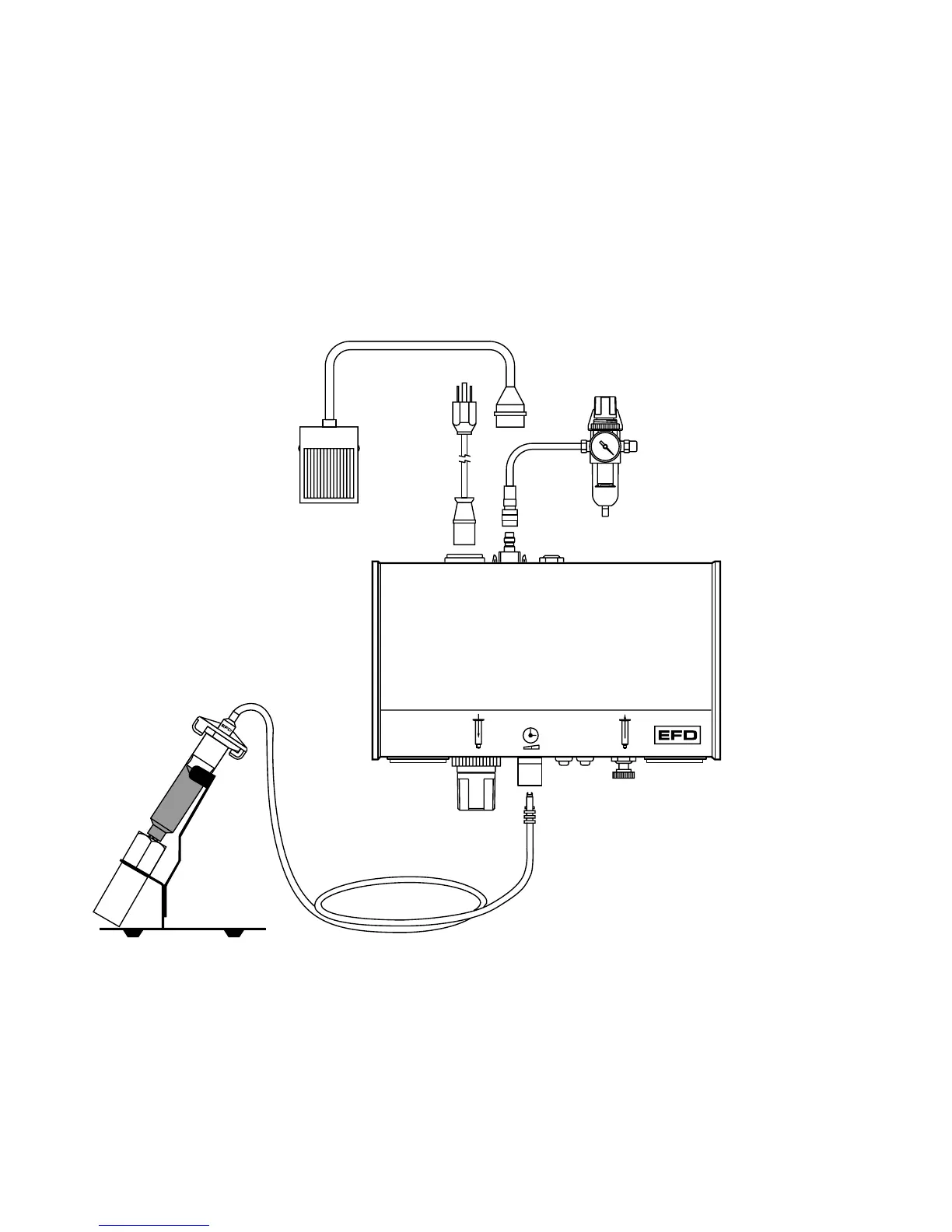

Check voltage label
on dispenser
Plant air, 125 psi maximum to
regulator. Output from regulator
should be a minimum of 80 psi,
maximum of 100 psi.
❷
❸
❹
Blue
test fluid
Male quick-connect,
insert and twist to lock
❼
Power
cord
Air input
hose
Foot pedal
assembly
Adapter
assembly
1000XL
