Diagram 3
Cable 4
Extra cable

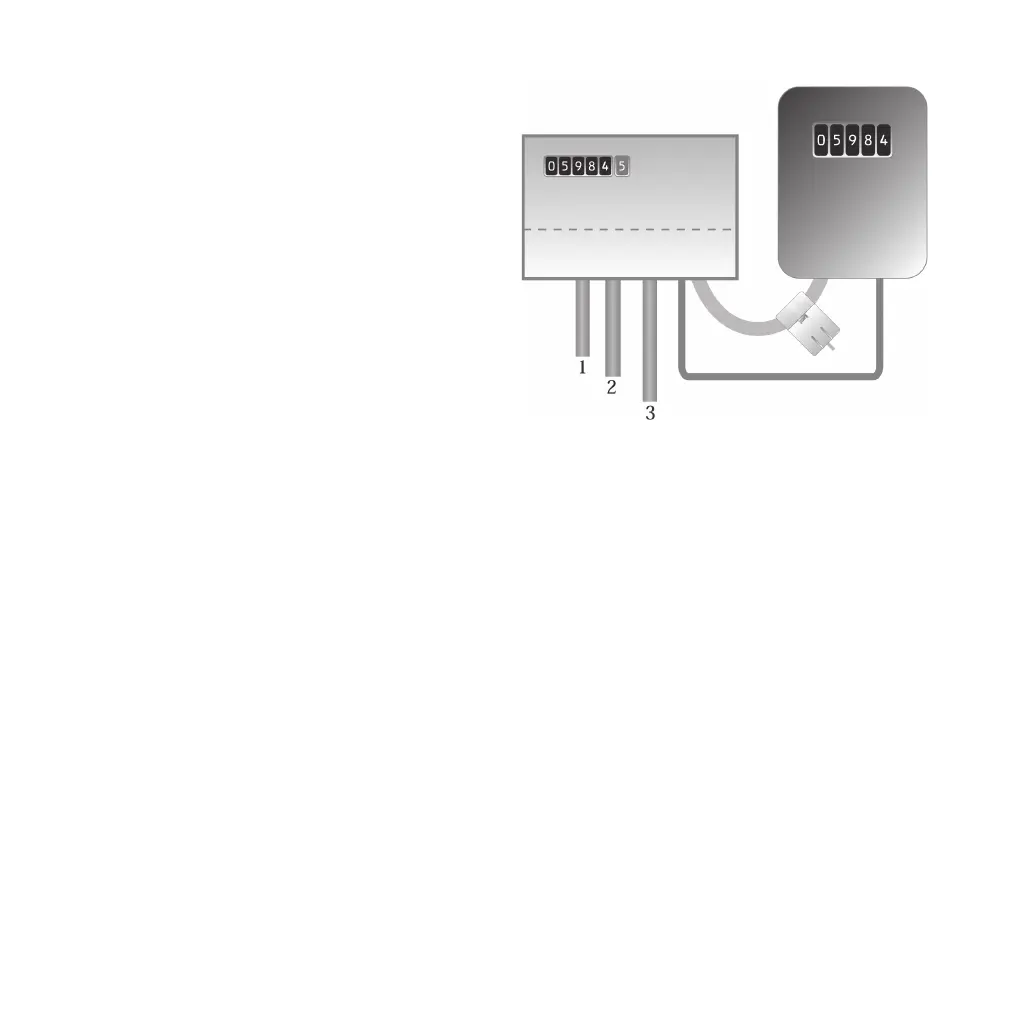

Newer installations normally have two
cables on the underside of the meter. One
of the cables is the earth cable and the
other is the feed cable. The sensor should
be clamped around the feed cable (normally
coloured brown).
If you have a 3-phase supply or if you have
an Economy 7 meter you will need additional
sensors. The extra sensors easily connect to
the socket at the base of the transmitter.
N.B. The energy meter comes with 3 sensors.
SAFETY
You should under no circumstances connect a sensor to a cable if any of the cables leading
to the meter is damaged in any way. No cables need to be cut. Do not clip any cables. Do not
break any seals or such on the meter.
Contact your local electricity supplier if you are at all uncertain about connecting the sensor to
the correct cable.
