Assembly drawings

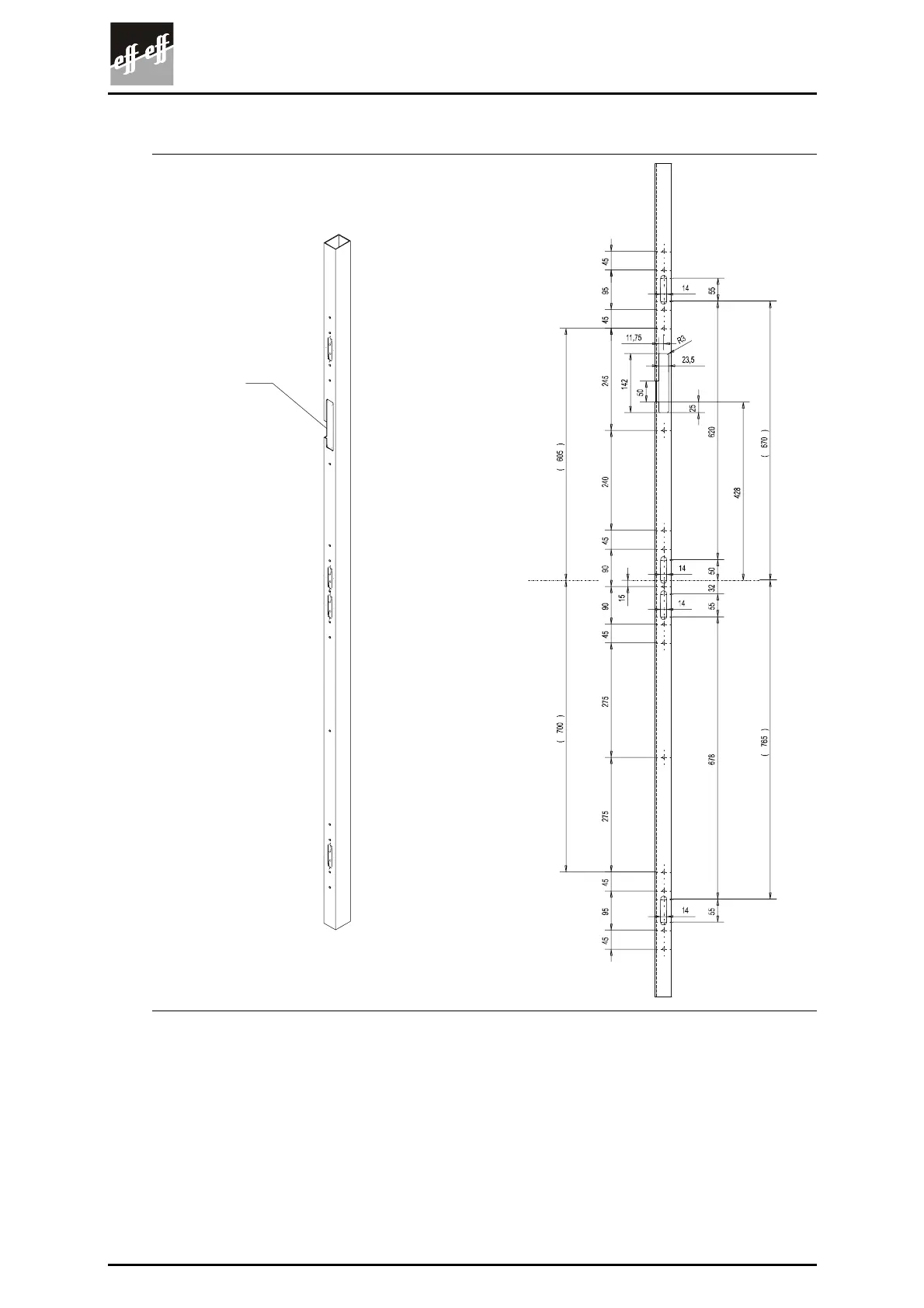

Frame profile section DIN right – Overall layout
Center Follower =1050 mm OFF
Compare Cutout with frame
Page 36 D0038804
