EFF EFF 519 - Definition of the Relay Positions and Leds

Definition of the relay positions and LEDs

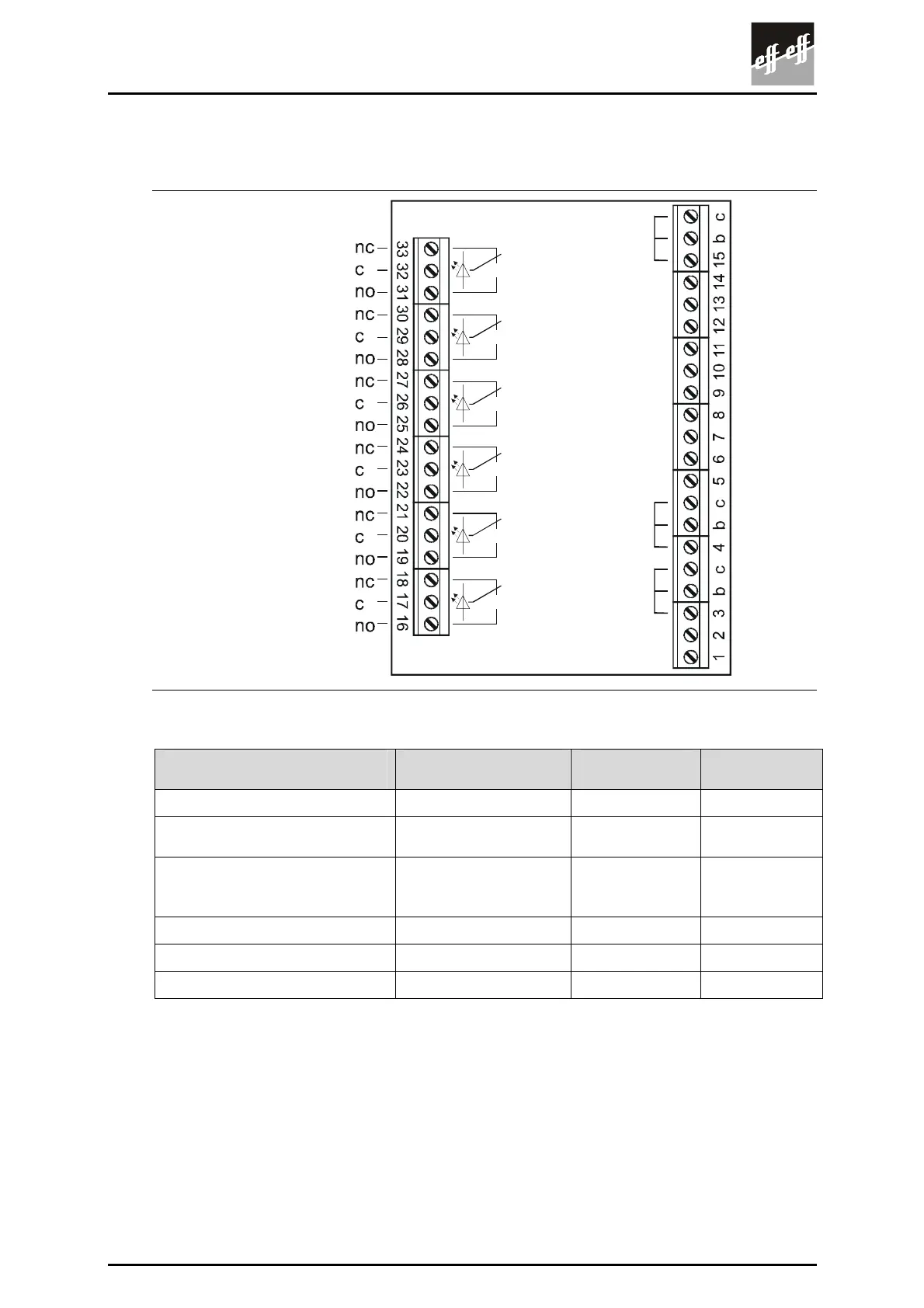

4.2 Definition of the relay positions and LEDs
Alarm
no alarm
drive off
drive on
not approved
approved
open
closed
unlocked
locked
alarm
no alarm
“Alarm
fault”
“Actuation revolving
door drive”
“Condition door
handle/profile
semicylinder”
“Condition door”
“Condition lock”
“Fire alarm”
Event Relay State LED
No alarm/fault Alarm/fault responded illuminated
No actuation of revolving
door drive
Actuation revolving
door drive
dropped not
illuminated
Door handle/profile semi-
cylinder
not actuated
Condition door
handle/profile semi-
cylinder
dropped not
illuminated
Door closed Condition door responded illuminated
Door locked Condition lock responded illuminated
No fire alarm Fire alarm responded illuminated
