Settings – Parameterising
4 UII control module
4.1 Settings – Parameterising

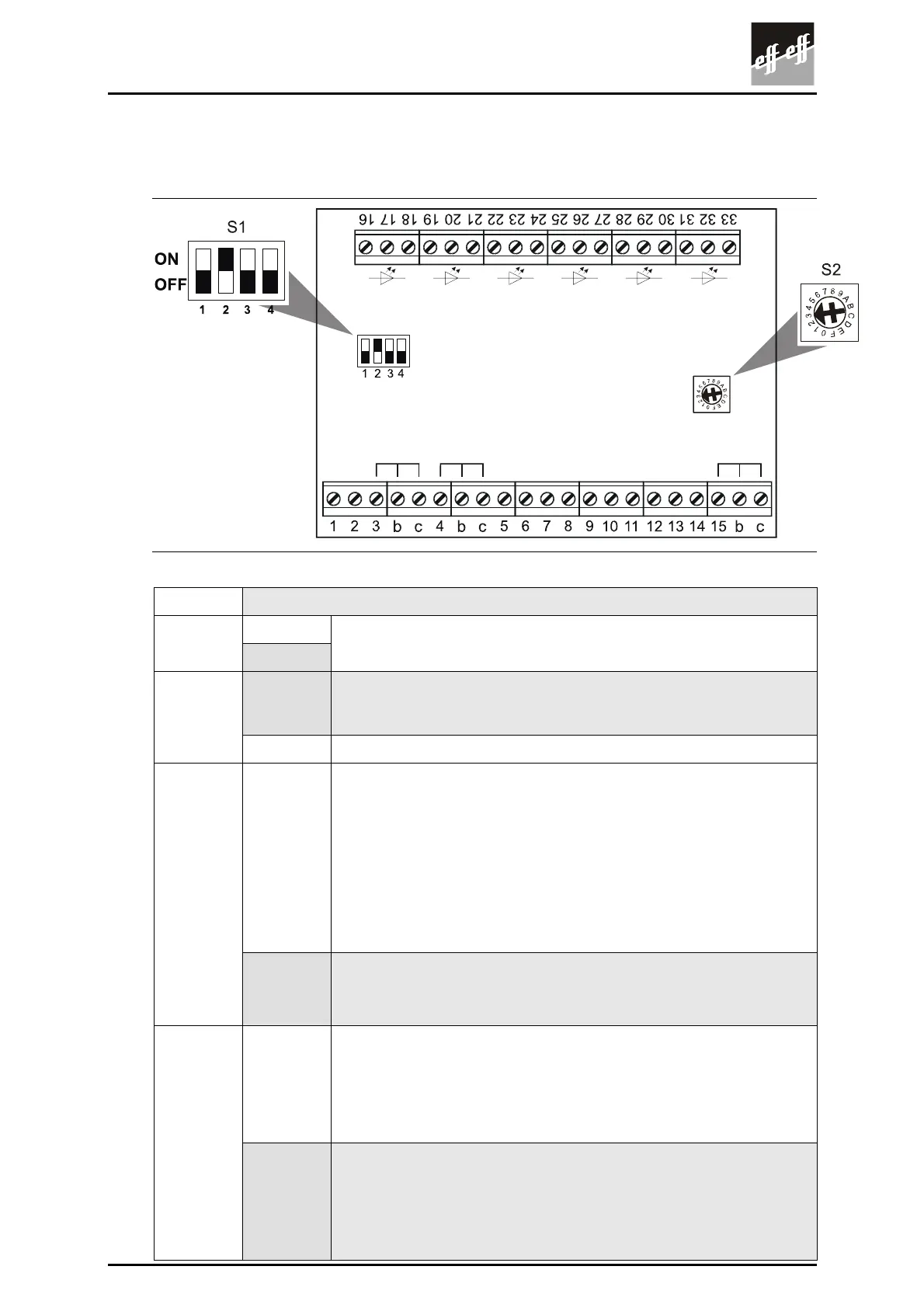

DIP switch S1
Works settings have a grey background
ON 1
OFF
HiO, Group Switch, reserved for HiO extension.
Switch must be on OFF.
ON BUS terminal resistance is switched on.
Note:
The terminal resistance for a device must be switched on in the BUS.
2
OFF BUS terminal resistance is switched off.
ON Function emergency exit.
If you open the door from the inside, the control system will trigger an
alarm after 30 sec.
Alarm: Relay output 31 – 33
After 30 sec. a preliminary alarm sounds for a further 30 sec.
During this time you can close the door and the preliminary alarm is
stopped.
If the door is then open (total of 60 sec.) the alarm remains pending
until you enter the door with authorisation.
3
OFF Function access control.
If you open the door from the inside, the control system will not trigger
an alarm.
ON Revolving door drive: UII controls
unlocking procedure:
All bolts and the lock catch retract, then:
The relay “Actuation revolving door drive” responds.
The relay “Actuation revolving door drive“ drops,
when the door is opened.
4
OFF Revolving door drive: revolving door drive controls
unlocking procedure:
All bolts and the lock catch retract, then:
The relay “Actuation revolving door drive“ responds
The relay “Actuation revolving door drive“ drops,
when the door is closed again.
D0038804 Page 39
