Magnet motor

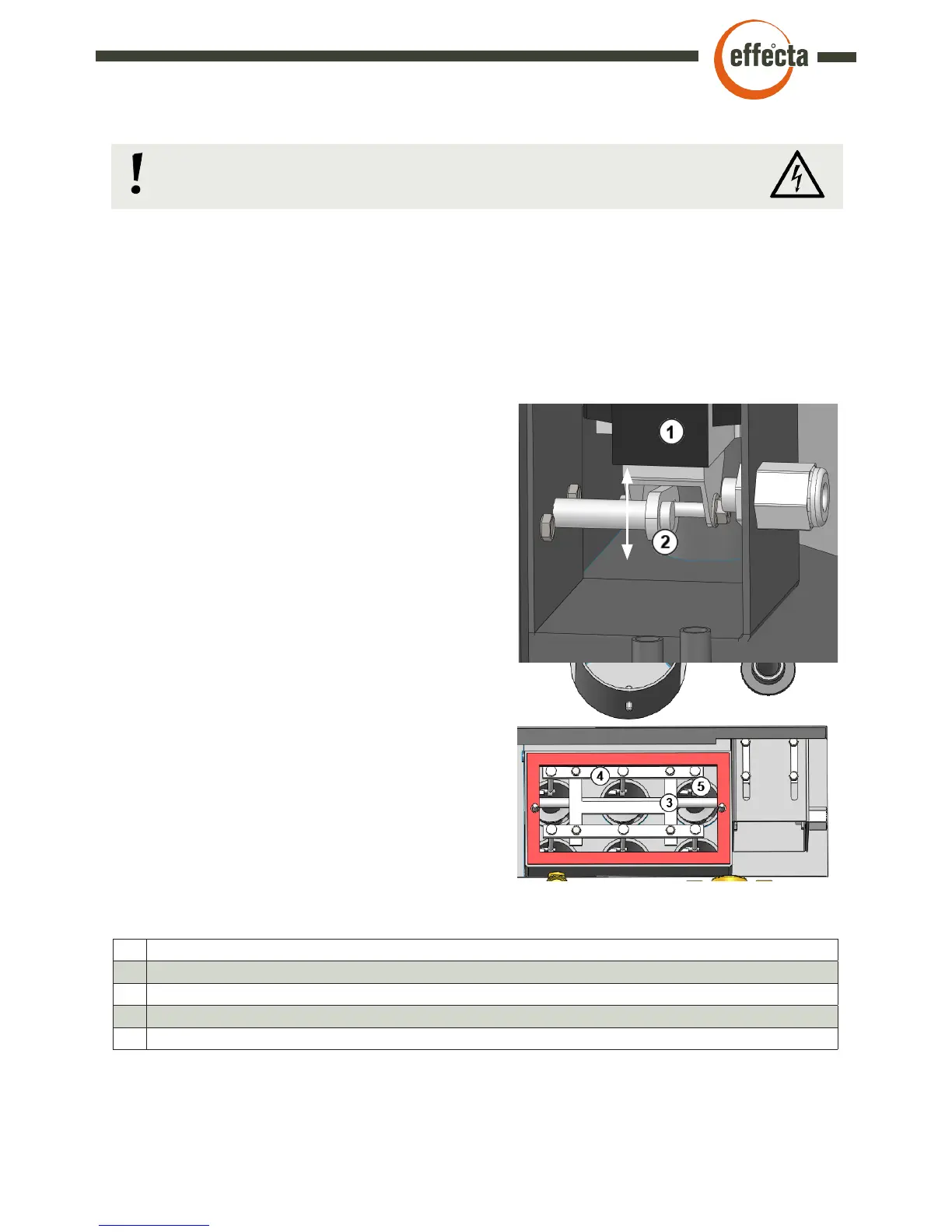

The magnet motor is mounted on the right side of
the soot hatch on the top of the boiler. The magnet
motor flips the turbulators up and down to keep the
tubes clean.
1 Magnet motor
2 Lyfting shaft
3 Flipper
4 Suspension
5 Turbulator
Turbulators
The turbulators in the tube helps reducing the flue
gas temperature and also cleaning the tubes when
pulled up and down.
▀
Automatic cleaning system (optional)
Function and service
Cut the power to the boiler before servicing. The magnet motor is mounted on the boiler to keep
the convective part clean. It is controlled from the menu ”Cleaning” on the control panel. It can
be set to work/not work in different times during the day.
Suspensions
On every suspension there are three turbulators
that is removed when you clean the tubes with a
brush.
Lyfting shaft
The shaft is pulled up by the magnet making the
turbulators also being pulled up.
Flipper
Flips when the magnet motor activates.
There must be no embers/glow in the burner when you start the cleaning
