18
▀

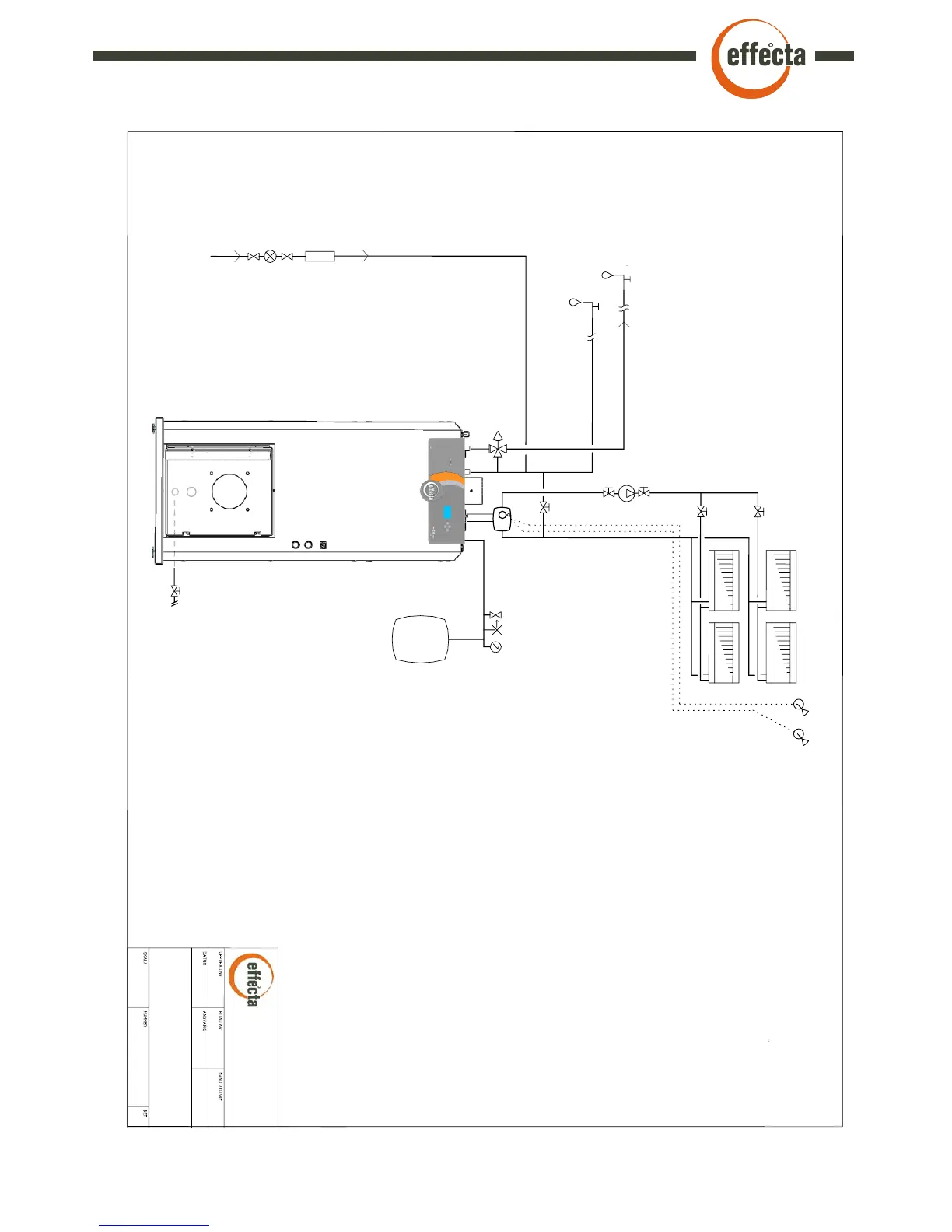

Hydraulic scheme
PRINCIPSCHEMA
EFFECTA PELLETS 222 MED VARMVATTENKRETS
OCH RADIATORER.
EFFECTA AB
Västra Rågdalsvägen 21 - 43496 kungsbacka
Tel: 0300-22320 - Fax: 0300-22395
E-post:info@effecta.se - www.effecta.se
012-06-20
V50-05-93
E.A
EXPLANATIONS
8.
1. ROOM THERMOSTAT/OUTDOOR THERMOSTAT/BOTH
2. RADIATOR VALVE
3. RADIATOR PUMP
4. REFILL
5. SHUNTVALVE WITH MOTOR
6. MIXING VALVE
7. EXPANSION VESSEL WITH SAFETY VALVE1,5BAR
8. DRAIN (PLUGS)
9. DIRT FILTER
RADIATORS
3.
7.
4.
5.
2.
1.
2.
WATER MEASUREMENT
DOMESTIC WATER
9.
6.
PRINCIPAL SCHEME
EFFECTA 222 WITH HOT WATER CIRCUIT
AND RADIATORS
HOT
COLD
