1 Temperature control 6 Flow control valve
2 Hot water out 7 Mixing valve
3 Cold water 8 Vent pipe
4 Hot water 9 Safety valve
5 Cold water in 10 Overflow pipe
After about 3 tons the tubes should be cleaned ma-
nually with the brush, for the boiler to maintain a high
efficiency. Follow the instructions below.
Start by removing the lid on the top of the boiler
(1). Then loosen the two nuts(2) and remove the
hatch(3). Lift up the two suspensions with turbula-
tors(4).
Clean the tubes with the brush
The ash compartment(5) is normally cleaned after
about 1,5 tons consumption of pellets.
Note that there can be glow a long time after
burning

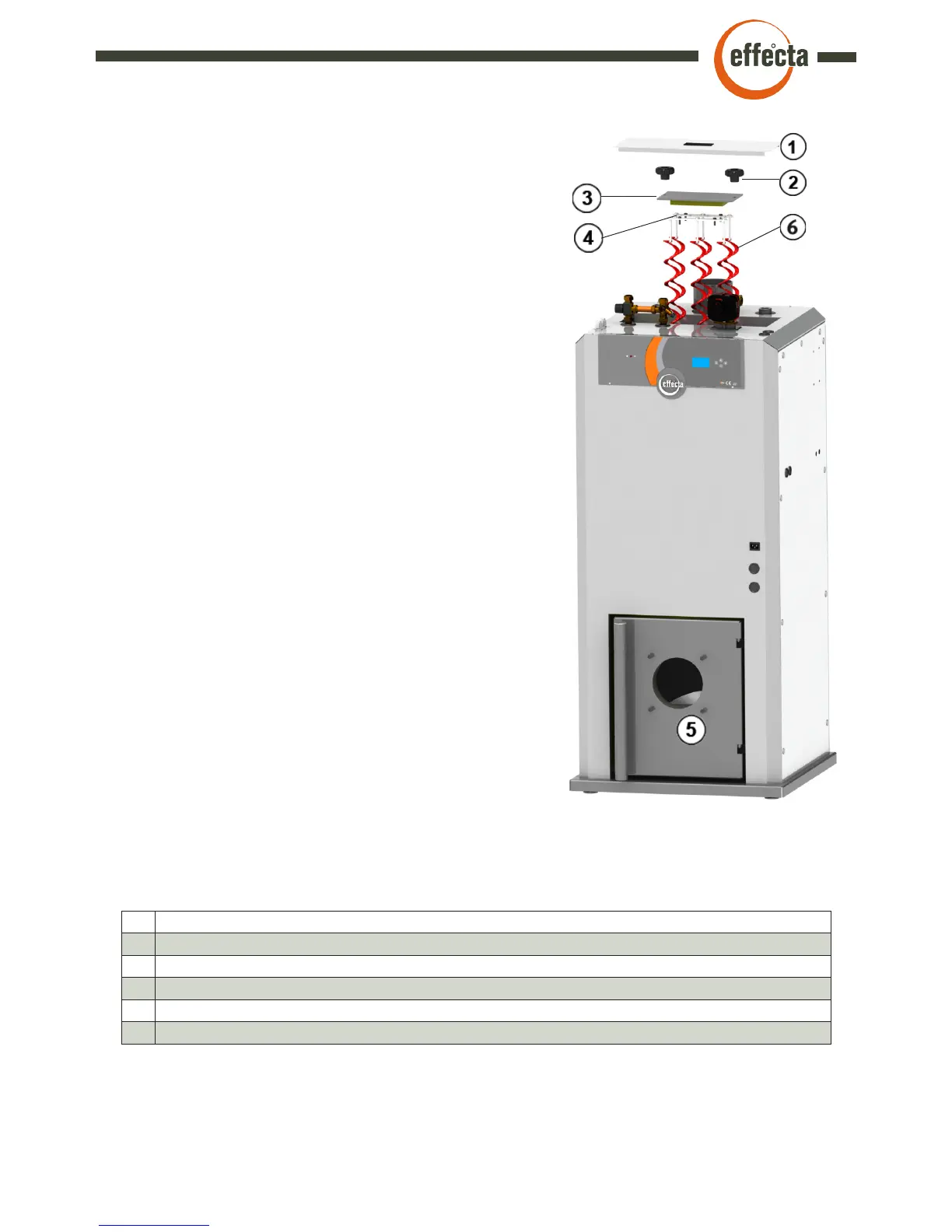

1 Lid
2 Nuts
3 Soot hatch
4 Suspension turbulators
5 Ashbox (inside of the door)
6 Turbulators
▀
Cleaning
