UPS MKD2000/3000 Manual
The protective earth conductor must always be connected!
Please always observe the input voltage shown on the identification label or in
the technical data of this manual.

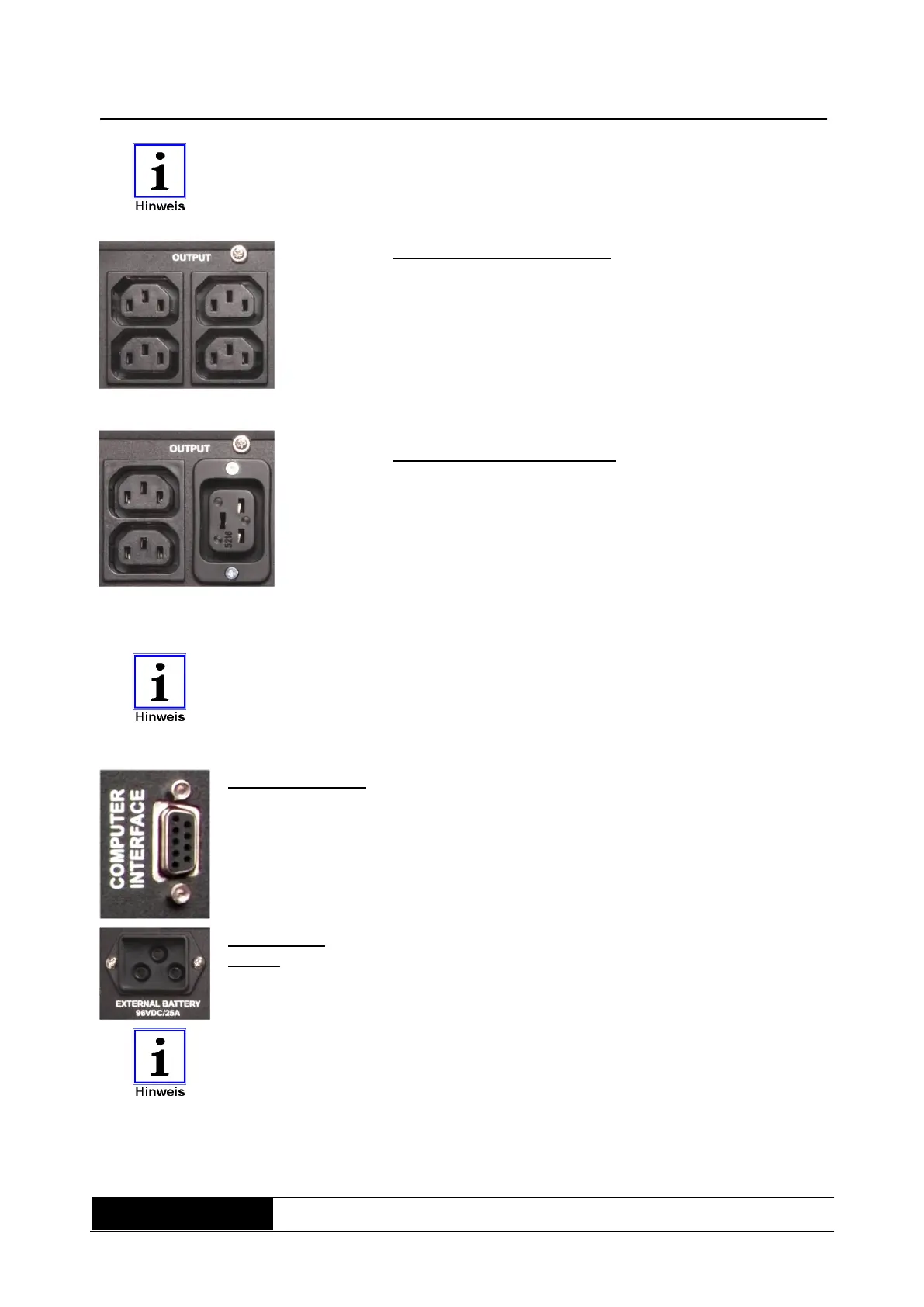

c) UPS output MKD 2000RM
4 x Nema socket IEC 10A for mains voltage
c) UPS output MKD 3000 RM
Left hand: 2 x Nema socket IEC 10A
(Automatic circuit breaker 10A)
and
Right hand: 1 x Nema socket IEC 16A
The PE (protective earthing conductor) has to be connected !
Please always respect the indicated max. output load of the device, which is
indicated on the identification-label or the technical information in this manual.
d) Communication
(fuse D-Sub 9-jack)
Via the serial interface (RS232), all of the relevant UPS
data are transmitted to an appropriate primary control
unit (e.g. PC). In addition, a defined shutdown signal can
be sent to the UPS. Suitable software packages are
available for this (see Software chapter).
This socket interlinks the UPS with an external battery
pack. The confectioning has to be made with the
supplied cord and during the UPS is switched-off. Get
more information from the manual oft the battery pack.
As a precaution always compare before connectioning, the quoted voltage on
the UPS as well as on the battery pack. Those values have to comply with
each other.
