Device Description of UPS
MTD Series
27
1 Communication interface
2 UPS output
3 Mains input
4 Input over-voltage protection (RJ 45)
5 Output over-voltage protection (RJ 45)
6 Circuit breaker for mains input
7 Battery plug (1500L and 2000L 36 V)
8 Connection for remote control

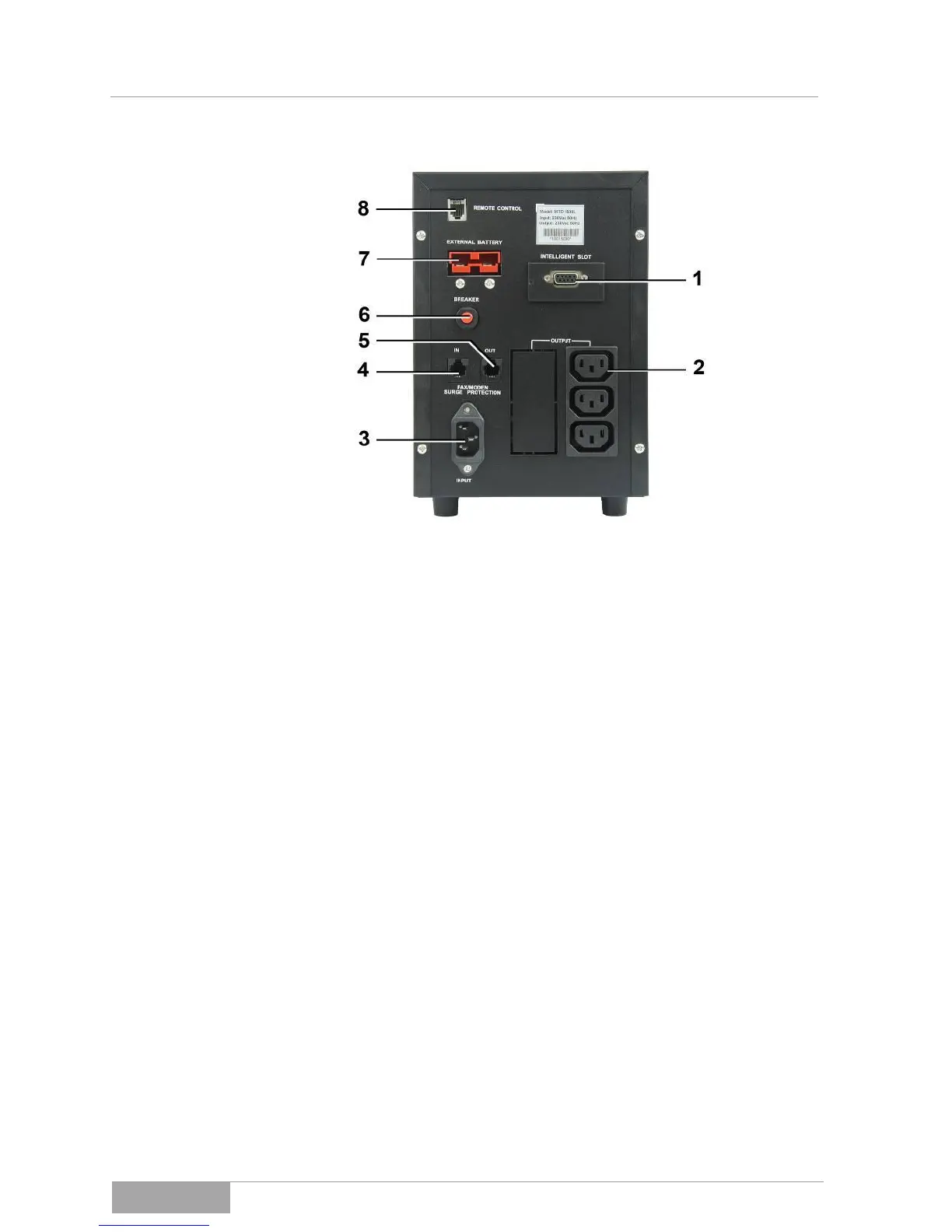

Fig. 3-2 - 3 Back view of MTD 1500L, 2000L
