Wizard Up30 M Rev. 0 01/02/2018
Pag. 7

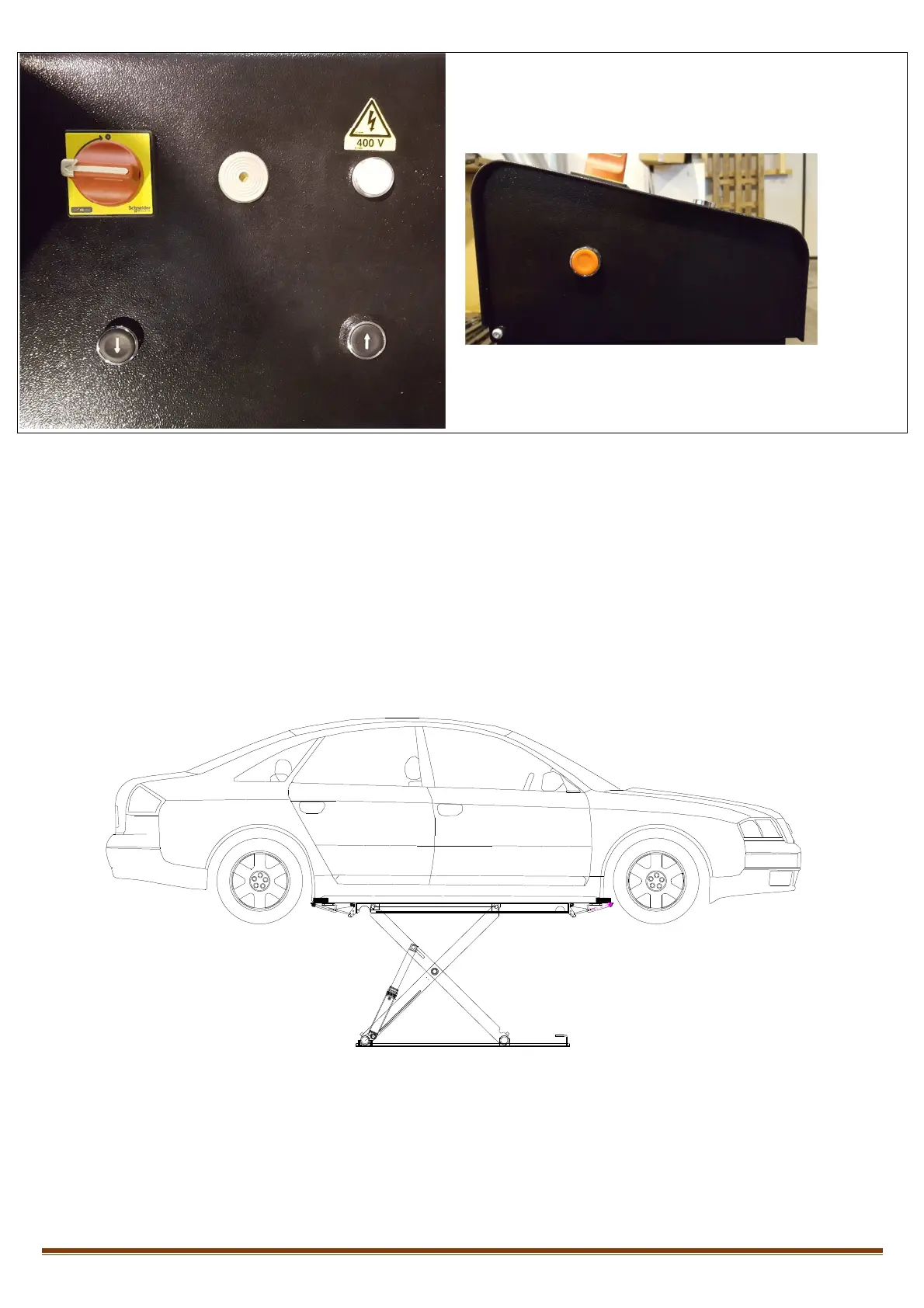

1. Master switch: The switch can be padlocked to prevent the use of the lift during the maintenance.
2. Beeper: signals with a high pitch the descent of the lift above the safety height.
3. Led: indicates the operation of the lift.
4. Lowering button: pushing it, the solenoid valves that actuate the lowering of the lift gets activated.
5. Lifting button: pushing it, the mechanisms actuating the lifting are activated.
6. Limit switch exclusion button: pressing it excludes the electric limit switch.
Wizard UP30M are suitable for lifting all types of cars and vans with a weight not exceeding 3000 kg.
The vehicle is gripped on the chassis by 4 rubber pads (supplied), leaving the wheels of the vehicle free.
1
2
4
5
