3.1 – TECHNICAL FEATURES

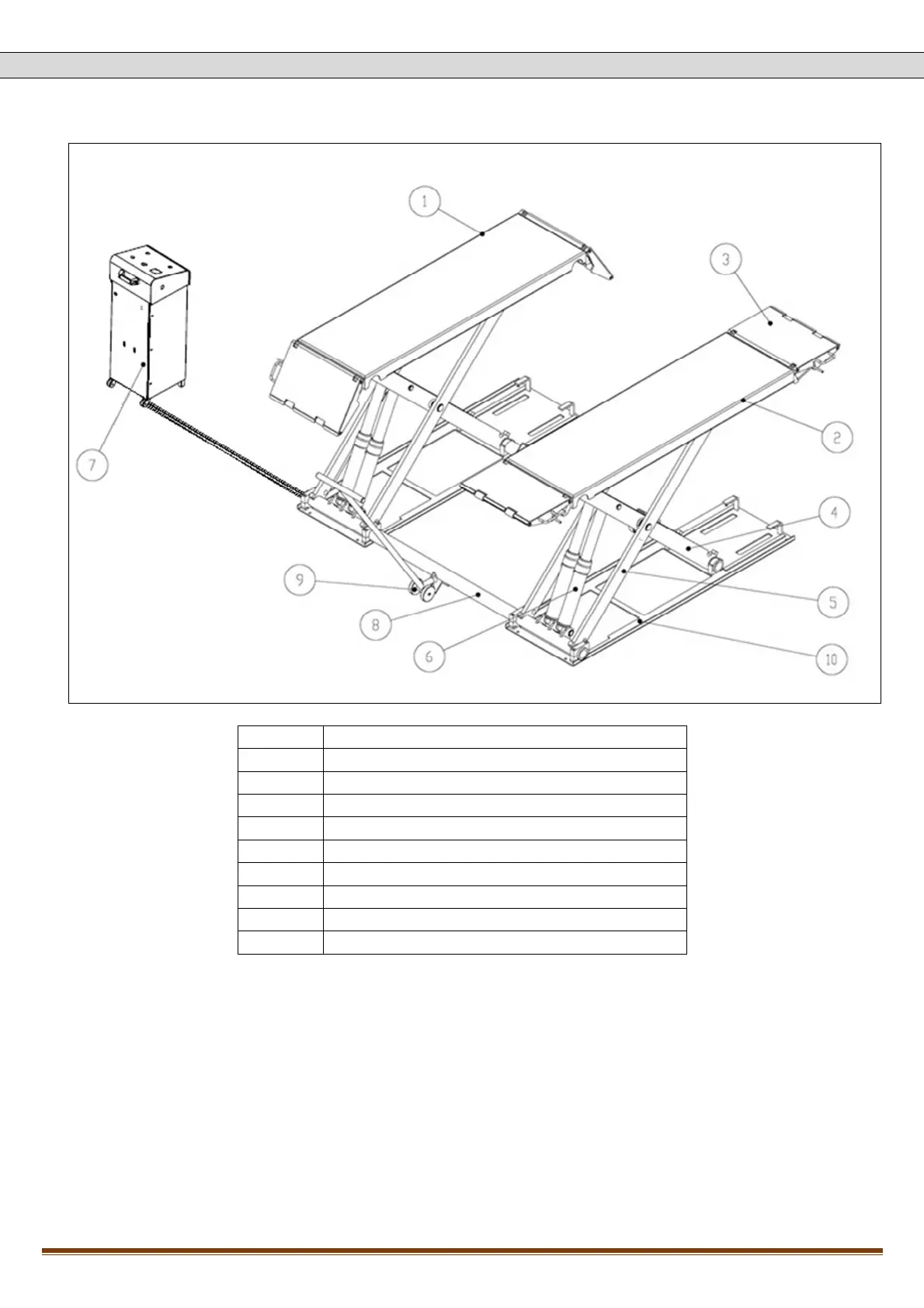

Wizard UP30M lifts are composed as below:
1 P1 PLATFORM
2 P2 PLATFORM
3 RISING RAMPS
4 INTERNAL SCISSOR
5 EXTERNAL SCISSOR
6 HYDRAULIC CYLINDERS
7 CONTROL UNIT
8 TORSION BAR
9 WHEELS
10 BASE
SCISSORS - PLATFORMS:
The lift arms are made from 80x20 steel profiles, while the platform is formed by a shaped steel sheet with
reinforcement uprights and connected to the arms with steel pins in fixed points and with sliding blocks in moving points. All the
articulations of the lifting system have maintenance-free self-lubricating bushings.
CONTROL UNIT: It consists of a metal box containing the oil tank and the pump-motor unit, the solenoid valve group and the connections
for the electric and hydraulic power supplies. The controls are housed on the console, all operate under 24 V voltage and are of the "man
present" type. The commands are shown in the following pictures:
