Effer DMU 2000 - Interpreting Panel Indicators for Faults

Electronic device DMU2000 - DMU3000 - DMU3000 PLUS
THE POWER OF PERFORMANCE
40
Electronic device DMU2000 - DMU3000 - DMU3000 PLUS
LIST:
FLASHING SLOWLY
FLASHING QUICKLY
LIGHTED UP PERMANENTLY
4
5
6
7
1
3
2
B
A
D
Biiiiiiiip
Bip - Bip - Bip - Bip
CONTINUOUS ACOUSTIC ALARM
INTERMITTENT QUICK ACOUSTIC ALARM
16. DMU Diagnostics - Trouble shooting

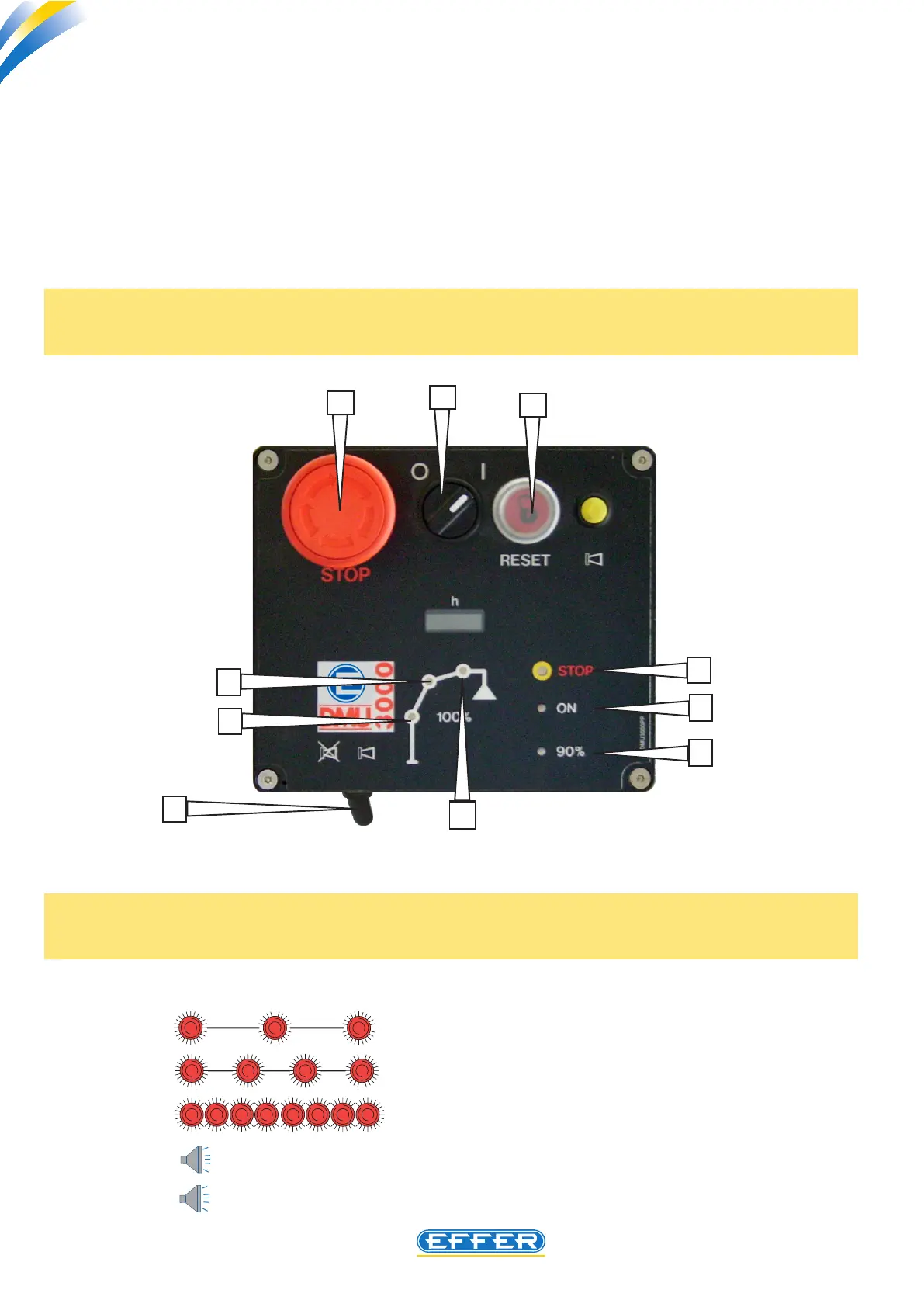

In case a fault is in the DMU system, the fault may be identied if you look at the lights that light up on
the DMU main panel, see which ones are ashing and observe how they ash, and the sound emitted.
Here are some indications from main panel relating to faults.
The nal part of the chapter also reports some indications of work situations which may be provided
by main panel.
Note: During the diagnostic work it is important that the acoustic alarm is not disabled to have
an indication on the exact type of sound.
NOTE: The LED light that ashes on the DMU main panel shows the position of crane boom where
the failure is.
