4.7 Installing and connecting the operating panel
The operating panel displays the current status of the device and is used
to operate the EFOY Pro fuel cell. Mount the operating panel in an easily
accessible location.
4.7.1 Flush mounting
INFO:
Ensure that there is sufficient space
for the electrical components behind
the opening.

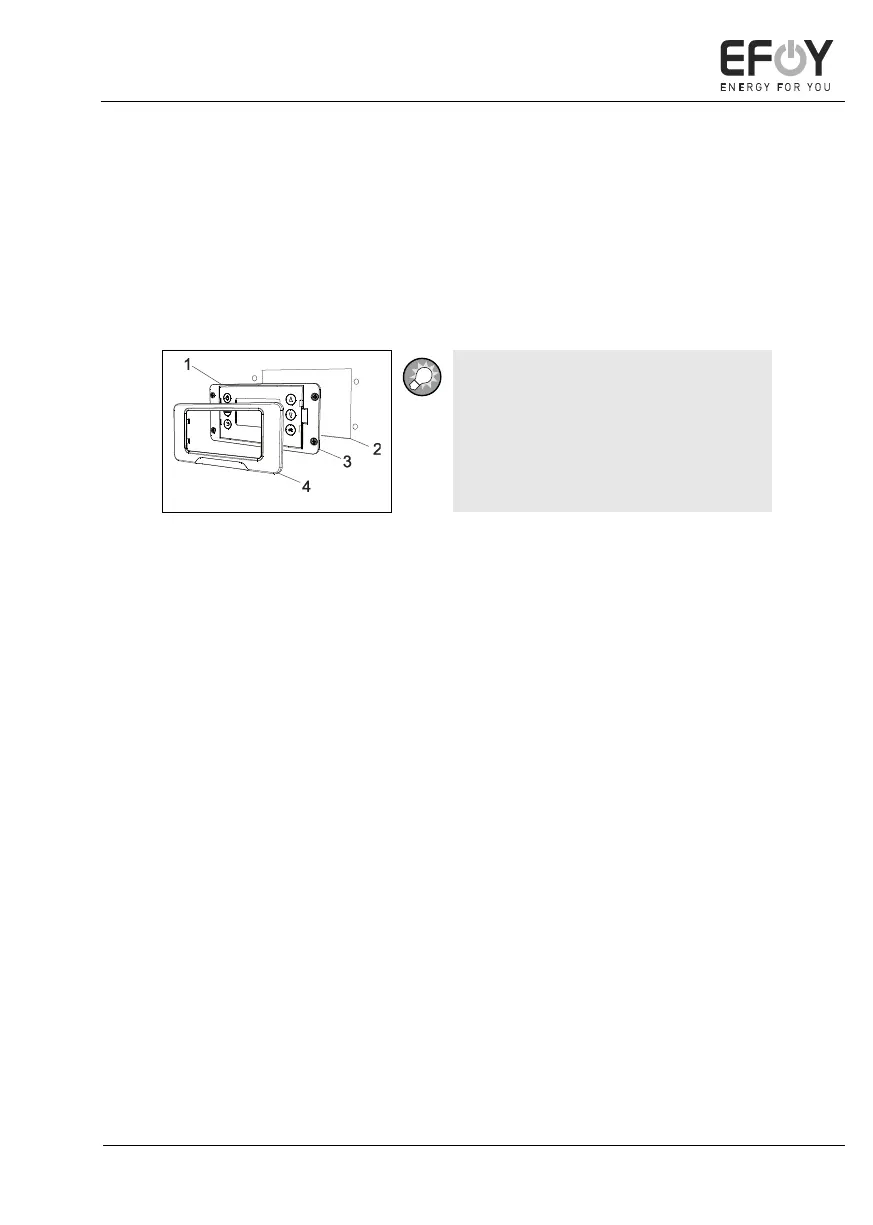

1. Operating panel
2. Opening
3. Screws
4. Frame
1. Use the drilling and sawing templates
provided for flush mounting.
2. Use a drill to start the opening.
3. Use a jigsaw to saw an opening for the
flush mounting.
4. Connect the operating panel to the
data line DL2 supplied.
5. Secure the operating panel with four
suitable screws.
6. Then attach the frame to the operating
panel.
