EGR CANOPY REMOTE LOCKING KIT - Final Checks and Refitting Covers; Verifying Latch Operation and Adjustment; Refitting Canopy Covers

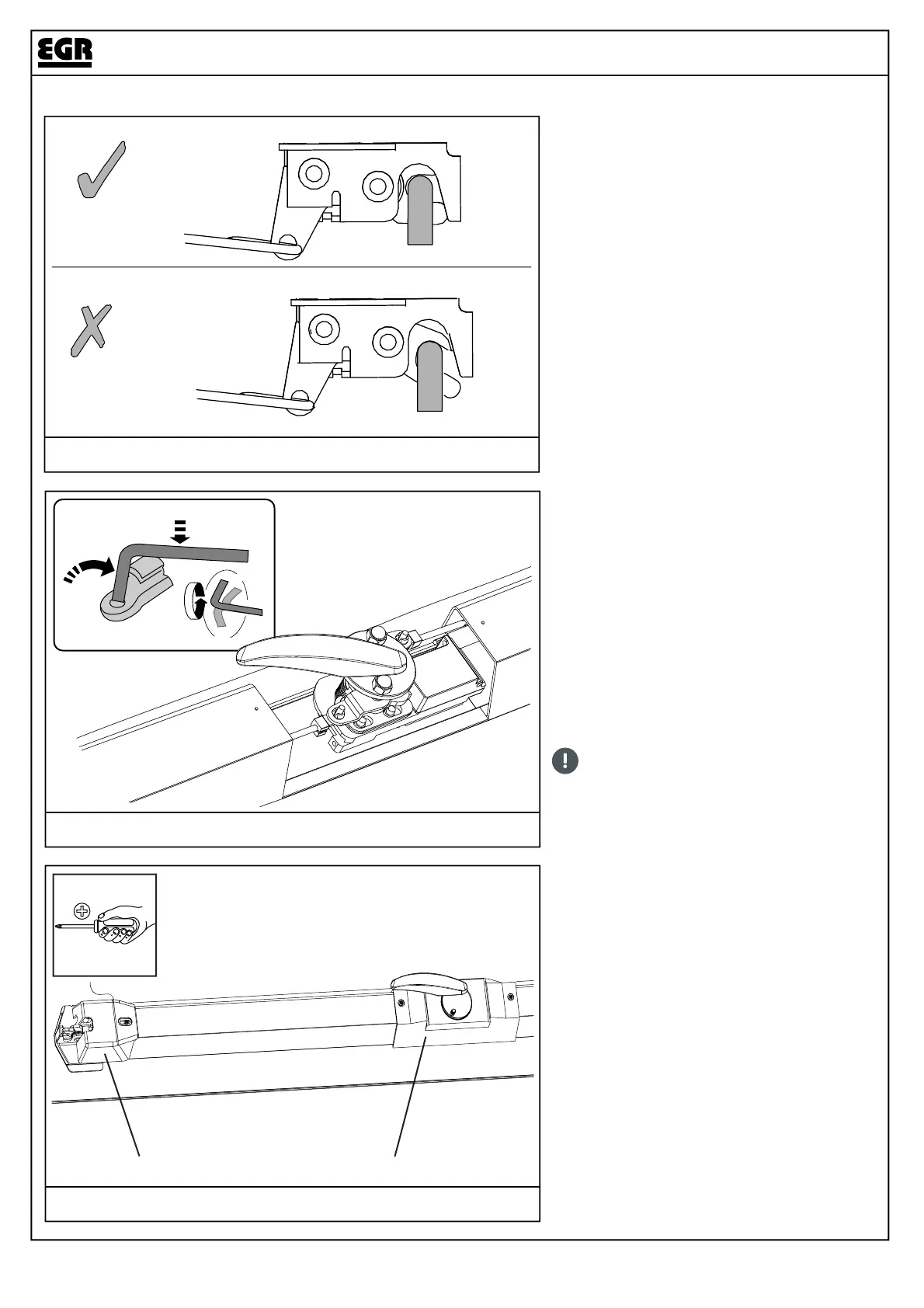

Diagram: 22 - CHECK LATCH
22.
Diagram: 23 - CHECK HANDLE OPERATION
23.
Page 10 of 1021/03/17
Diagram: 24 - RW-FIT COVERS
24.
CP0253
Important: Check the LH & RH latches
release (’click’) simultaneously. If not
adjust the pull rod on one side until
the latches release at the same time.
Ensure the latch reaches 2nd stage position,
as shown and the striker is central inside the
latch.
Fit the handle to the lock.
Refit the latch covers and secure with one
Phillips head screws.
Check window handle operation. This can be
checked with the door open, manually depress
latches and activate handle. Handle should
activate latches at 2/3 of handle travel
simultaneously for LHS and RHS. If required,
adjust pull rods as shown:
Spinning clockwise - shorten.
Spinning anticlockwise - lengthen.
Refit the lock cover and secure with two
Phillips head screws.
2ND STAGE
1ST STAGE
LATCH COVER LOCK COVER
REMOTE LOCKING KIT FOR CANOPY
