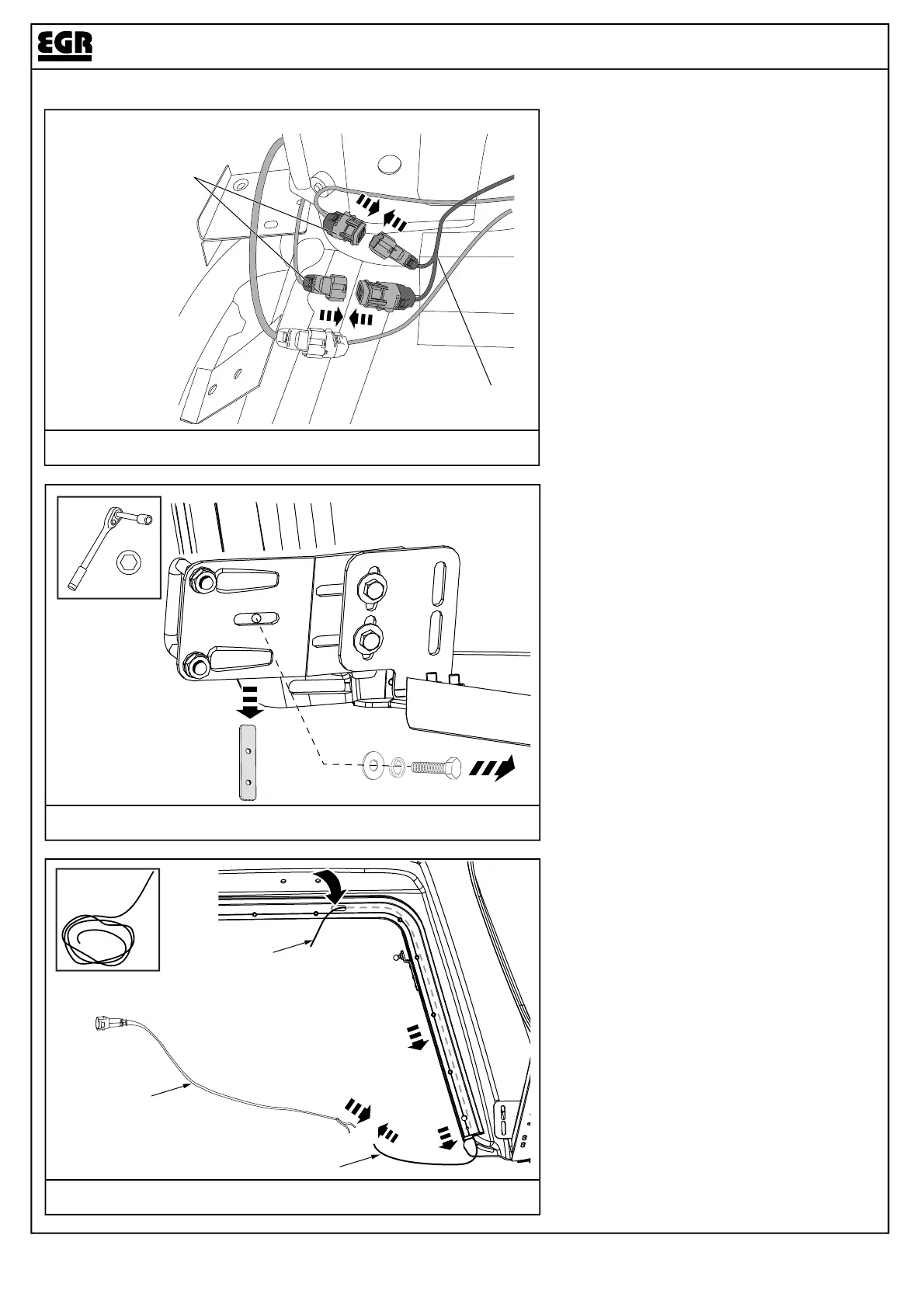

EGR CANOPY REMOTE LOCKING KIT - Vehicle Harness Connection and Canopy Wiring; Connecting Vehicle Harness; Canopy Striker Plate and Loom Feed

Diagram: 4 - CONNECT VEHICLE HARNESS
4.
Diagram: 5 - REMOVE STRIKER PLATE
5.
Page 4 of 1021/03/17
Diagram: 6 - FEED LOOM INTO FRAME
6.
CP0253
Connect the vehicle harness (LOOM0127)
connectors to the previously disconnected
connectors as shown.
Inside the canopy feed a draw wire into the
slotted hole in the door frame. Draw wire should
come out at the bottom end of the frame
(as shown).
Connect the LOOM0127B blade terminals end
to the draw wire and pull up the window frame
to the slotted hole at the top.
Remove the draw wire.
On the passenger side of the canopy, remove
the M6 bolt and the threaded plate inside the
window frame holding the striker bracket to the
window frame.
EXISTING VEHICLE
HARNESS
CONNECTORS
LOOM0127A
DRAW WIRE
DRAW WIRE
LOOM0127B
REMOTE LOCKING KIT FOR CANOPY
